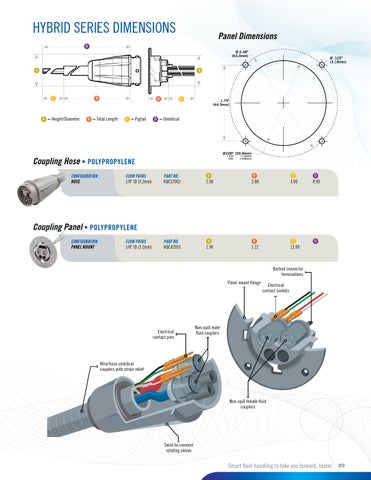

HYBRID SERIES DIMENSIONS
Panel Dimensions
D Ø 2.48" (63.0mm)
A
Ø .125" (3.18mm)
A
C
A
B
= Height/Diameter
B
B
= Total Length
C
= Pigtail
D
C
1.75" (44.5mm)
= Umbilical
Ø 2.00" (50.8mm) +.010 -.000
Coupling Hose • POLYPROPYLENE CONFIGURATION HOSE
FLOW PATHS 1/8" ID (3.2mm)
PART NO. HQC17002
A
2.00
(+.25mm) (-.000mm)
B
C
2.80
3.00
D
8.00
Coupling Panel • POLYPROPYLENE CONFIGURATION PANEL MOUNT
FLOW PATHS 1/8" ID (3.2mm)
PART NO. HQC42001
A
1.96
B
C
1.12
D
12.00
Barbed connector terminations Panel mount flange
Electrical contact pins
Electrical contact sockets
Non-spill male fluid couplers
Wire/hose umbilical couplers with strain relief
Non-spill female fluid couplers
Twist-to-connect rotating sleeve
