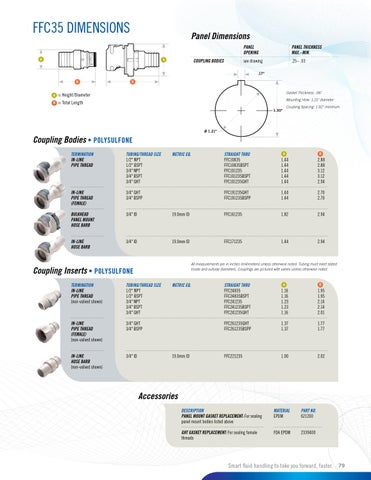

FFC35 DIMENSIONS
Panel Dimensions
A
A
COUPLING BODIES
PANEL OPENING
PANEL THICKNESS MAX.–MIN.
see drawing
.25– .03
.17" B
A
= Height/Diameter
B
= Total Length
B Gasket Thickness: .06" Mounting Hole: 1.21" diameter Coupling Spacing: 1.92" minimum
1.30"
Ø 1.21"
Coupling Bodies • P0LYSULFONE
TERMINATION IN-LINE PIPE THREAD
TUBING/THREAD SIZE METRIC EQ. 1/2" NPT 1/2" BSPT 3/4" NPT 3/4" BSPT 3/4" GHT
STRAIGHT THRU FFC10835 FFC10835BSPT FFC101235 FFC101235BSPT FFC101235GHT
1.44 1.44 1.44 1.44 1.44
2.88 2.88 3.12 3.12 2.94
IN-LINE PIPE THREAD (FEMALE)
3/4" GHT 3/4" BSPP
FFC191235GHT FFC191235BSPP
1.44 1.44
2.70 2.70
BULKHEAD PANEL MOUNT HOSE BARB
3/4" ID
19.0mm ID
FFC161235
1.82
2.94
IN-LINE HOSE BARB
3/4" ID
19.0mm ID
FFC171235
1.44
2.94
A
B
All measurements are in inches (millimeters) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.
Coupling Inserts • P0LYSULFONE
TERMINATION IN-LINE PIPE THREAD (non-valved shown)
TUBING/THREAD SIZE METRIC EQ. 1/2" NPT 1/2" BSPT 3/4" NPT 3/4" BSPT 3/4" GHT
STRAIGHT THRU FFC24835 FFC24835BSPT FFC241235 FFC241235BSPT FFC241235GHT
1.16 1.16 1.23 1.23 1.16
1.95 1.95 2.14 2.14 2.01
IN-LINE PIPE THREAD (FEMALE) (non-valved shown)
3/4" GHT 3/4" BSPP
FFC261235GHT FFC261235BSPP
1.37 1.37
1.77 1.77
IN-LINE HOSE BARB (non-valved shown)
3/4" ID
FFC221235
1.00
2.02
19.0mm ID
A
B
Accessories DESCRIPTION PANEL MOUNT GASKET REPLACEMENT: For sealing panel mount bodies listed above
MATERIAL PART NO. EPDM 621200
GHT GASKET REPLACEMENT: For sealing female threads
FDA EPDM
2339400
