HydraSleeves

How To Know Which HydraSleeve Is Right For You?

1. Choose a 2" or 4" Hydrasleeve based on well size

2. Choose an armoured (tougher) or standard HydraSleeve

3. Choose the volume of sample you would like

The HydraSleeve No-Purge Groundwater Sampler is a new way to collect discrete interval water samples. With no need to purge or dispose of purge water, this groundwater sampler reduces your costs by saving time.

Features

• Long or short term groundwater monitoring

• Samples low-yield wells

• Determines dissolved contaminant fraction

• Samples crooked or constricted wells

• Vertically defines contaminant concentrations or composites sampler from 10 ft screen interval

Fun Facts

• HydraSleeves require weights (top & bottom) to deploy properly.

• Plan ahead - HydraSleeves require equilibration time.

• Sampson™ groundwater filters can be used with HydaSleeves.

Sampson™ & Waterra Groundwater Inline Filters

These filters are designed to remove the suspended particulate from groundwater samples so the dissolved metal content can be determined. Simply plug a filter into your pump tubing or bailer. Run the water through the inline disposable filter and capture the flow in a sample vial.

Features

• Filter media is polyethersulfone, body is polyethylene and media support is polypropylene

• Excellent particle retention above the target micron size range

• Maximum utility gained from the media, even with the most turbid samples

• Built in compound 3/8" threaded nipple and 1/2" barbed inlet

• PFAS, PFOS & PFOA free

• ISO 9001:2015 compliant

How To Filter Groundwater For Metal Analysis Using A 0.45 µm Filter.

• Complete the pre-sampling protocol (eg. purging 3 well volumes or low flow sampling or specified protocol)

• Insert a Sampson™ or Waterra 0.45 µm filter into the well tubing

• Continue pumping

• Direct the flow from the discharge outlet of the filter into your sampling vessel

• Use a new filter for each sample

Excellent For Developing, Surging & Cleaning Out Groundwater Monitoring Wells Surge Blocks

Designed to work with the Waterra pump system, surge blocks are tough thermoplastic donuts that press fit onto either a standard flow system WA-D-25 footvalve to accommodate 2" wells or a high flow system WA-D-32 footvalve to accommodate 4" wells. The surge block is designed to free up silt and sediment in the sand pack and screen, and breaks down bridging, drawing these particles into the well and then removes this material from the well.

Features

• Effectively increases the outside diameter of the WA-D-25 footvalve to 1 7/8" in 2" wells & the WA-D-32 footvalve to 3 7/8" in 4" wells

• Reduces the annular gap between the valve and the inside of the well screen to approx. 1/16"

• Significant increase in the surging action of the footvalve - surge block combo

Best Seller For Purging & Sampling Groundwater From A Well!

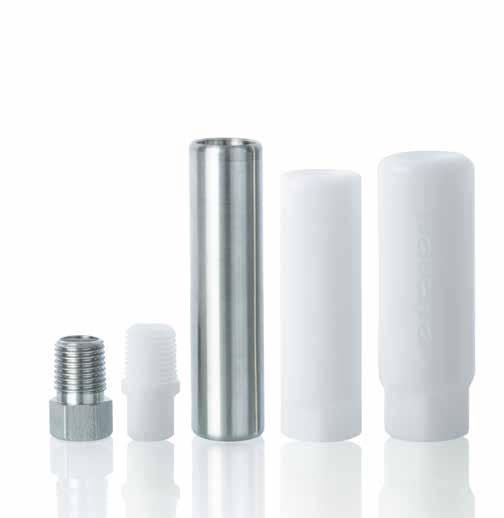

Waterra Inertial Pumps - Best Known As A "Footvalve"

Micro Flow System Low Flow System Standard Flow System High Flow System

Applications

• Micro wells

• Sampling damaged wells

• Custom installations

• For use with direct push technology

• Hand operation

Applications

• Sampling piezometers

• Sampling damaged wells

• Custom installations

• Hand operation

Applications

• Most popular system

• Best cost/performance ratio

• Hand operation or automatic operation

Applications

• Deep well sampling

• Large diameter wells

• Well development

• High flow rates

• Sediment laden wells

*200 ft & 500 ft rolls of tubing also available

Footvalve Wrench

Features

• Ensures that valves are securely attached to the tubing

• Eliminates lost valves down the well

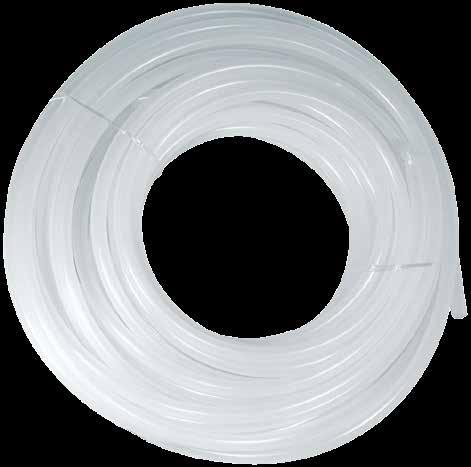

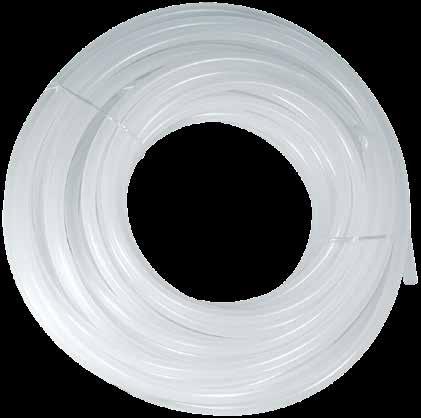

High & Low Density Polyethylene Tubing – Best Known As HDPE & LDPE Tubing

• Produced from virgin polyethylene resins

• Does not contain any regrind product

• Does not contain any UV stabilizers

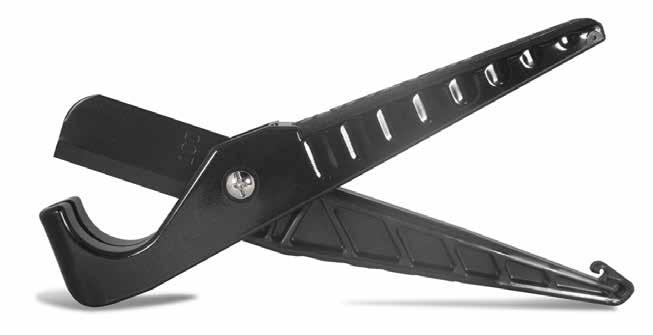

Tubing Cutter

Features

• Faster & safer than a utility knife

• Rotating/rocking motion produces straight, clean cuts

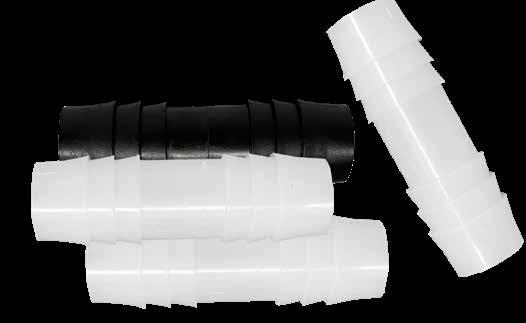

Connectors-Barbed

Features

• Inexpensive accessory to connect one tube to another

• Available in Black HDPE or Nylon 6

• Available in different sizes

Reducing Connectors

Features

• Connecting on a smaller diameter in an inexpensive way

• Available in Black HDPE or Nylon 6

• Available in different sizes

• Individually poly bagged and are stored in sealed boxes, protected from UV light sources Inexpensive

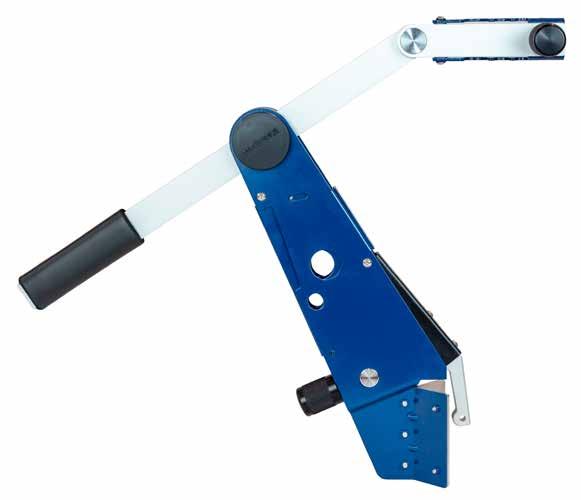

Lever Arm Manual Tubing Actuator

Designed to provide operators with a convenient, portable mechanism which would provide some mechanical advantage when manually operating the Waterra Pump as well as facilitating the collection of samples with this system. An above ground well completion is required in order to use this Lever Arm Manual Tubing Actuator.

Features

• One handed operation making sample collection easier because it supports the discharge end of the pump’s tubing

• Suitable for use with Low, Standard and High Flow Waterra Pumping Systems

• Fully adjustable and adapts to almost any size casing or protective well casing

• Hinged tubing clamp which helps prevent pump tubing from abrading against well casing

• Reduces fatigue that one may experience when required to purge large volumes from wells

Best Seller! High Performance Automation

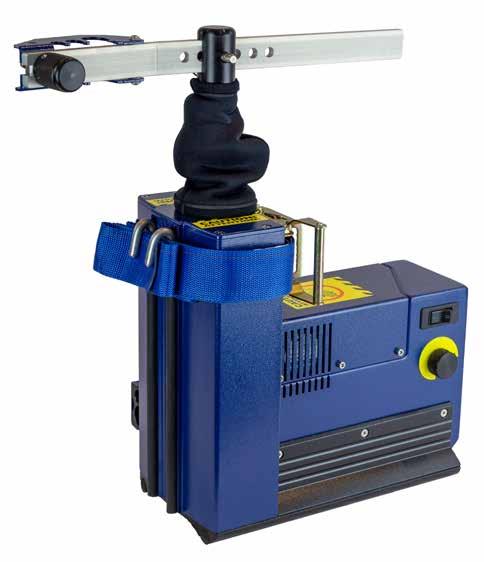

Drive Mechanism Hydrolift-2 Tubing Actuator

The Hydrolift is a portable, electrically operated device that is used to automate the operation of the Waterra Pump System. Great for use when developing monitoring wells. It is designed to be used in moderate to extreme pumping requirements (Low, Standard and High Flow). Features

• Ideal for purging and sampling 2" diameter monitoring wells up to 200 ft (60 m) deep

• Optimized to operate with the Standard Flow System up to its maximum effective depth and will operate with the High Flow System up to a depth of 150 ft (45 m)

• Suitable for use with Low, Standard and High Flow Waterra Pumping Systems

• Supports the Waterra tubing and also anchors the discharge end of the tubing facilitating sample collection

• Fully adjustable and will adapt to almost any size casing or protective well casing and can also be used with flush grade well completions

• Hinged tubing clamp

AVAILABLE TO RENT

• Reduces fatigue that one may experience when required to purge large volumes from wells

Portable, Single Operator Power Unit

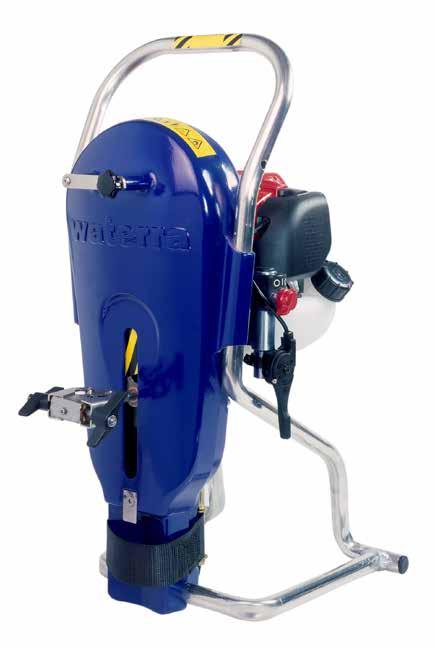

PowerPack PP1 Gasoline Powered Tubing Actuator

The PowerPack PP1 is powerful enough to lift water from over 60m depth using the Standard Flow System, and it fits onto a back-pack frame. The pump incorporates clamps for Waterra High Flow and Standard tubing sizes (adaptors are available for smaller tubes). Excellent choice for those with moderate pumping requirements.

Features

• Suitable for use with Low, Standard and High Flow Waterra Pumping Systems

• Ideal for purging and sampling 2" diameter monitoring wells up to 200 ft (60 m) deep

• Supports the Waterra pump system tubing and also anchors the discharge end of the tubing facilitating sample collection

• Fully adjustable and will adapt to almost any size casing or protective well casing and can also be used with flush grade well completions

• Powered by the Honda GX25 a 25 cc Mini 4-Stroke OHC gasoline engine

• Lightweight motor is EPA/CARB compliant, runs on regular gas and has a quiet – pleasing "low" tone

• Can run for approximately 1 hr on one full fuel tank

• Reduces fatigue that one may experience when required to purge large volumes from wells

• Includes backpack and spark arrestor
