For small diameter wells, standpipes & piezometers

from Water Sampling Vol. 5

by ERE Inc

from Water Sampling Vol. 5, page 56

Rugged, Portable & Affordable!

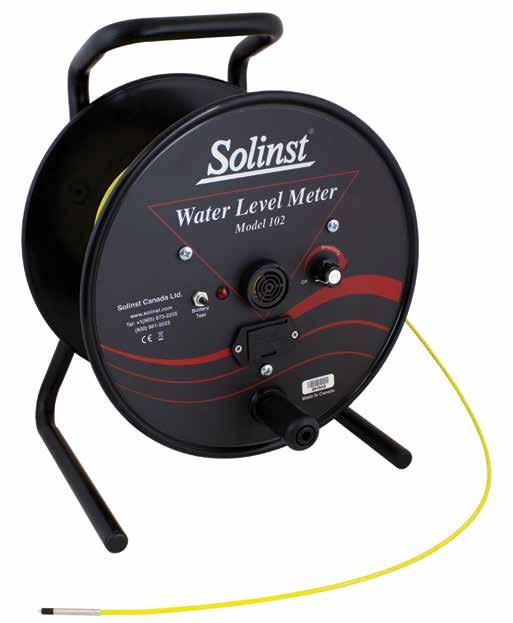

Model 102 Mk2 P10 Water Level Meter With Laser Marked Cable

Features

• Measures depth to water accurately using narrow polyurethane cable

• Ideal for measuring groundwater levels, especially in small diameter tubes and piezometers, or where a flexible assembly is needed to get past down hole instrumentation

• 0.12" width polyurethane laser marked coaxial tape marked each mm or 1/100 ft

• 3/8" P10 316 stainless steel probe with (10) stainless steel weights

• Electronic panel with audio and visual signals

• "On/Off" sensitivity switch to tune out cascading water

• Battery test button

• Ergonomically designed to be comfortable in use and stable when placed on the ground

• 9V battery

• Supplied with model 101 tape guide

• Carrying case sold separately

Model 102 Mk2 P4 Water Level Meter With Laser Marked Cable

• Measures depth to water accurately using narrow polyurethane cable

• Ideal for measuring groundwater levels, especially in small diameter tubes and piezometers, or where a flexible assembly is needed to get past down hole instrumentation

• 0.12" width polyurethane laser marked coaxial tape marked each mm or 1/100 ft

• 0.157" P4 316 stainless steel probe with no weights

• Electronic panel with audio and visual signals

• "On/Off" sensitivity switch to tune out cascading water

• Battery test button

• Ergonomically designed to be comfortable in use and stable when placed on the ground

• 9V battery

• Supplied with model 101 tape guide

• Carrying case sold separately

Model 103 Tag Line

With Laser Marked Cable

Features

• Measures well depths and is ideal as a multipurpose marked support line

• Accurately measure depth to backfill during construction and installation of monitoring wells

• Measured safety support line for deployment of pumps, bailers, samplers, and dataloggers and packers

• Perfect for use when installing Solinst Model 403 CMT Multilevel Systems

• 1/16" durable polyethylene coated stranded stainless steel wireline laser-marked every 5 cm or 1/4 ft with a minimum break strength of 270 lbs (122 kg)

• 3/4" standard stainless steel tag weight (optional 1/2" narrow stainless steel tag weight sold separately)

• Sturdy free-standing reel with a carrying handle, weight holder and brake

• Supplied with model 101 tape guide

• Power reel availability for longer lengths of tape sold separately

• Carrying case sold separately m (500 ft), 250 m (750 ft) & 300 m (1000 ft)

*Tape model in imperial (ft) also available

Model 103 Tag Line

With Laser Marked Flat Tape

Features

• Measures well depths and is ideal as a multipurpose marked support line

• Accurately measure depth to backfill during construction and installation of monitoring wells

• Measured safety support line for deployment of pumps, bailers, samplers, and dataloggers and packers

• Perfect for use when installing Solinst Model 403 CMT Multilevel Systems

• 3/8" width non-stretch PVDF laser marked flat tape marked each mm or 1/100 ft with a break strength of greater than 220 lbs (100 kg)

• 3/4" standard stainless steel tag weight (optional 1/2" narrow stainless steel tag weight sold separately)

• Sturdy free-standing reel with a carrying handle, weight holder and brake

• Supplied with model 101 tape guide

• Power reel availability for longer lengths of tape sold separately

• Carrying case sold separately

Features

• Detects base of steel well casing and measures the total depth of a well or borehole

• Ideal for measuring total well depth, groundwater well installation, detecting gaps in well casing, installing telescoping well screen, packer and downhole instrument installation, hydrofracturing, confirming existing well construction and decommissioning abandoned wells

• Greater accuracy as it utilizes a base-sensing plunger that activates a visual and auditory signal and the depth is then read from the tape

• 3/8" width non-stretch PVDF laser marked flat tape marked each mm or 1/100 ft

• 7/8" PWCD submersible 316 stainless steel probe with Delrin® tape seal plug, a strong internal magnetic assembly to detect metal casing and a plunger assembly to measure total well depth

• Electronic panel with audio and visual signals

• "On/Off" switch

• Battery test button

• Sturdy, standalone reel with ergonomic handle and brake

• 9V battery

• Supplied with model 101 tape guide

• Power reel availability for longer lengths of tape sold separately

• Carrying case sold separately

Model 107 TLC Meter

With Laser Marked Flat Tape

Features

• Measures level, temperature and conductivity

• Measures conductivity from 0-80,000 μS/cm with an accuracy of 5% or 100 μS/cm (whichever is greater)

• Ideal for profiling conductivity and temperature in wells and open water

• Perfect for use in salinity studies, saltwater intrusion investigations, testing for water quality impairments from road salt, tracer tests, general indication of chemical contamination level and early warning of changes in water quality at landfills and industrial sites

• 3/8" width non-stretch PVDF laser marked flat tape marked each mm or 1/100 ft

• 3/4" TLC submersible 316 stainless steel probe with Delrin® tape seal plug

• Electronic panel with audio and visual signals
