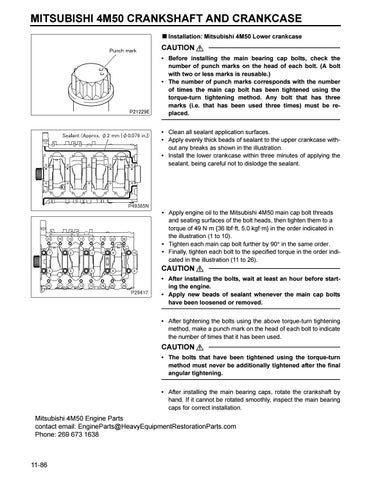

MITSUBISHI 4M50 CRANKSHAFT AND CRANKCASE Installation: Mitsubishi 4M50 Lower crankcase
CAUTION • Before installing the main bearing cap bolts, check the number of punch marks on the head of each bolt. (A bolt with two or less marks is reusable.) • The number of punch marks corresponds with the number of times the main cap bolt has been tightened using the torque-turn tightening method. Any bolt that has three marks (i.e. that has been used three times) must be replaced. • Clean all sealant application surfaces. • Apply evenly thick beads of sealant to the upper crankcase without any breaks as shown in the illustration. • Install the lower crankcase within three minutes of applying the sealant, being careful not to dislodge the sealant.
• Apply engine oil to the Mitsubishi 4M50 main cap bolt threads and seating surfaces of the bolt heads, then tighten them to a torque of 49 N·m {36 lbf·ft, 5.0 kgf·m} in the order indicated in the illustration (1 to 10). • Tighten each main cap bolt further by 90° in the same order. • Finally, tighten each bolt to the specified torque in the order indicated in the illustration (11 to 26).
CAUTION • After installing the bolts, wait at least an hour before starting the engine. • Apply new beads of sealant whenever the main cap bolts have been loosened or removed. • After tightening the bolts using the above torque-turn tightening method, make a punch mark on the head of each bolt to indicate the number of times that it has been used.
CAUTION • The bolts that have been tightened using the torque-turn method must never be additionally tightened after the final angular tightening. • After installing the main bearing caps, rotate the crankshaft by hand. If it cannot be rotated smoothly, inspect the main bearing caps for correct installation.
