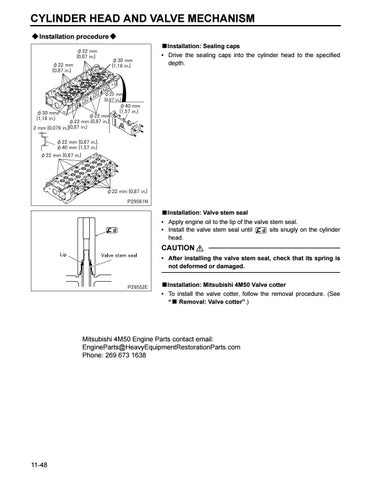

CYLINDER HEAD AND VALVE MECHANISM Installation procedure Installation: Sealing caps • Drive the sealing caps into the cylinder head to the specified depth.
Installation: Valve stem seal • Apply engine oil to the lip of the valve stem seal. • Install the valve stem seal until sits snugly on the cylinder head.
CAUTION • After installing the valve stem seal, check that its spring is not deformed or damaged. Installation: Mitsubishi 4M50 Valve cotter • To install the valve cotter, follow the removal procedure. (See “ Removal: Valve cotter”.)
Mitsubishi 4M50 Engine Parts contact email: EngineParts@HeavyEquipmentRestorationParts.com Phone: 269 673 1638
11-48
