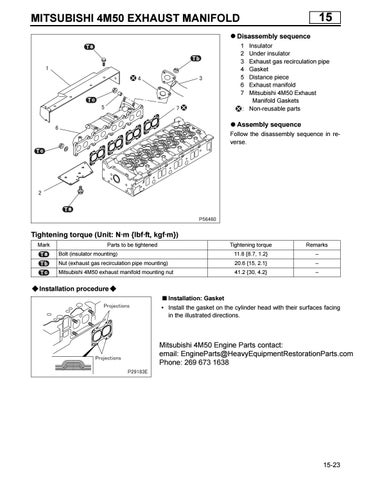

MITSUBISHI 4M50 EXHAUST MANIFOLD
15
Disassembly sequence 1 2 3 4 5 6 7
Insulator Under insulator Exhaust gas recirculation pipe Gasket Distance piece Exhaust manifold Mitsubishi 4M50 Exhaust Manifold Gaskets : Non-reusable parts
Assembly sequence Follow the disassembly sequence in reverse.
Tightening torque (Unit: N·m {lbf·ft, kgf·m}) Mark
Parts to be tightened
Tightening torque
Remarks
Bolt (insulator mounting)
11.8 {8.7, 1.2}
–
Nut (exhaust gas recirculation pipe mounting)
20.6 {15, 2.1}
–
Mitsubishi 4M50 exhaust manifold mounting nut
41.2 {30, 4.2}
–
Installation procedure Installation: Gasket • Install the gasket on the cylinder head with their surfaces facing in the illustrated directions.
Mitsubishi 4M50 Engine Parts contact: email: EngineParts@HeavyEquipmentRestorationParts.com Phone: 269 673 1638
15-23
