MITSUBISHI 4M50 INTAKE MANIFOLD

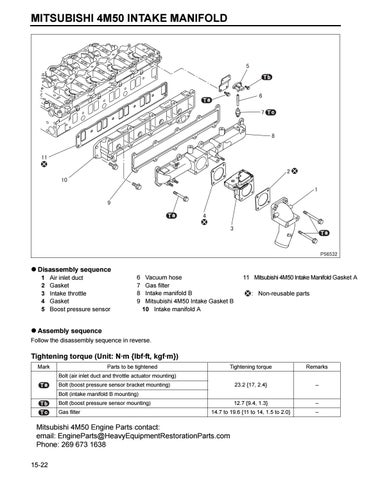

Disassembly sequence 1 2 3 4 5
Air inlet duct Gasket Intake throttle Gasket Boost pressure sensor
6 7 8 9
Vacuum hose Gas filter Intake manifold B Mitsubishi 4M50 Intake Gasket B 10 Intake manifold A
11 Mitsubishi 4M50 Intake Manifold Gasket A : Non-reusable parts
Assembly sequence Follow the disassembly sequence in reverse.
Tightening torque (Unit: N·m {lbf·ft, kgf·m}) Mark
Parts to be tightened
Tightening torque
Remarks
23.2 {17, 2.4}
–
12.7 {9.4, 1.3}
–
14.7 to 19.6 {11 to 14, 1.5 to 2.0}
–
Bolt (air inlet duct and throttle actuator mounting) Bolt (boost pressure sensor bracket mounting) Bolt (intake manifold B mounting) Bolt (boost pressure sensor mounting) Gas filter
