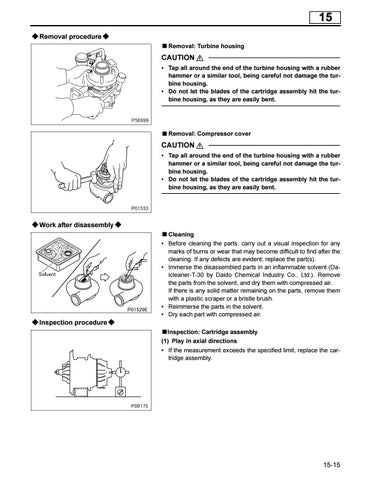

15 Removal procedure Removal: Turbine housing
CAUTION • Tap all around the end of the turbine housing with a rubber hammer or a similar tool, being careful not damage the turbine housing. • Do not let the blades of the cartridge assembly hit the turbine housing, as they are easily bent.
Removal: Compressor cover
CAUTION • Tap all around the end of the turbine housing with a rubber hammer or a similar tool, being careful not damage the turbine housing. • Do not let the blades of the cartridge assembly hit the turbine housing, as they are easily bent.
Work after disassembly Cleaning • Before cleaning the parts, carry out a visual inspection for any marks of burns or wear that may become difficult to find after the cleaning. If any defects are evident, replace the part(s). • Immerse the disassembled parts in an inflammable solvent (Daicleaner-T-30 by Daido Chemical Industry Co., Ltd.). Remove the parts from the solvent, and dry them with compressed air. If there is any solid matter remaining on the parts, remove them with a plastic scraper or a bristle brush. • Reimmerse the parts in the solvent. • Dry each part with compressed air.
Inspection procedure Inspection: Cartridge assembly (1) Play in axial directions • If the measurement exceeds the specified limit, replace the cartridge assembly.
