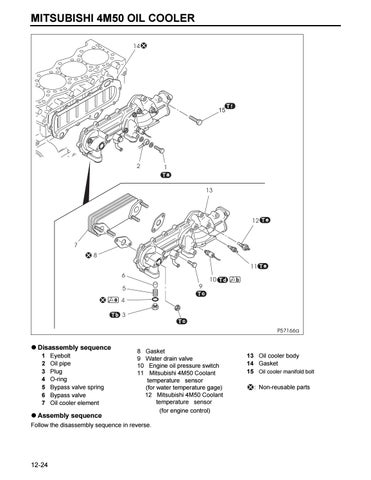

MITSUBISHI 4M50 OIL COOLER
Disassembly sequence 1 2 3 4 5 6 7
Eyebolt Oil pipe Plug O-ring Bypass valve spring Bypass valve Oil cooler element
Assembly sequence
8 9 10 11
Gasket Water drain valve Engine oil pressure switch Mitsubishi 4M50 Coolant temperature sensor (for water temperature gage) 12 Mitsubishi 4M50 Coolant temperature sensor (for engine control)
Follow the disassembly sequence in reverse.
12-24
13 Oil cooler body 14 Gasket 15 Oil cooler manifold bolt : Non-reusable parts
