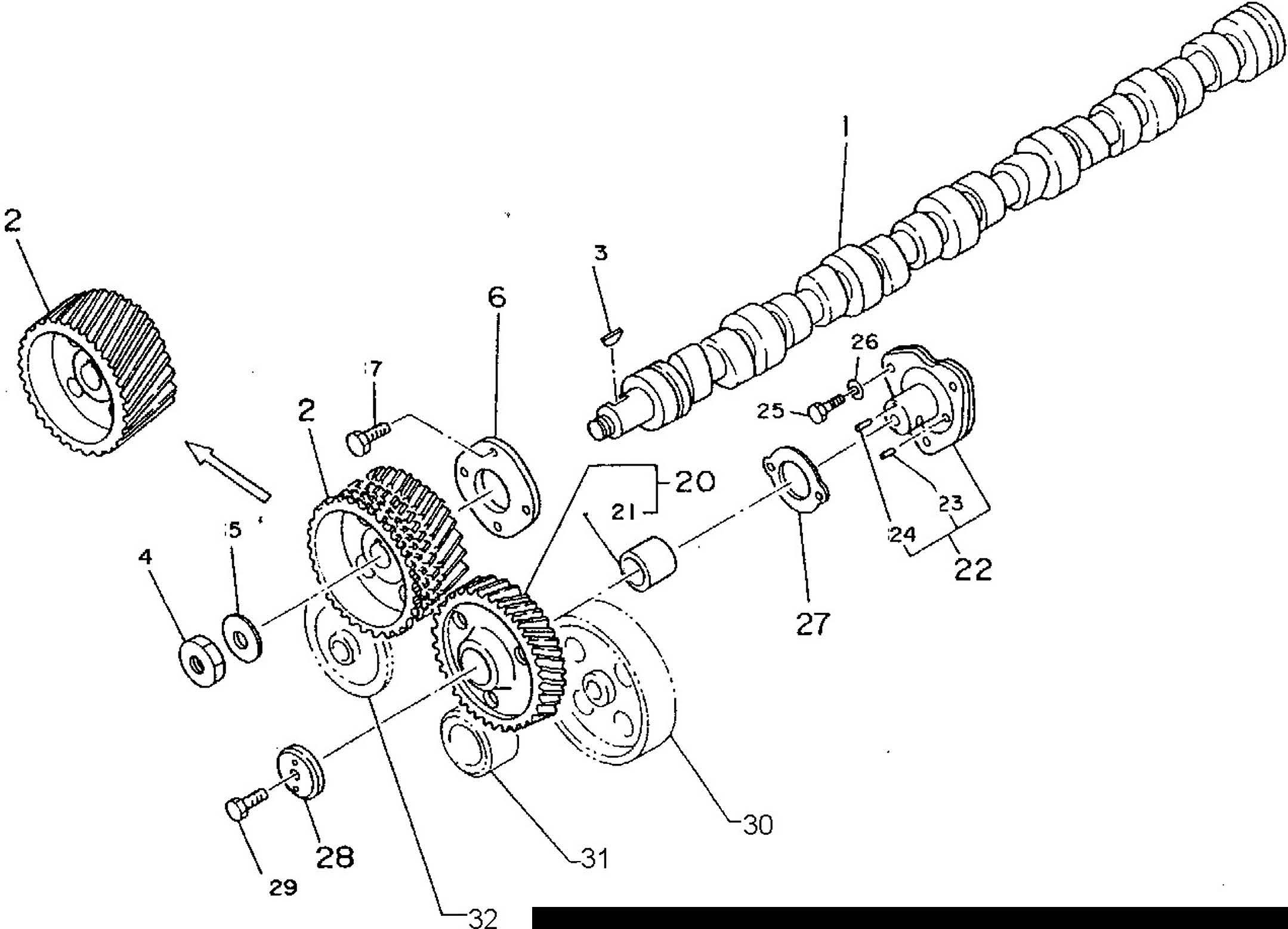

CAMSHAFT, TIMING GEARS

1. 4251396 Camshaft, series 1 (1) 1. 4251843 Camshaft series 2 (1) 1. 4364815 Camshaft series 3 (1) 2. 2. 4251395 Camshaft gear (1) 3. 4251394 Woodruff key (1) 4. 4251393 Nut, camshaft (1) 5. 4251392 Collar, washer (1) 6. 4251755 Camshaft thrust plate (1) 7. 4251391 Bolt (4) 20. 4364672 Idler gear (1) 21. 4251844 Idler gear bushing (1) 22. 4251390 Shaft, Idler gear (1) 23. 4251389 Pin, (2) 24. 4251388 Pin, (2) 25. 4251387 Bolt (3) 26. 4251386 Lockwasher (3) 27. 4251380 Thrust plate, idler gear (1)

28. 4251385 Thrust plate, idler gear (1) 29. 4251391 Bolt (1) 4364668 31. 4364649 Crankshaft gear (1) 32. 4251379 Oil pump drive gear (1)
