ENGINE
EN-16

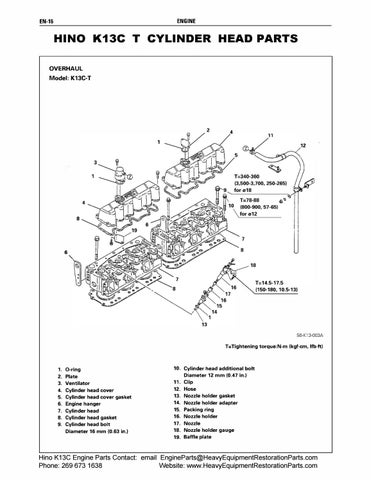

HINO K13C T CYLINDER HEAD PARTS OVERHAUL Model: K13C-T
2
4
12
8
6
{150-180, 10.5-13}
S6-K 13-003A
T:Tightening torque:N-m {kgf-cm, lfb-ft}
1. 2. 3. 4. 5. 6. 7. 8. 9.
0-ring Plate Ventilator Cylinder head cover Cylinder head cover gasket Engine hanger Cylinder head Cylinder head gasket Cylinder head bolt Diameter 16 mm {0.63 in.}
10. Cylinder head additional bolt Diameter 12 mm {0.47 in.} 11. Clip 12. Hose 13. Nozzle holder gasket 14. Nozzle holder adapter 15. Packing ring 16. Nozzle holder 17. Nozzle 18. Nozzle holder gauge 19. Baffle plate
