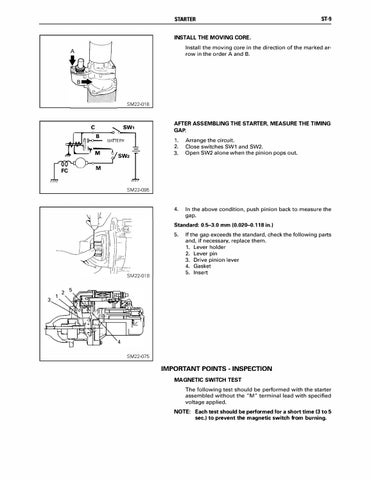

ST-9
STARTER INSTALL THE MOVING CORE.
Install the moving core in the direction of the marked ar row in the order A and B.
SM22-016
c
�TTERY
�SW2
FC
t
�
M
1
AFTER ASSEMBLING THE STARTER, MEASURE THE TIMING GAP. 1. 2. 3.
Arrange the circuit. Close switches SW1 and SW2. Open SW2 alone when the pinion pops out.
4.
In the above condition, push pinion back to measure the gap.
SM22-095
Standard:
5.
0.5-3.0
mm {0.020-0.118 in.}
If the gap exceeds the standard, check the following parts and, if necessary, replace them. 1. Lever holder 2. Lever pin 3. Drive pinion lever 4. Gasket 5. Insert
SM22-075
IMPORTANT POINTS- INSPECTION MAGNETIC SWITCH TEST
The following test should be performed with the starter assembled without the "M" terminal lead with specified voltage applied.
NOTE: Each test should be performed for a short time (3 to 5 sec.) to prevent the magnetic switch from burning.
