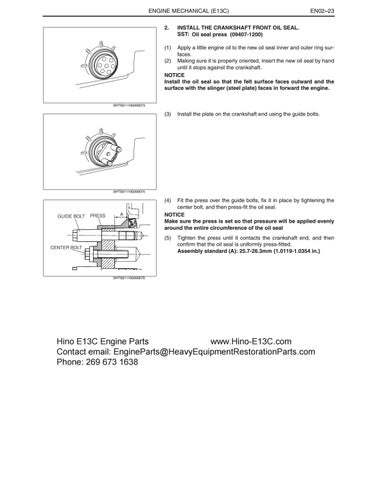

ENGINE MECHANICAL (E13C) 2.
EN02–23
INSTALL THE CRANKSHAFT FRONT OIL SEAL. SST: Oil seal press (09407-1200)
(1)
Apply a little engine oil to the new oil seal inner and outer ring surfaces. (2) Making sure it is properly oriented, insert the new oil seal by hand until it stops against the crankshaft. NOTICE Install the oil seal so that the felt surface faces outward and the surface with the slinger (steel plate) faces in forward the engine. SHTS011100200073
(3)
Install the plate on the crankshaft end using the guide bolts.
SHTS011100200074
(4)
Fit the press over the guide bolts, fix it in place by tightening the center bolt, and then press-fit the oil seal. NOTICE Make sure the press is set so that pressure will be applied evenly around the entire circumference of the oil seal (5)
Tighten the press until it contacts the crankshaft end, and then confirm that the oil seal is uniformly press-fitted. Assembly standard (A): 25.7-26.3mm {1.0119-1.0354 in.}
SHTS011100200075
