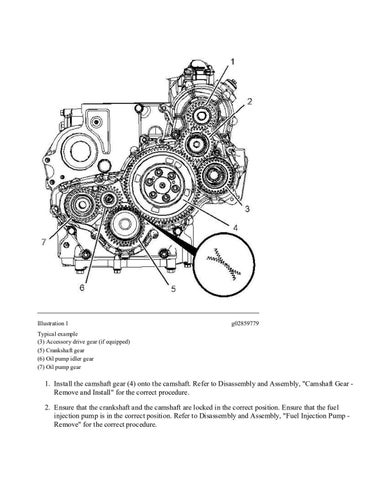

Illustration 1
g02859779
Typical example (3) Accessory drive gear (if equipped) (5) Crankshaft gear (6) Oil pump idler gear (7) Oil pump gear
1. Install the camshaft gear (4) onto the camshaft. Refer to Disassembly and Assembly, "Camshaft Gear Remove and Install" for the correct procedure. 2. Ensure that the crankshaft and the camshaft are locked in the correct position. Ensure that the fuel injection pump is in the correct position. Refer to Disassembly and Assembly, "Fuel Injection Pump Remove" for the correct procedure.
