48
your spares solution

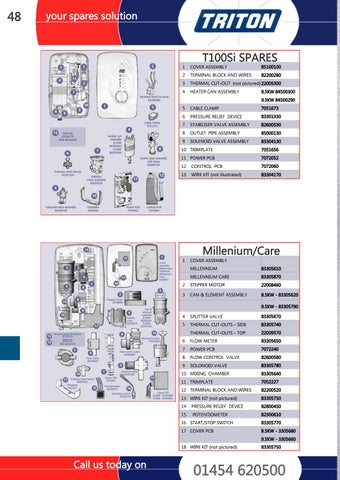

T100Si SPARES
1
COVER ASSEMBLY
85100100
2
TERMINAL BLOCK AND WIRES
82200280
3
THERMAL CUT-OUT (not pictured) 22005300
4
HEATER CAN ASSEMBLY
8.5KW 84500300 9.5KW 84500290
5
CABLE CLAMP
7051673
6
PRESSURE RELIEF DEVICE
83301330
7
STABILISER VALVE ASSEMBLY
82600530
8
OUTLET PIPE ASSEMBLY
85000130
9
SOLENOID VALVE ASSEMBLY
83304130
10 TRIMPLATE
7051656
11 POWER PCB
7072052
12
CONTROL PCB
7072060
13
WIRE KIT (not illustrated)
83304170
1
COVER ASSEMBLY
Millenium/Care MILLENNIUM
83305610
MILLENNIUM CARE
83305870
2
STEPPER MOTOR
22008460
3
CAN & ELEMENT ASSEMBLY
8.5KW - 83305620 9.5KW - 83305790
4
SPLITTER VALVE
83305670
5
THERMAL CUT-OUTS - SIDE
83305740
THERMAL CUT-OUTS - TOP
22009570
6
FLOW METER
83305650
7
POWER PCB
7072240
8
FLOW CONTROL VALVE
82600580
9
SOLONOID VALVE
83305780
10 MIXING CHAMBER
83305640
11 TRIMPLATE
7052227
12 TERMINAL BLOCK AND WIRES
82200520
13 WIRE KIT (not pictured)
83305750
14
PRESSURE RELIEF DEVICE
82800450
15
POTENTIOMETER
82300610
16 START/STOP SWITCH
83305770
17 COVER PCB
8.5KW - 3305680 9.5KW - 3305660
18 WIRE KIT (not pictured)
Call us today on
83305750
01454 620500
