CUSTOM FIT | GLAZING
CUSTOM FIT
GLAZING |
GLAZING Lead time plus 2 weeks to chosen door, subject to availability.
DFG 17
DFG 04
DFG 20
DFG 18 FIRE
NON-FIRE
DFG 38
DFG 63
130mm 130mm
130mm
185x1500mm
150x775mm 200mm
DFG 16 Part M
DON’T TAKE THE RISK! VICAIMA CAN ONLY GUARANTEE THE QUALITY AND FIRE RATING ON GLAZED DOORS COMPLETED BY VICAIMA.
150x700mm
130mm
130mm
130mm
DFG 37
LOOK FOR THE RED LABEL “CAF183”
150x700mm
Special glazing is available. Price on application. Please contact: DFG 54 (L) Part M
DFG 01 (L) Part M DFG 01 (C)
Note: Dimension to Actual Opening and not to Edge of Bead
DFG 56 (L and C)
01793 532333 info@vicaima.com

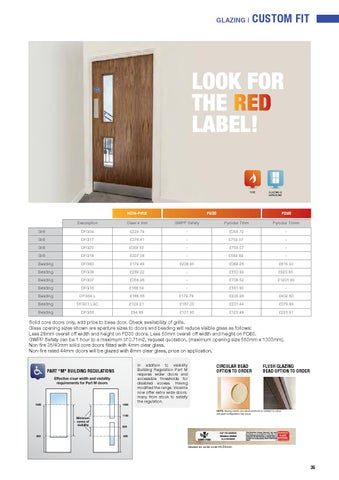

GLAZING & SERVICING
FD30
Description
Clear 4 mm
GWPP Safety
Grill
DFG04
£229.74
Grill
DFG17
£376.41
Grill
DFG20
£359.55
Grill
DFG18
£337.08
Beading
DFG63
Beading
DFG38
Beading
FD60 Pyrodur 7mm
Pyrodur 10mm
-
£359.72
-
-
£759.07
-
-
£759.07
-
-
£589.89
-
£179.48
£236.85
£369.26
£615.90
£269.22
-
£553.89
£923.85
DFG37
£358.96
-
£738.52
£1231.80
Beading
DFG16
£168.54
-
£561.80
-
Beading
DFG54 L
£168.56
£179.78
£235.96
£432.63
Beading
DFG01 L&C
£129.21
£167.30
£231.44
£378.89
Beading
DFG56
£94.89
£101.95
£125.48
£225.91
Solid core doors only, add price to base door. Check availability of grills. Glass opening sizes shown are aperture sizes to doors and beading will reduce visible glass as follows: Less 28mm overall off width and height on FD30 doors. Less 50mm overall off width and height on FD60. GWPP Safety can be 1 hour to a maximum of 0.71m2, request quotation, (maximum opening size 550mm x 1300mm). Non fire 35/40mm solid core doors fitted with 4mm clear glass. Non-fire rated 44mm doors will be glazed with 6mm clear glass, price on application.
PART “M” BUILDING REGULATIONS
In addition to visibility Building Regulation Part M requires wider doors and accessible thresholds for disabled access. Having modified the range, Vicaima now offer extra wide doors. many from stock to satisfy the regulation.
CIRCULAR BEAD OPTION TO ORDER
FLUSH GLAZING BEAD OPTION TO ORDER
NOTE: Glazing, beads, are natural products so variation to colour and grain configuration may occur.
CAF 183 A000039
Glazed ex solid core 44/54mm
KEY- (L) = Offset, (C) = Central. Please specify glazing position.
