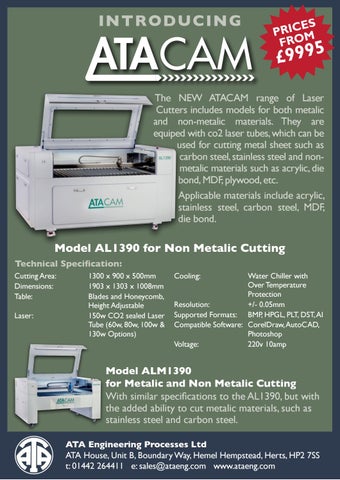

INTRODU CING
The NEW ATACAM range of Laser Cutters includes models for both metalic and non-metalic materials. They are equiped with co2 laser tubes, which can be used for cutting metal sheet such as carbon steel, stainless steel and nonmetalic materials such as acrylic, die bond, MDF, plywood, etc. Applicable materials include acrylic, stainless steel, carbon steel, MDF, die bond.
Model AL1390 for Non Metalic Cutting
Technical Specification: Cutting Area: Dimensions: Table: Laser:
1300 x 900 x 500mm 1903 x 1303 x 1008mm Blades and Honeycomb, Height Adjustable 150w CO2 sealed Laser Tube (60w, 80w, 100w & 130w Options)
Cooling:
Water Chiller with Over Temperature Protection Resolution: +/- 0.05mm Supported Formats: BMP, HPGL, PLT, DST, AI Compatible Software: CorelDraw, AutoCAD, Photoshop Voltage: 220v 10amp
Model ALM1390 for Metalic and Non Metalic Cutting With similar specifications to the AL1390, but with the added ability to cut metalic materials, such as stainless steel and carbon steel. ATA Engineering Processes Ltd ATA House, Unit B, Boundary Way, Hemel Hempstead, Herts, HP2 7SS t: 01442 264411 e: sales@ataeng.com www.ataeng.com
