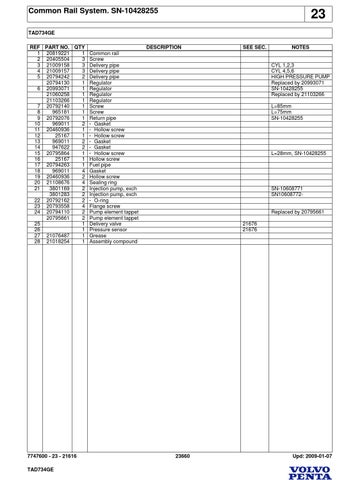

Common Rail System. SN-10428255
23
TAD734GE REF PART NO. QTY 1 20819221 1 Common rail 2 20405504 3 Screw 3 21009158 3 Delivery pipe 4 21009157 3 Delivery pipe 5 20794242 2 Delivery pipe 20794130 1 Regulator 6 20993071 1 Regulator 21060258 1 Regulator 21103266 1 Regulator 7 20792140 1 Screw 8 965181 1 Screw 9 20792076 1 Return pipe 10 969011 2 Gasket 11 20460936 1 Hollow screw 12 25167 1 Hollow screw 13 969011 2 Gasket 14 947622 2 Gasket 15 20795864 1 Hollow screw 16 25167 1 Hollow screw 17 20794263 1 Fuel pipe 18 969011 4 Gasket 19 20460936 2 Hollow screw 20 21108676 4 Sealing ring 21 3801169 2 Injection pump, exch 3801283 2 Injection pump, exch 22 20792162 2 O-ring 23 20793558 4 Flange screw 24 20794110 2 Pump element tappet 20795661 2 Pump element tappet 25 1 Delivery valve 26 1 Pressure sensor 27 21076487 1 Grease 28 21018254 1 Assembly compound
7747600 - 23 - 21616 TAD734GE
DESCRIPTION
SEE SEC.
NOTES
CYL 1,2,3 CYL 4,5,6 HIGH PRESSURE PUMP Replaced by 20993071 SN-10428255 Replaced by 21103266 L=85mm L=75mm SN-10428255
L=28mm, SN-10428255
SN-10608771 SN10608772Replaced by 20795661 21676 21676
23660
Upd: 2009-01-07
