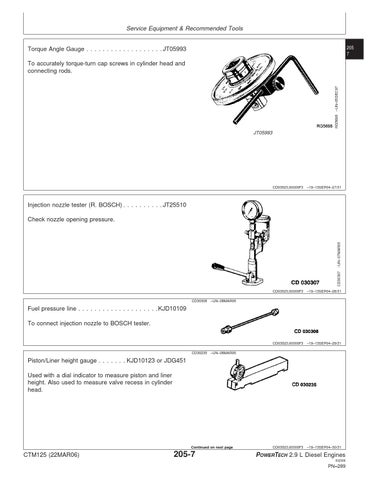

Service Equipment & Recommended Tools 205 7
Torque Angle Gauge . . . . . . . . . . . . . . . . . . . JT05993
RG5698
–UN–05DEC97
To accurately torque-turn cap screws in cylinder head and connecting rods.
JT05993
CD03523,00000F3 –19–13SEP04–27/31
Injection nozzle tester (R. BOSCH) . . . . . . . . . . JT25510
CD30307
–UN–07MAR95
Check nozzle opening pressure.
CD03523,00000F3 –19–13SEP04–28/31 CD30308 –UN–08MAR95
Fuel pressure line . . . . . . . . . . . . . . . . . . . .KJD10109 To connect injection nozzle to BOSCH tester.
CD03523,00000F3 –19–13SEP04–29/31 CD30235 –UN–08MAR95
Piston/Liner height gauge . . . . . . . KJD10123 or JDG451 Used with a dial indicator to measure piston and liner height. Also used to measure valve recess in cylinder head.
Continued on next page
CTM125 (22MAR06)
205-7
CD03523,00000F3 –19–13SEP04–30/31
POWERTECH 2.9 L Diesel Engines 032306
PN=289
