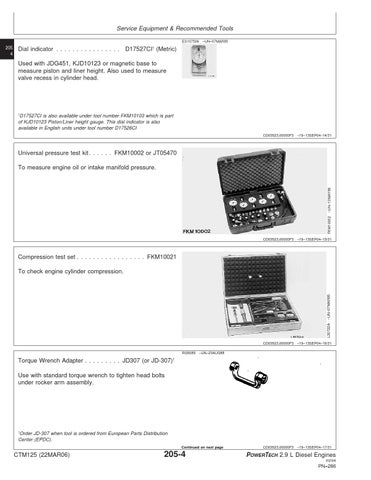

Service Equipment & Recommended Tools ES107506 –UN–07MAR95 1
Dial indicator . . . . . . . . . . . . . . . . D17527CI (Metric) Used with JDG451, KJD10123 or magnetic base to measure piston and liner height. Also used to measure valve recess in cylinder head.
1
D17527CI is also available under tool number FKM10103 which is part of KJD10123 Piston/Liner height gauge. This dial indicator is also available in English units under tool number D17526CI CD03523,00000F3 –19–13SEP04–14/31
Universal pressure test kit . . . . . . FKM10002 or JT05470
FKM10002
–UN–13MAY96
To measure engine oil or intake manifold pressure.
CD03523,00000F3 –19–13SEP04–15/31
Compression test set . . . . . . . . . . . . . . . . . FKM10021
–UN–07MAR95
To check engine cylinder compression.
L30722A
205 4
CD03523,00000F3 –19–13SEP04–16/31 RG5085 –UN–23AUG88
Torque Wrench Adapter . . . . . . . . . JD307 (or JD-307)1 Use with standard torque wrench to tighten head bolts under rocker arm assembly.
1
Order JD-307 when tool is ordered from European Parts Distribution Center (EPDC). Continued on next page
CTM125 (22MAR06)
205-4
CD03523,00000F3 –19–13SEP04–17/31
POWERTECH 2.9 L Diesel Engines 032306
PN=286
