Cooling System 30 11

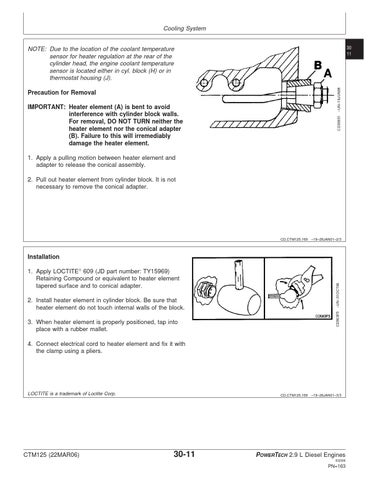

IMPORTANT: Heater element (A) is bent to avoid interference with cylinder block walls. For removal, DO NOT TURN neither the heater element nor the conical adapter (B). Failure to this will irremediably damage the heater element.
CD30651
Precaution for Removal
–UN–16JUN98
NOTE: Due to the location of the coolant temperature sensor for heater regulation at the rear of the cylinder head, the engine coolant temperature sensor is located either in cyl. block (H) or in thermostat housing (J).
1. Apply a pulling motion between heater element and adapter to release the conical assembly. 2. Pull out heater element from cylinder block. It is not necessary to remove the conical adapter.
CD,CTM125,169 –19–26JAN01–2/3
2. Install heater element in cylinder block. Be sure that heater element do not touch internal walls of the block. 3. When heater element is properly positioned, tap into place with a rubber mallet.
CD563P3
1. Apply LOCTITE 609 (JD part number: TY15969) Retaining Compound or equivalent to heater element tapered surface and to conical adapter.
–UN–31OCT96
Installation
4. Connect electrical cord to heater element and fix it with the clamp using a pliers.
LOCTITE is a trademark of Loctite Corp.
CTM125 (22MAR06)
CD,CTM125,169 –19–26JAN01–3/3
30-11
POWERTECH 2.9 L Diesel Engines 032306
