Buildings of Theseus A cyclical assembly and disassembly of non-standard timber structures with timber joints Choo Ee Pin1 Tutored by: Tom Svilans1
Royal Danish Academy, Denmark Copenhagen Centre for Information Technology and Architecture (CITA) 2022 1
2
3
1. Background
(1)The practice of building permanent structures only to tear them down when it no longer meets the demands of society is a huge drain on our natural resources. (2)Construction sector produces 37% share of global CO2 emissions This mainly comes from the manufacturing of steel and concrete (UNEP 2021).
How can we challenge the existing paradigm of a building’s life cycle?
4
5
1. Background
Design for Disassembly (DfD) responds to the growing weight of embodied energy in the materials and the sequential renovation cycles over the building’s lifetime (Crowther 2009). This thesis will explore these cyclic processes of timber structures with timber joints at the scale of materials, components, and structure.
What are the challenges of disassembling timber structures?
6
7
1. Background
Wood is an anisotropic material that shrinks and expands nonuniformly due to changes in moisture content, and these changes need to be accounted for during the design (Rogeau et al., 2020). Any misalignment could lead to improper connection and separation.
How can digitalisation and automation aid in these cyclical processes? As the construction industries move towards digitalisation and automation (Construction 4.0), automation could potentially increase productivity in construction (Sawhney et al., 2020). Digitalisation offer opportunities to enable DfD through adaptive work flows and managing complexities in disassemblable timber structures.
8
9
2. Architectural intention
1. Use modular designs 2.Provide realistic tolerances to allow for manoeuvring during disassembly

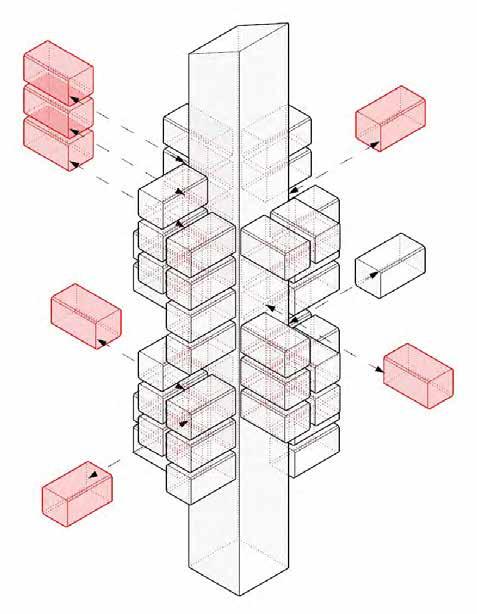

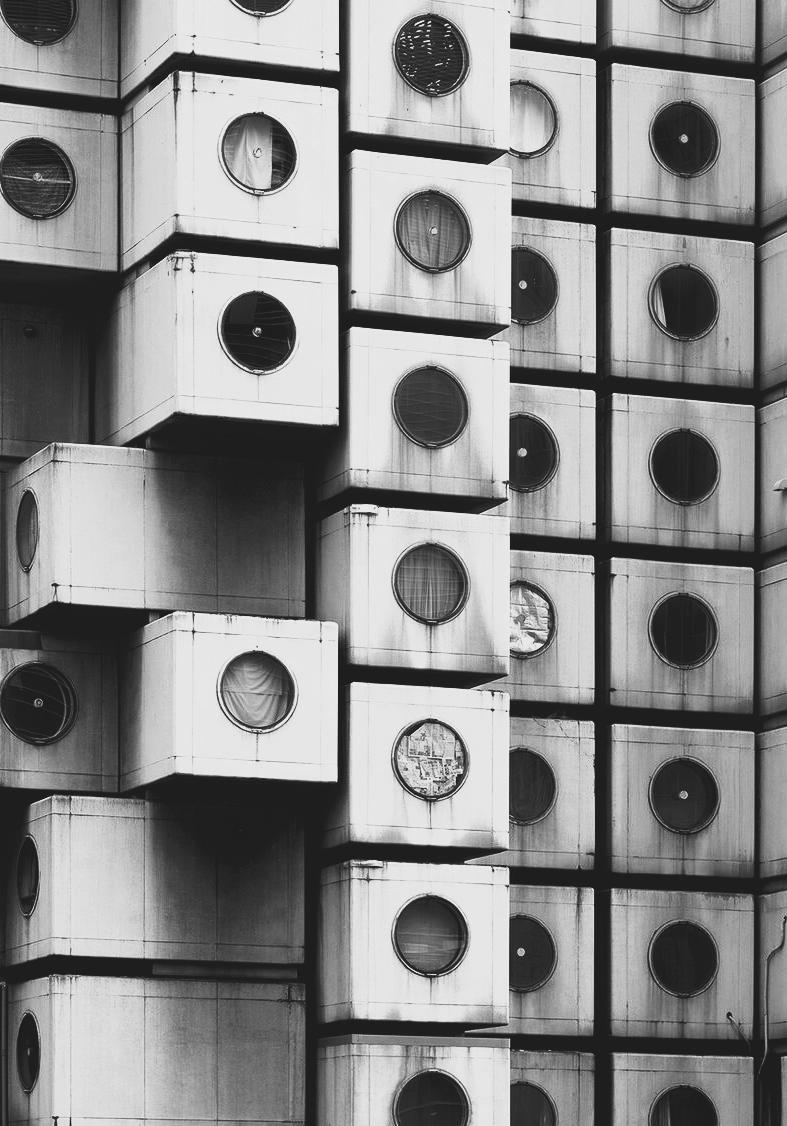

1972 - Nakagin Capsule Tower
10
11
2. Architectural intention
3. Use mechanical connections rather than chemical ones 4. Design joints and connectors to withstand repeated use

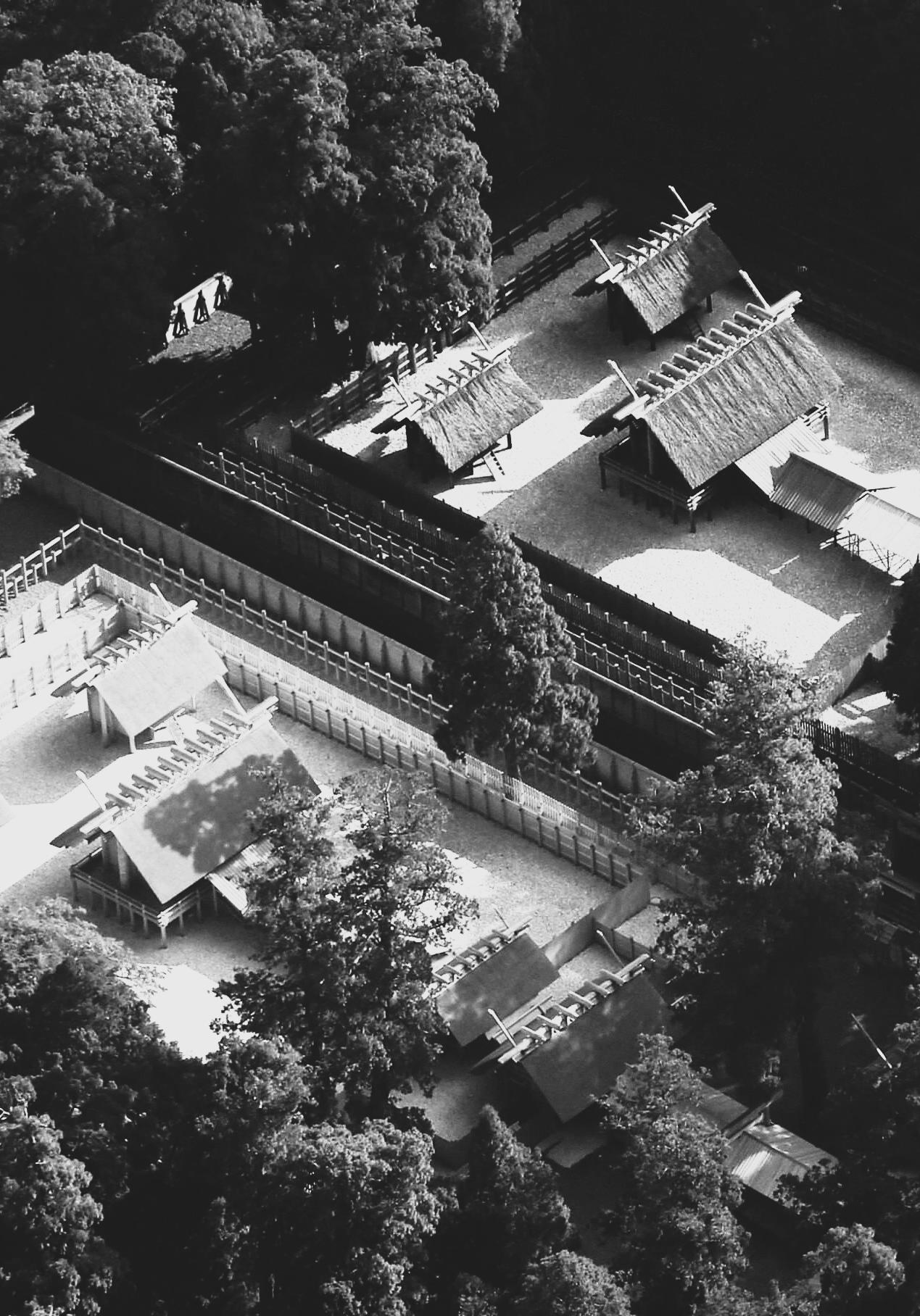

4BCE - Ise Grand Shrine
12
13
2. Architectural intention
5. Make materials and components of a size that suits the intended means of handling 6. Use construction technologies compatible with standard building practice and common tools

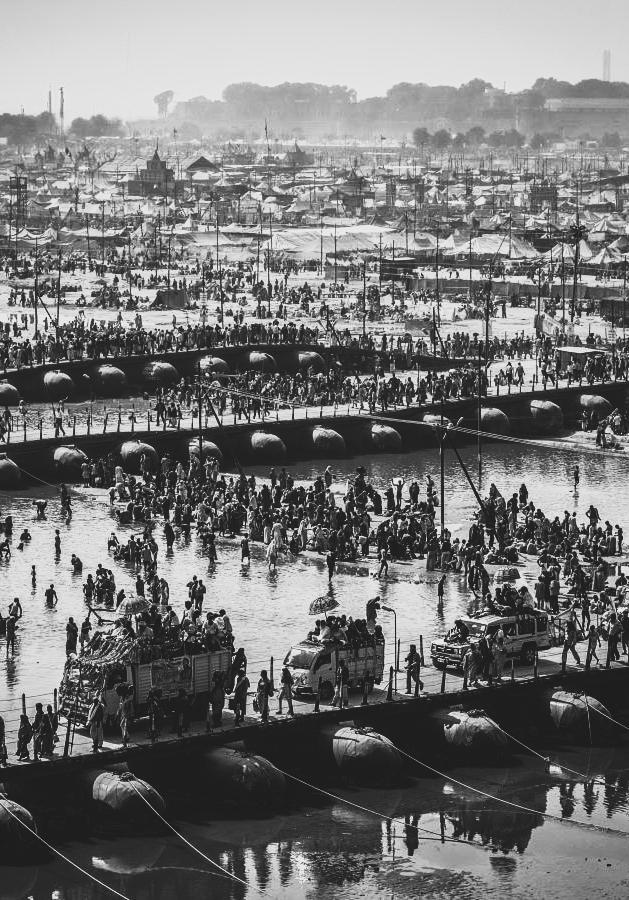

Kumbh Mela in Allahabadhabad
14
15
3. Timber connections
16
17

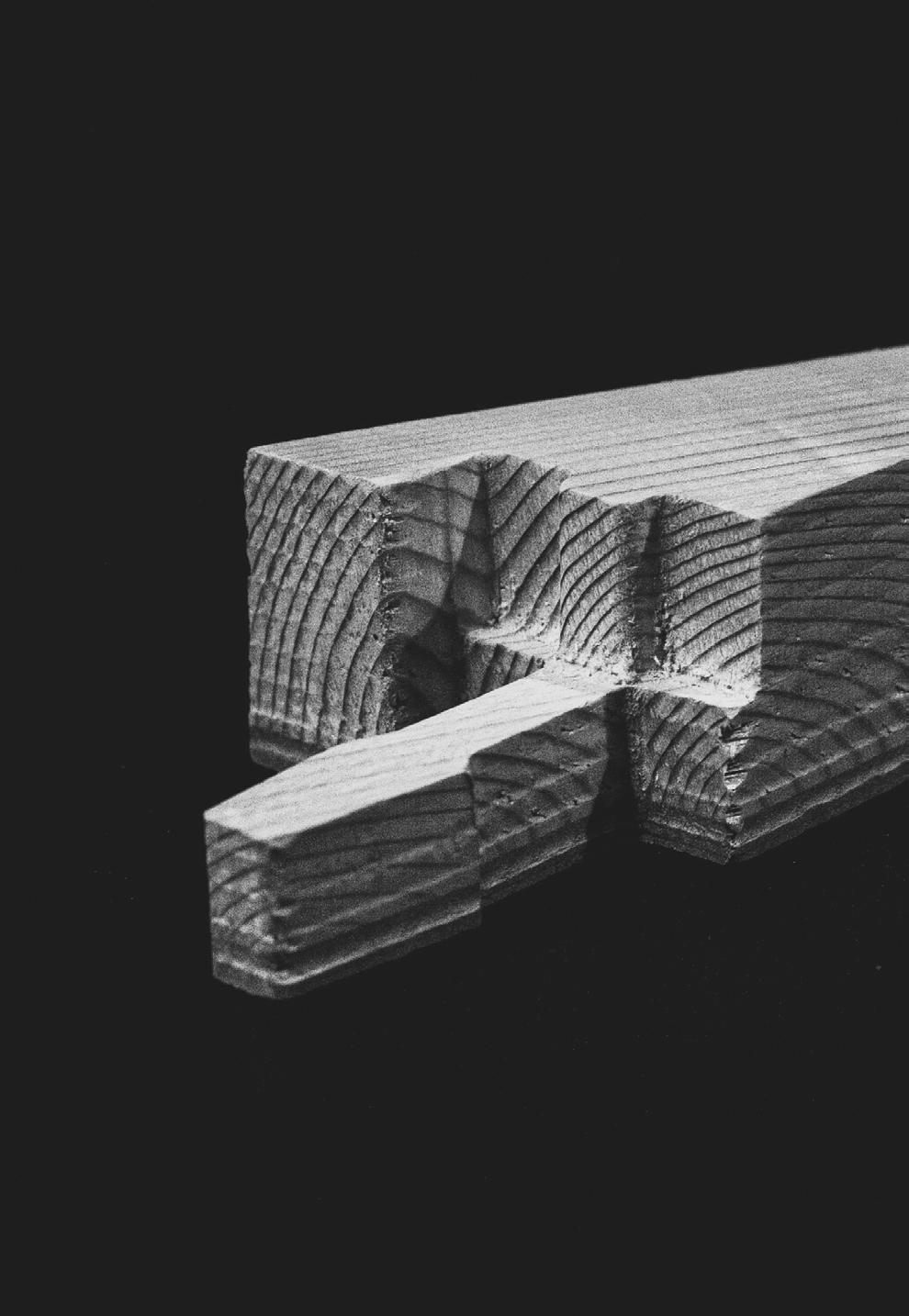

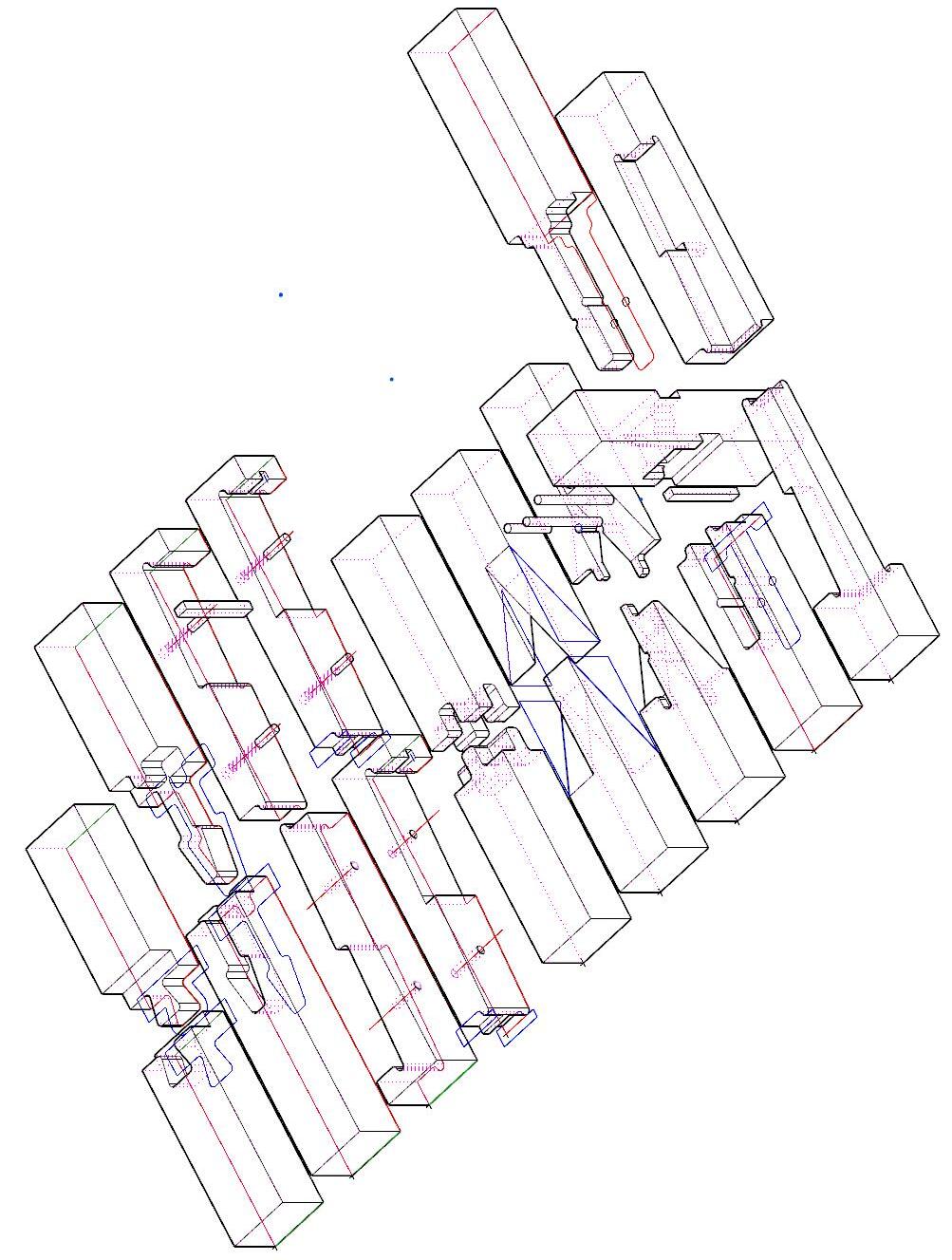

3.1. Timber joints Modularity vs Bespoke
Housed rabbeted oblique scarf splice | Kakushi kanawa Tension Uses: Decorative splice for finishing Pole tenon | saotsugi Tension Uses: Connect two beams on opposite faces of a column Double-faced halved rabbeted oblique scarf splice with key | Isuka tsugi Compression Uses: Decorative splice for finishing Double-faced halved rabbeted oblique scarf splice | Isuka tsugi Compression Uses: Decorative splice for finishing Cross-shaped tenon and mortise splice | Jujui mechiire Torsion| Compression Uses: Combined with splicing plates bolted throughout Blind stubbed, housed rabbeted oblique scarf splice | Shiribasami tsugi Tension Uses: Join lumber sections, beams Rabbeted oblique scarf splice | Okkake daisen tsugi Tension Uses: Join lumber sections, beams Stepped goose neck splice | Koshikake kamatsugi Tension Uses: Ground sills, join lumber sections Stepped dovetailed splice | Koshikake aritsugi Tension Uses: Ground sills
18
19
3.1. Timber joints Modularity vs Bespoke

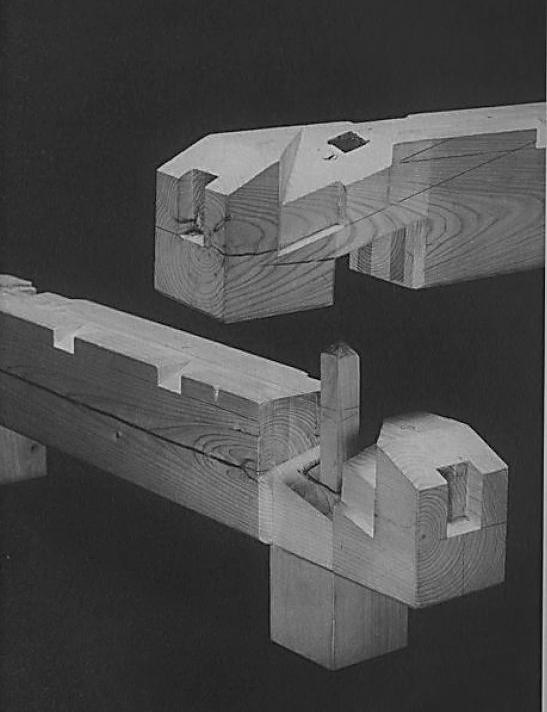

Traditional Japanese timber joints
Tsugite: Interactive Design and Fabrication of Wood Joints
20

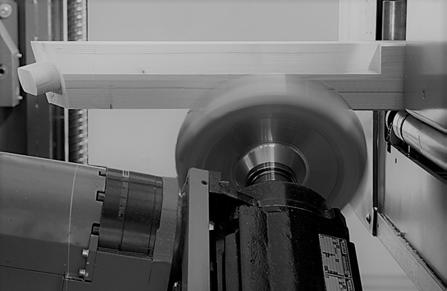

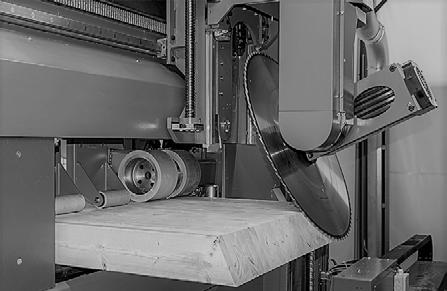

Hundegger's ROBOT-Drive Joinery Machine
21
4. Research question
How can [adaptive digital processes] [prolong the life cycle] of timber structures through designing for [multiple stages of reconfiguration]?
22
23
4.1. Research scope
Left: A flow chart showing a conventional life cycle of timber from extraction to a recycling plant or a landfill.
24

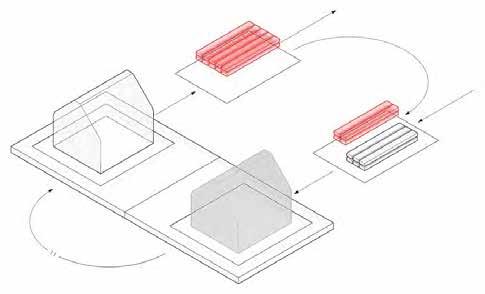

Right: Architectural intervention that enables materials to stay within the system through multiple layers of reuse before finally being removed when it is no longer viable.
25
4.2. Architectural intention (1) Digitalisation
(2) Reconfiguration
26
27
5. Automation and digitalisation

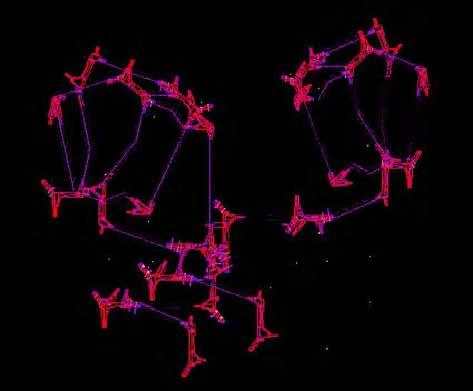

The diagram illustrates the complexity of buildings being assembled and disassembled over the same period of time (Smith, R. E.,2010). Automation through tracking larger amount of parts could provide a possible solution to organise these elements and allocate them appropriately based on their functions.
28
29
5.1. Digitalisation and tracking

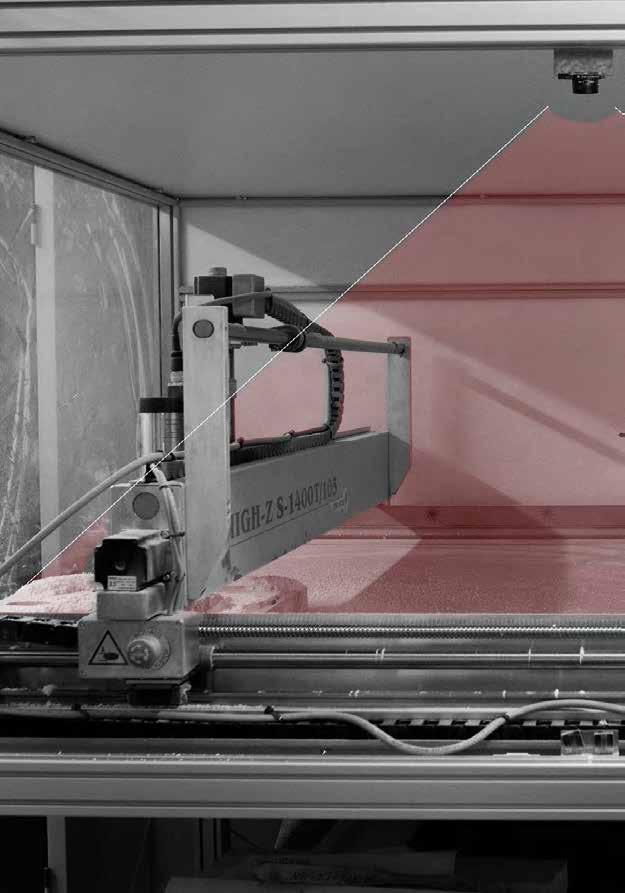

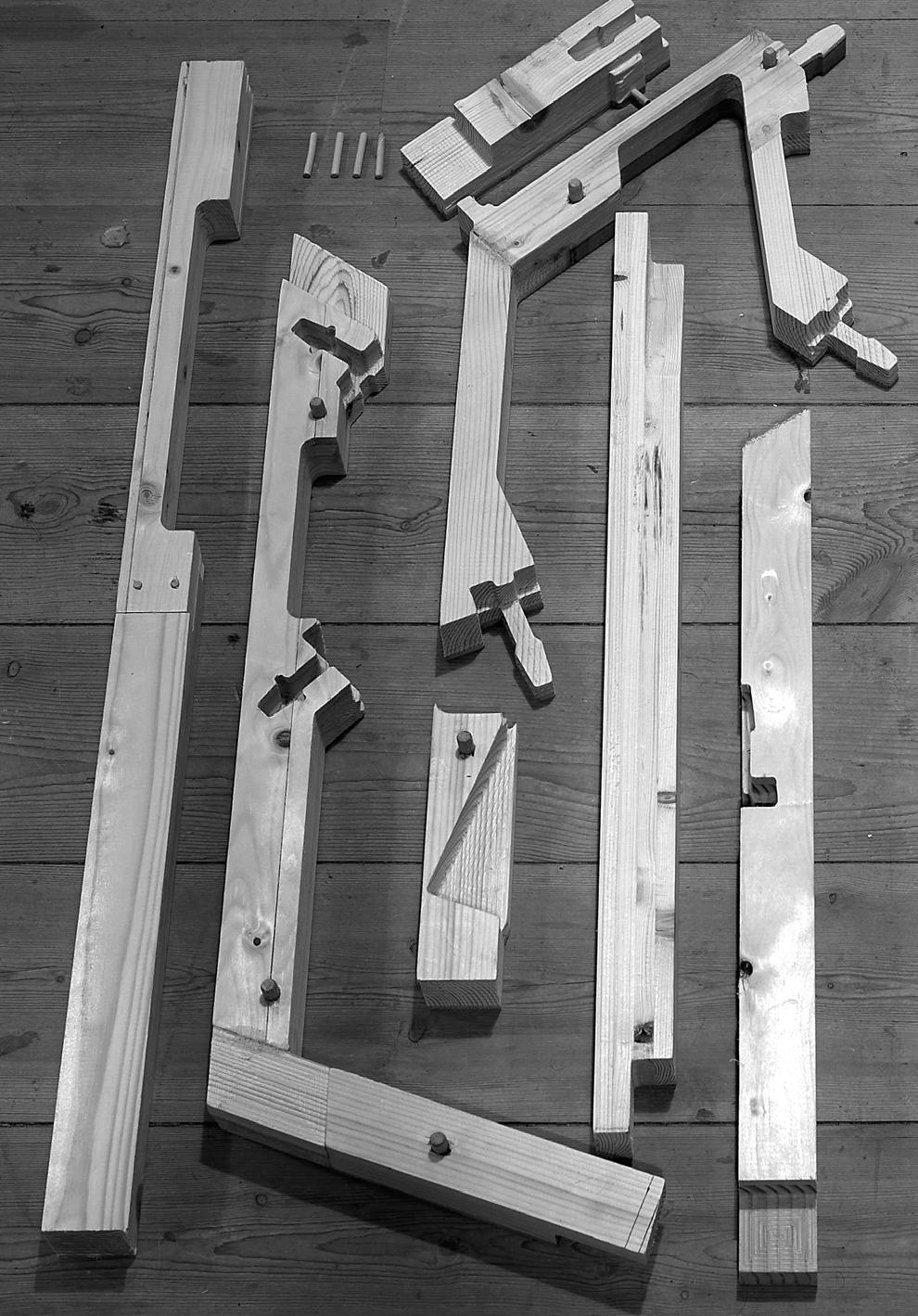

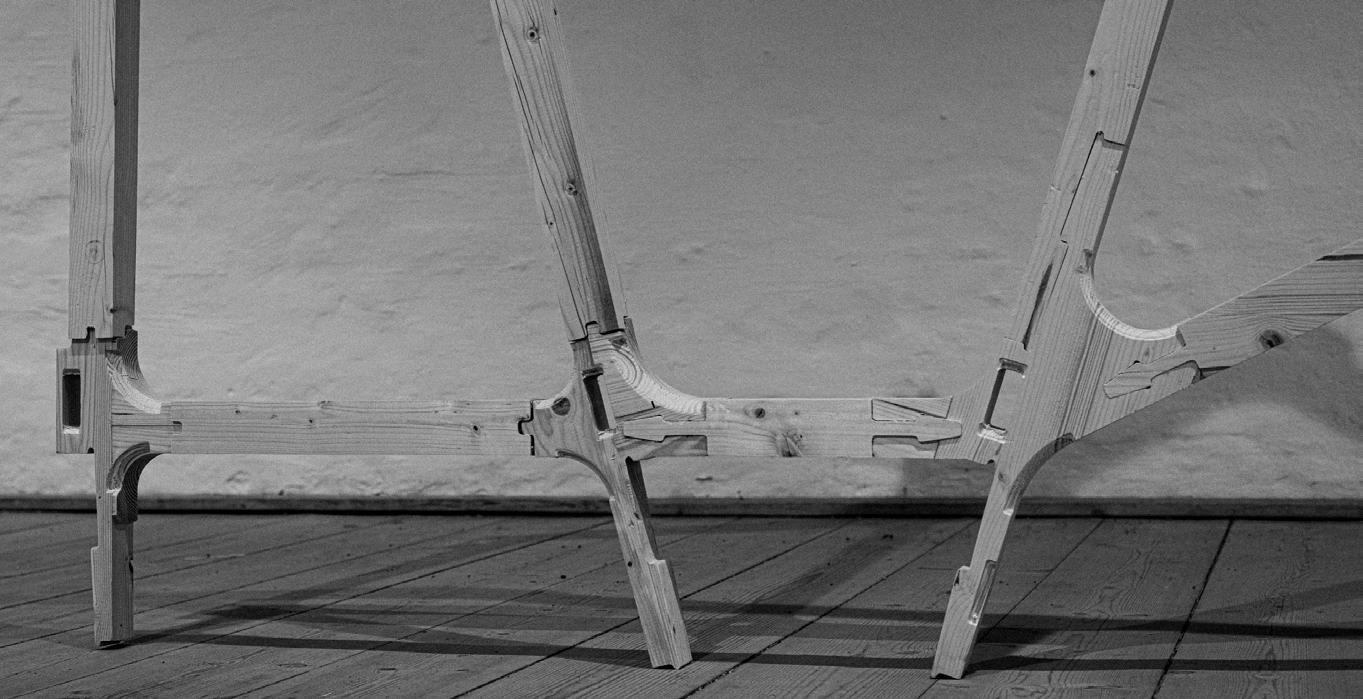

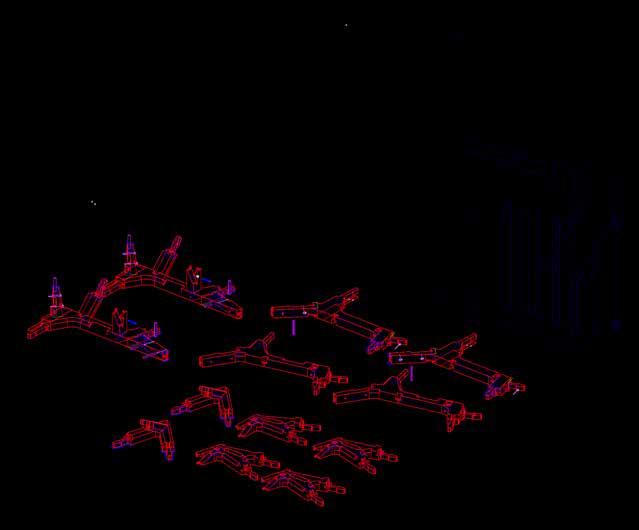

Timber frames are disassembled into individual elements. Each element is then scanned processed and updated in the database for the next cycle.
30
31

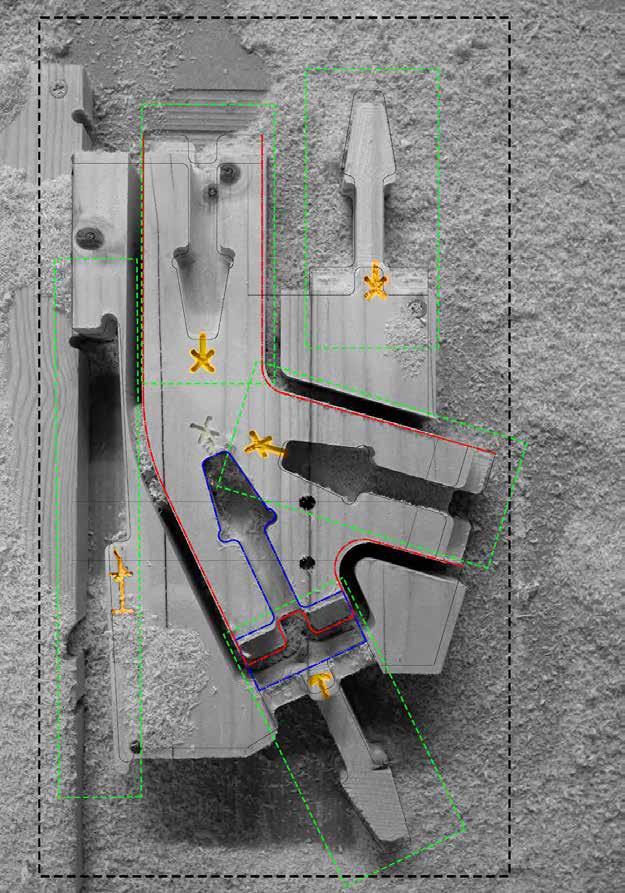

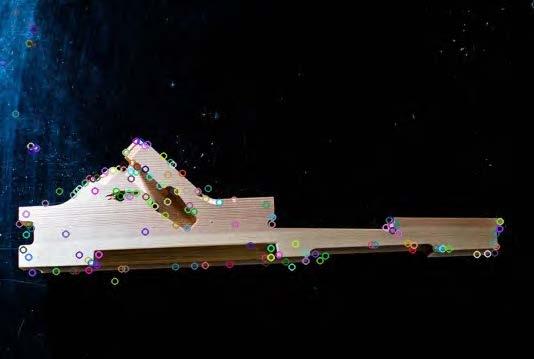

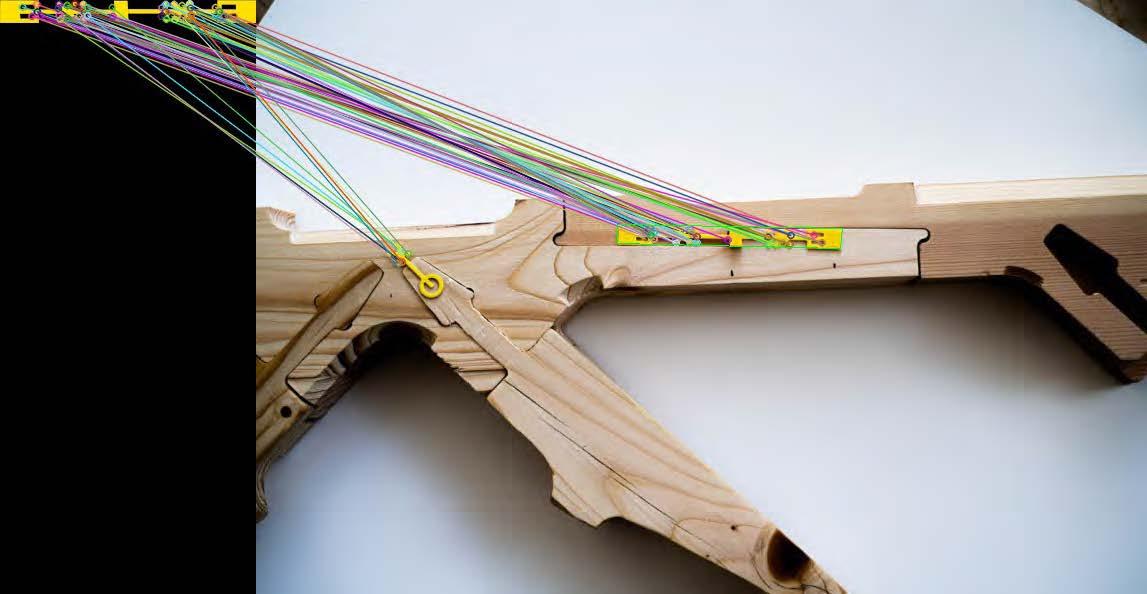

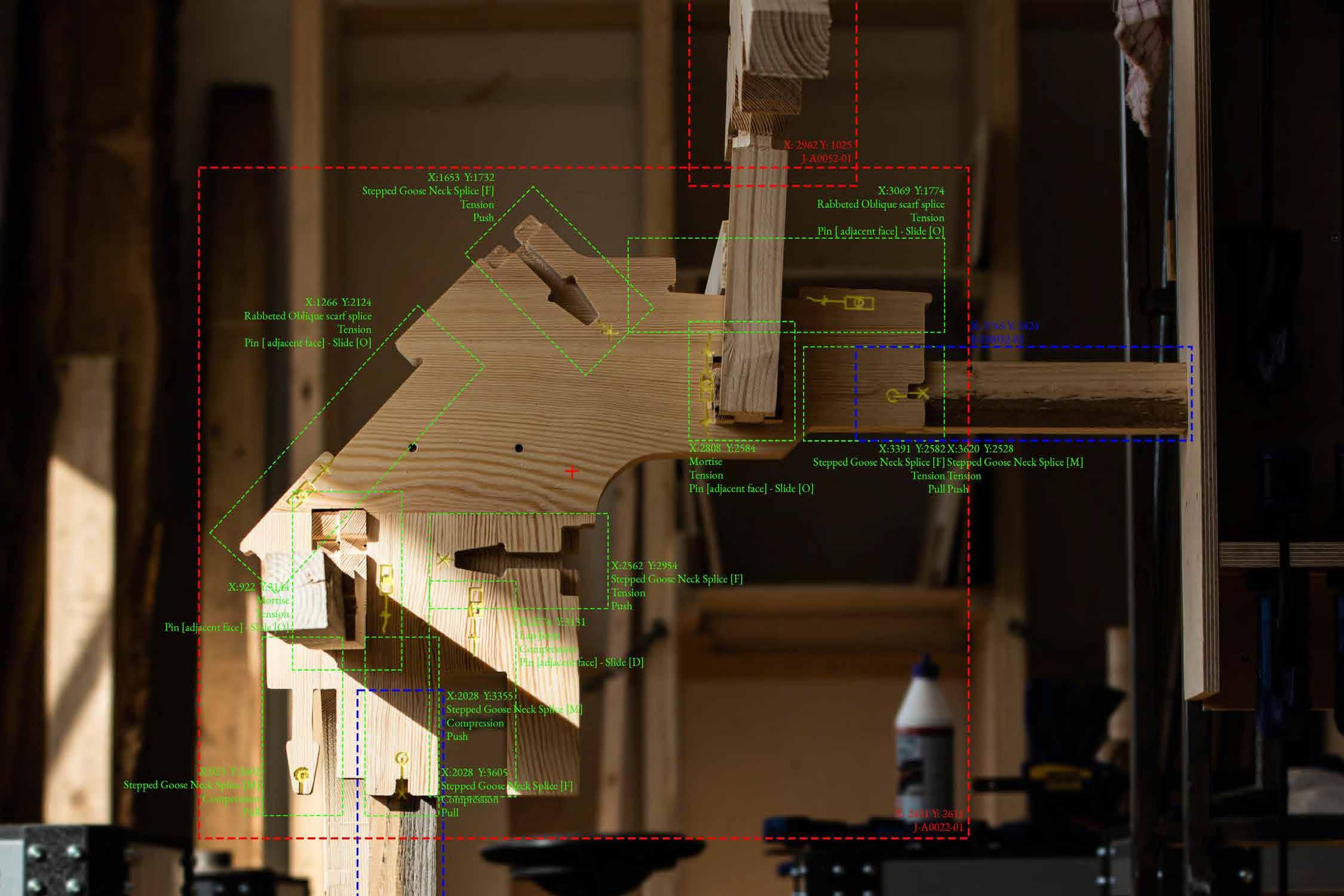

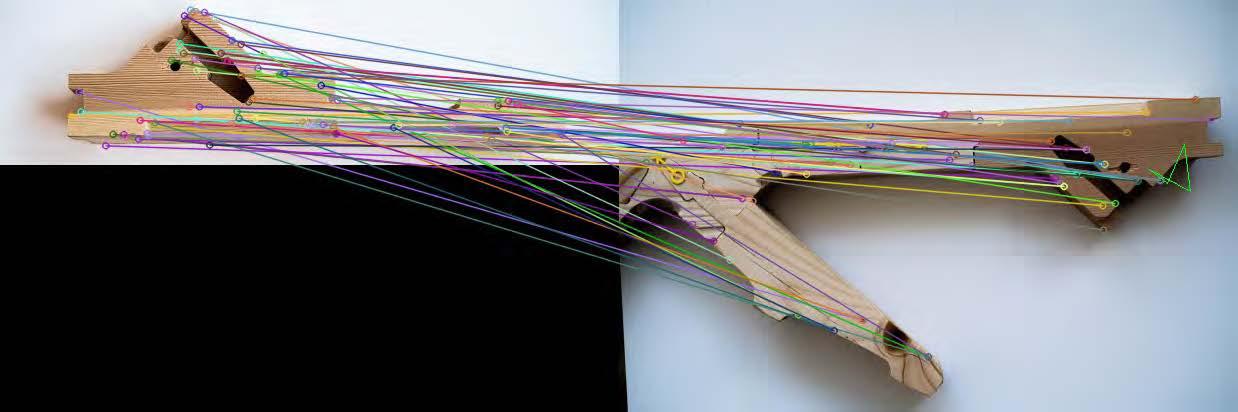

5.1. Digitalisation and tracking Computer vision

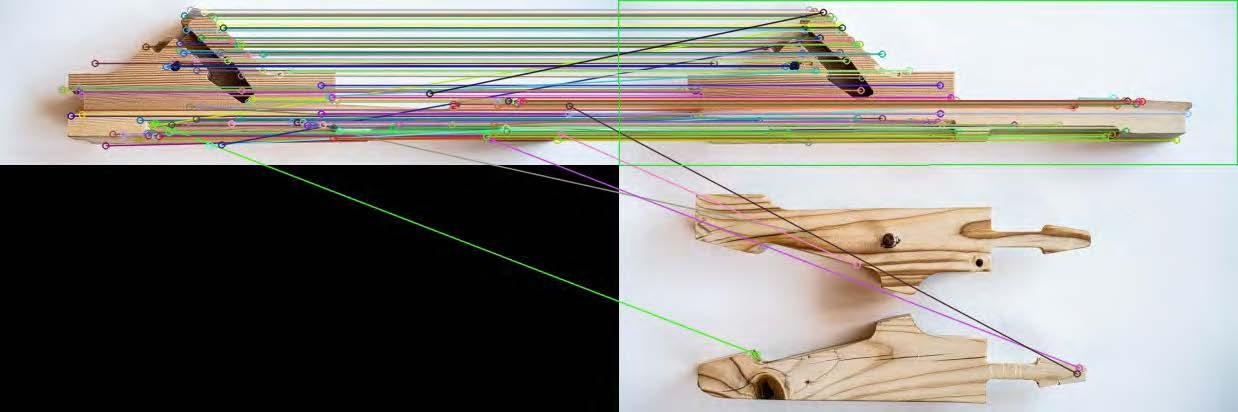

Original image (Data base)
Test image (Incomming)

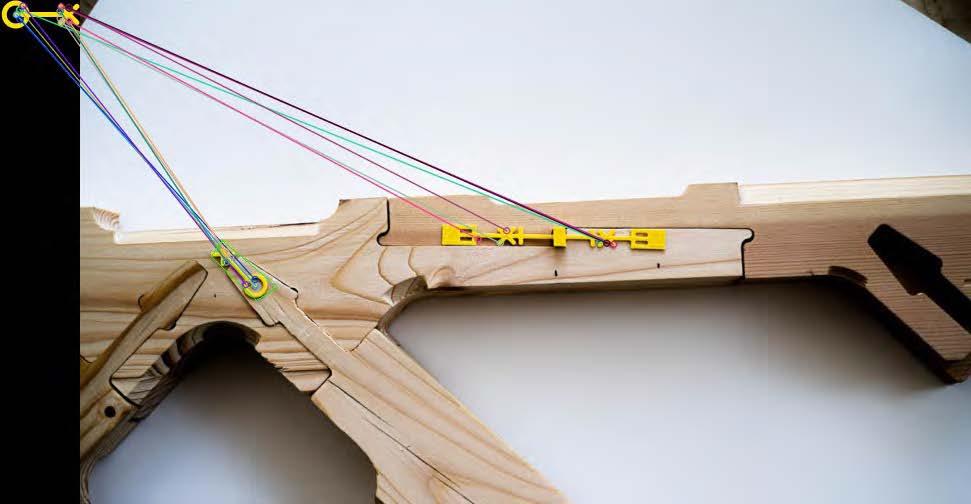

Using the unique grain pattern and geometric shape as key features it is possible identify individual elements and its orientation.
32
33

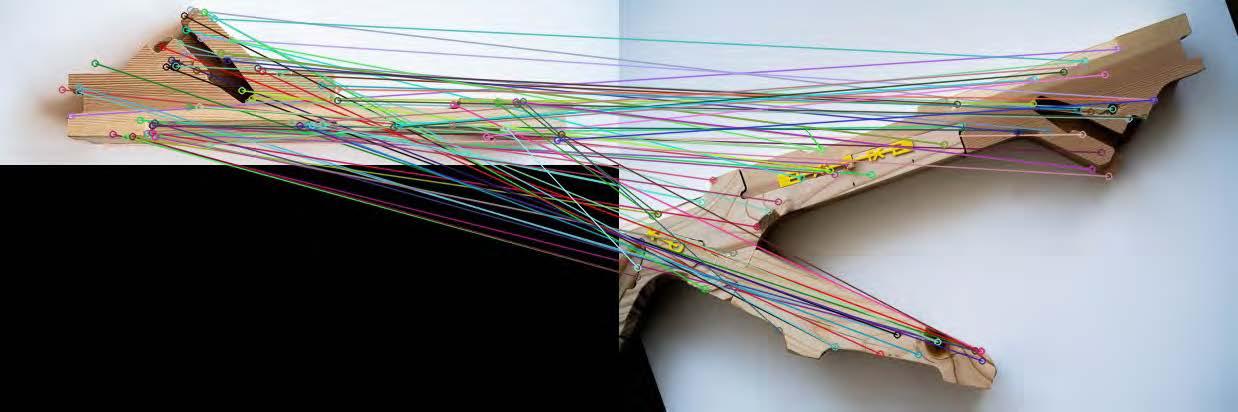

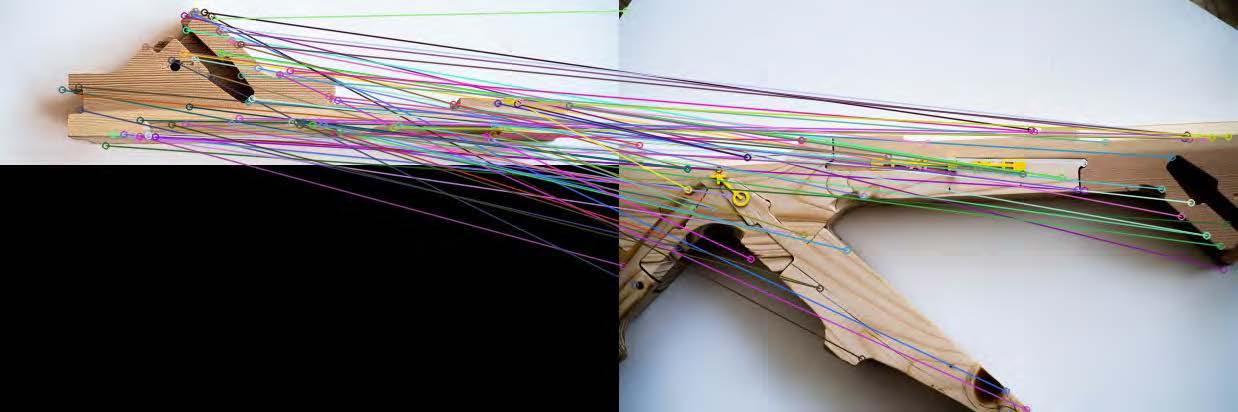

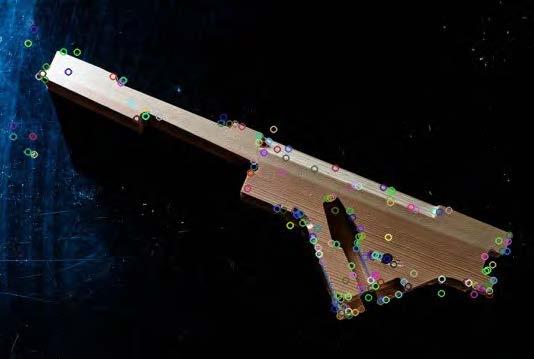

5.1. Digitalisation and tracking Computer vision

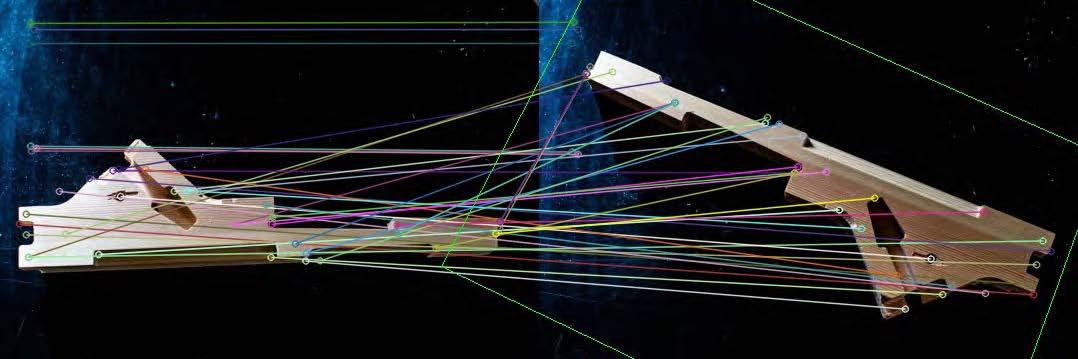

Original image (Data base)
Test image (Incomming)
Using the unique grain pattern and geometric shape as key features it is possible identify individual elements and its orientation.
34
35
5.2. Digitalisation and tracking Computer vision
36
37

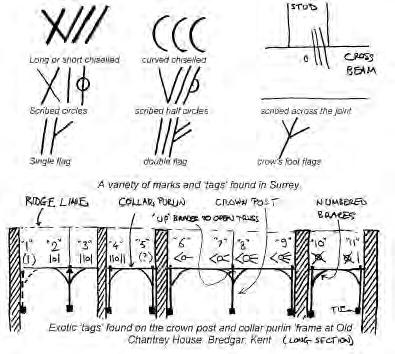

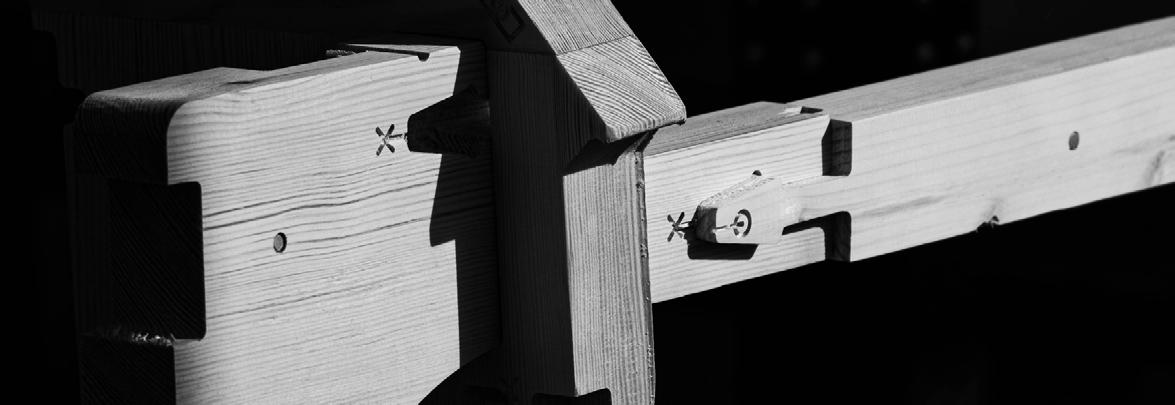

5.2. Markings Computer vision - Identification - Instruction

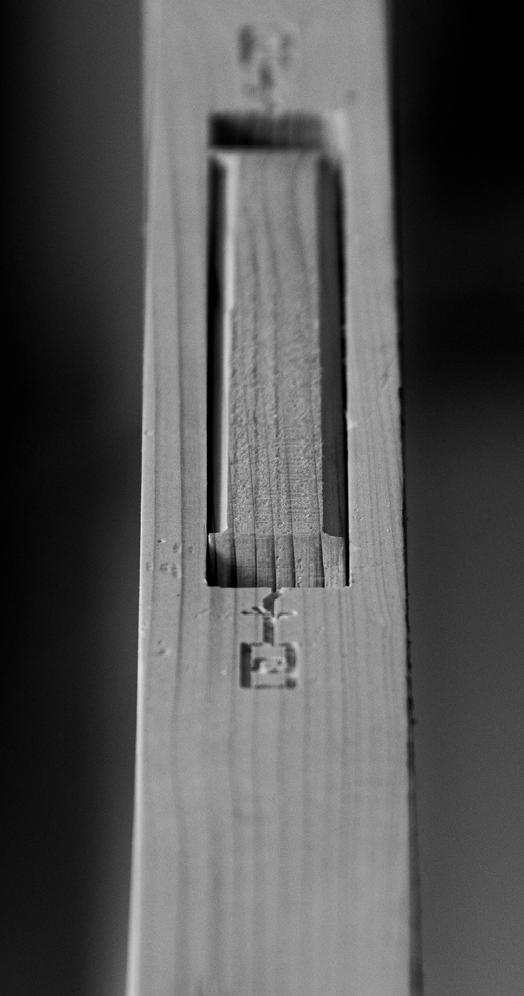

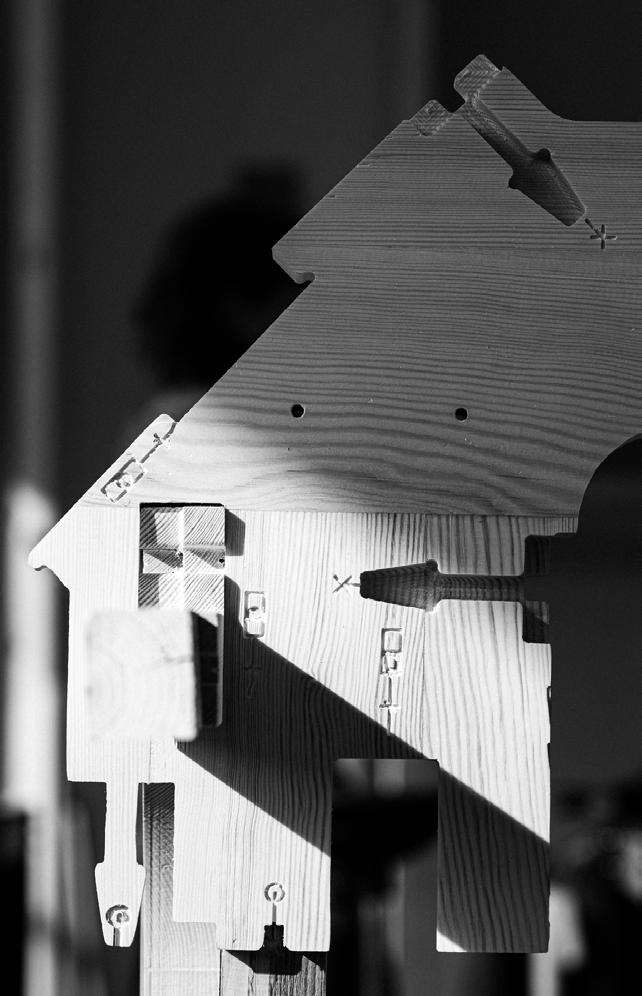

38
39
5.2. Markings Computer vision - Identification - Instruction
40
41
5.2. Markings Computer vision - Identification - Instruction
42
43
5.1. Digitalisation and tracking Computer vision
44
45
5.1. Digitalisation and tracking Cupped Knot Holes
Checks
Knots
Shakes
Wane
Spills
Twisted Bowed
Longitudinal shrinkage 0.1% - 0.3%
Crooked
Radial shrinkage 2%-6%
Tangential shrinkage 5% - 10%
Checks
Shakes
Spills
Knot Holes
Knots
Wane
*Typical oven-dry shrinkage values for medium density woods ** At the range of 8-15% moisture content. The shrinkage will then be only a half to three-quarters of the oven-dry shrinkage value - Walker and Walker 2006 46
47 Cupped
Twisted
Bowed
Crooked
5.3. Material behaviour
48
49
6. Multi phase elements
Degraded
None
Finishing
Tension
Compression
Above: Mapping of joint roles changing over multiple cycles of reconfiguration and re-machining with new functions.
50
51
6. Multi phase elements (a) Additive
(b) Subtractive
n0
n +1
n +2
n +3
52
53
6.1. Additive
54
55
6.1. Additive
56
57

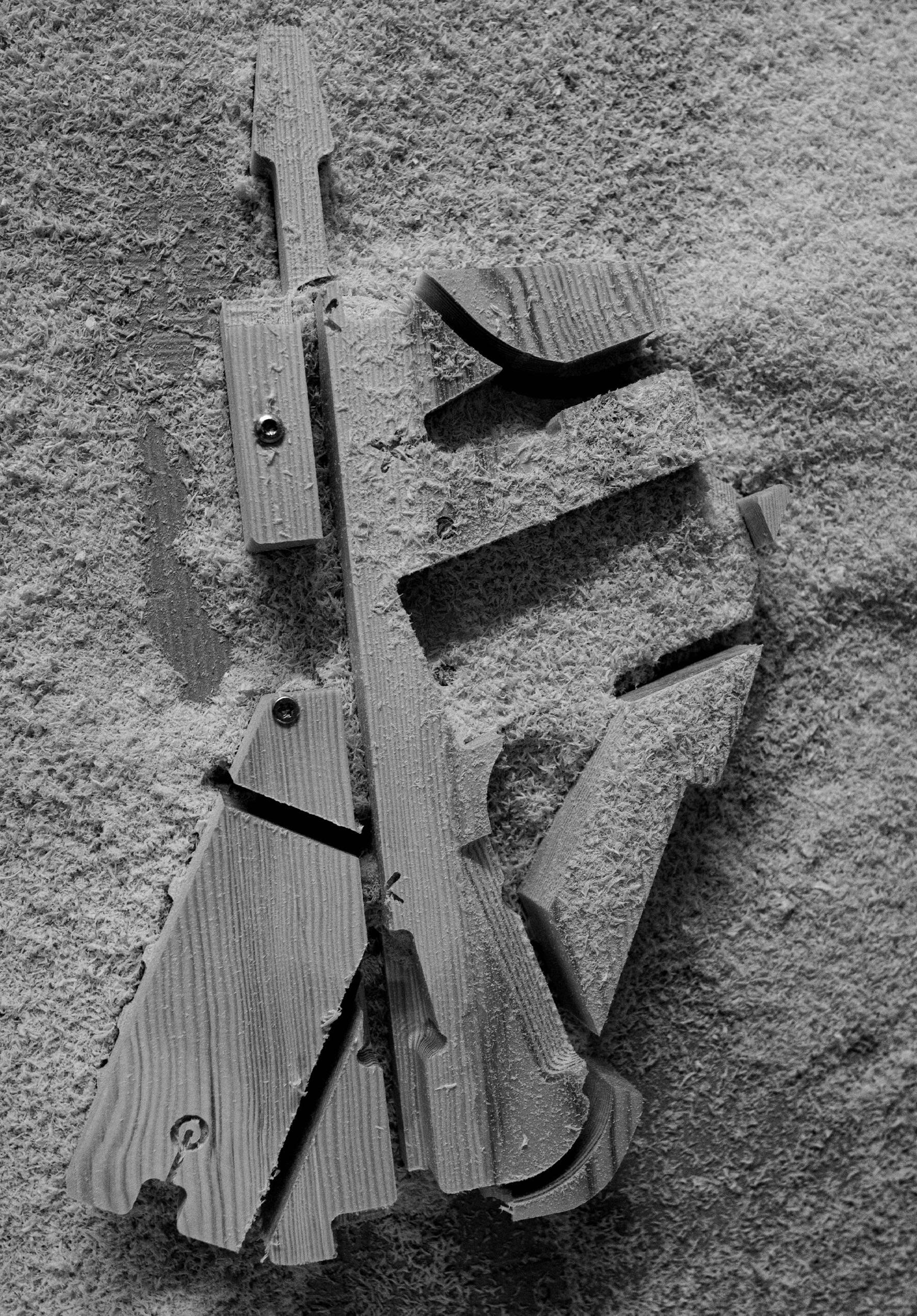

6.2. Subtractive
n0
n +1
n +2
n +3
58
59
6.2. Subtractive
60
61

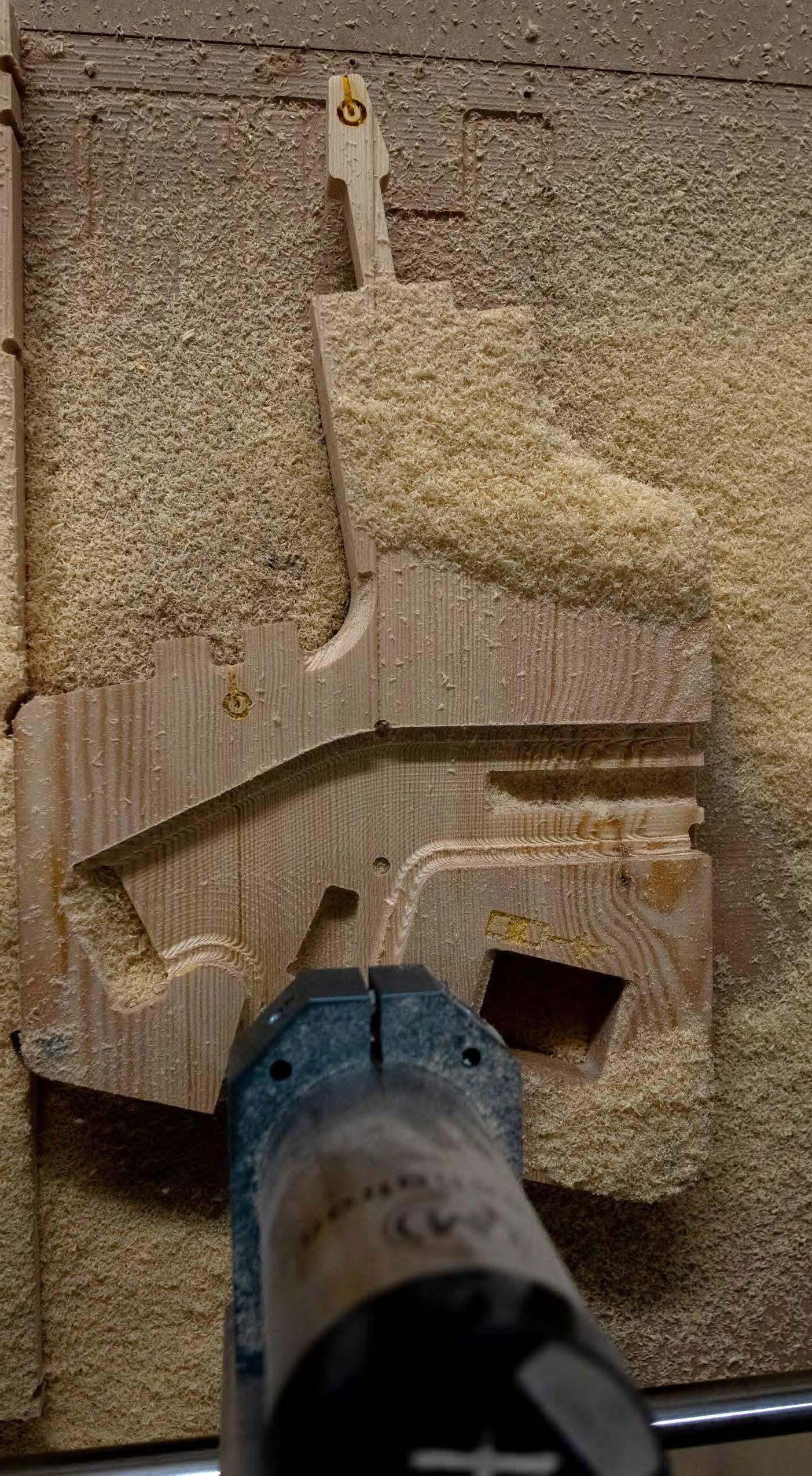

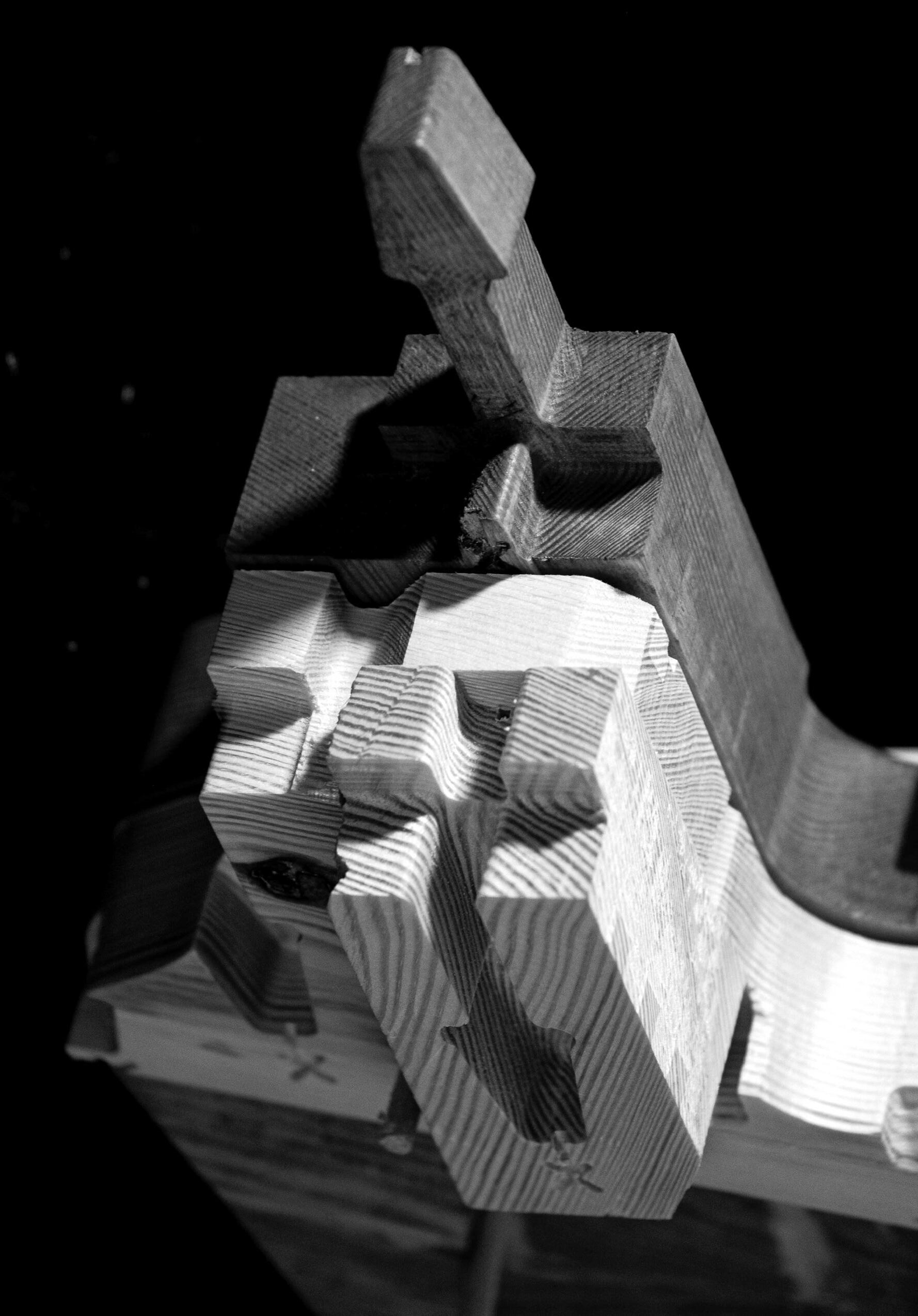

6.2.1. Re-machining
62
63

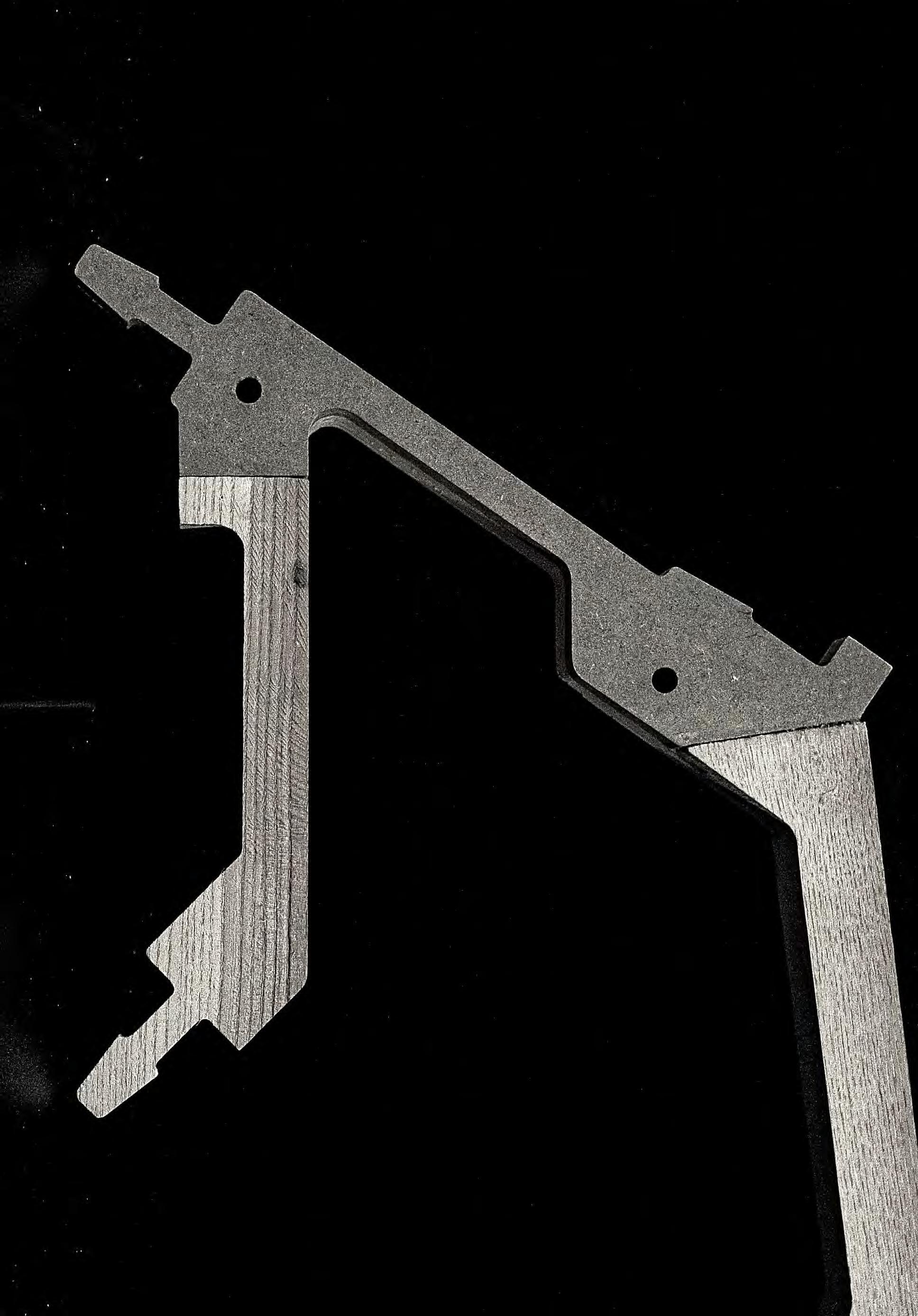

6.2.2. Grain direction
n0
n0
n +1
n +1
n +2
n +2
64
65

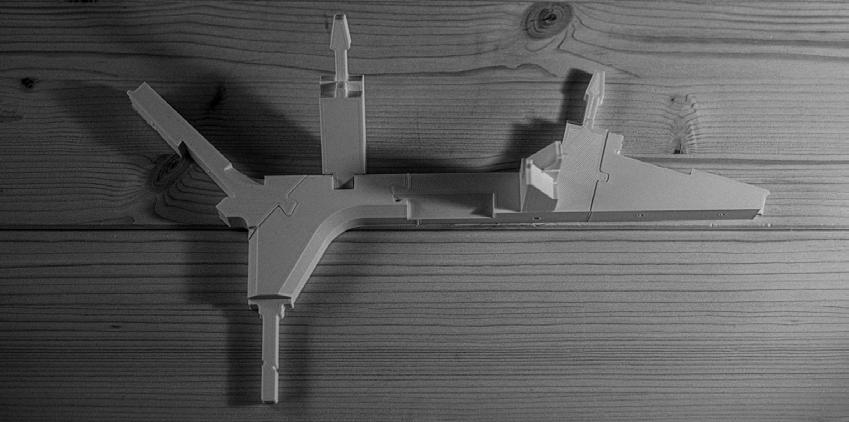

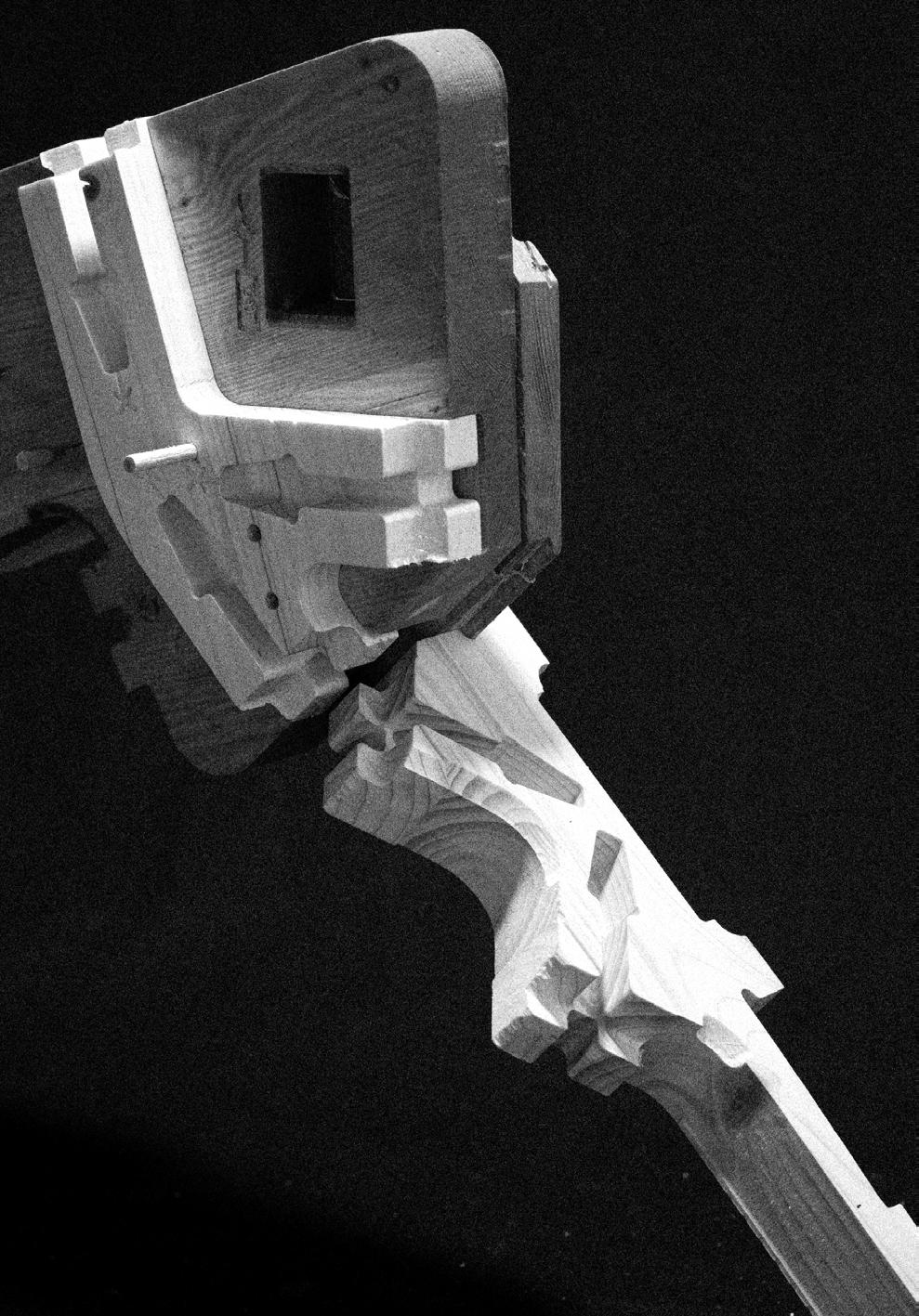

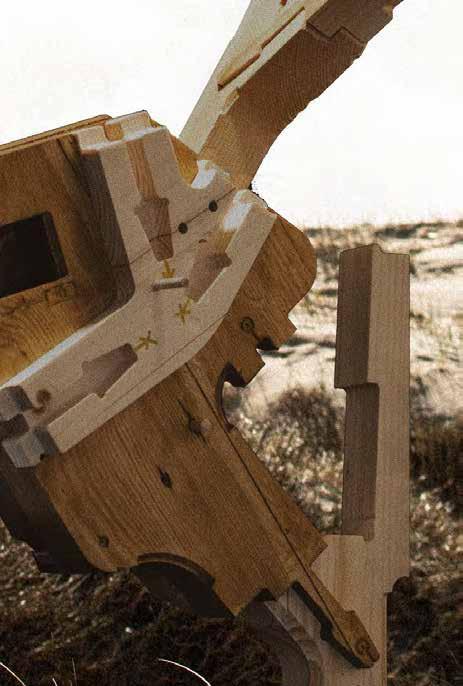

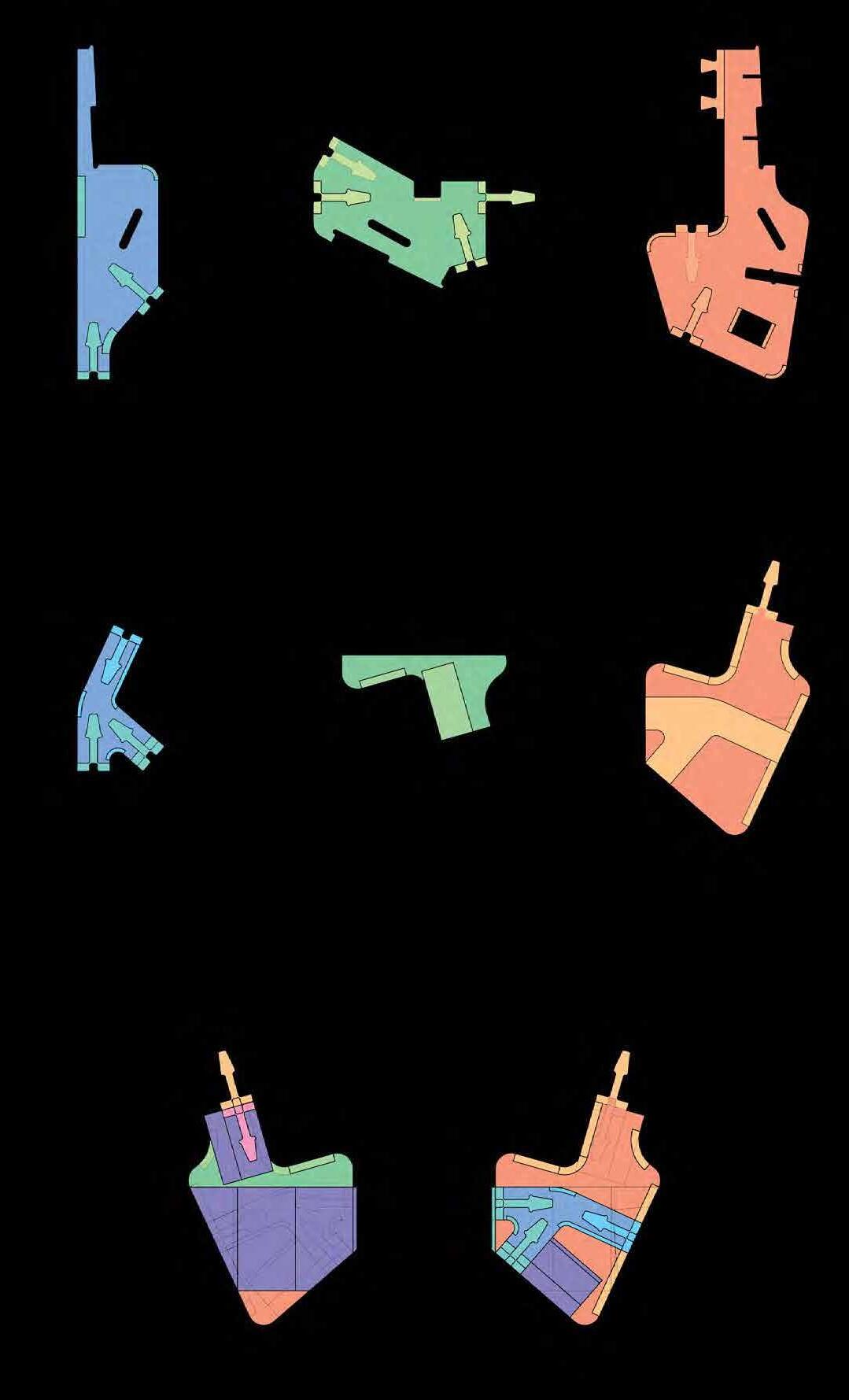

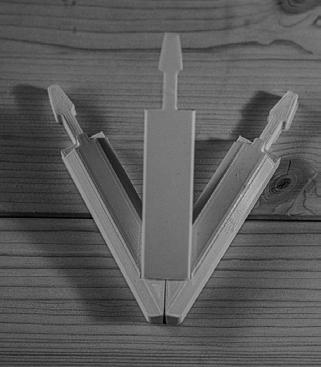

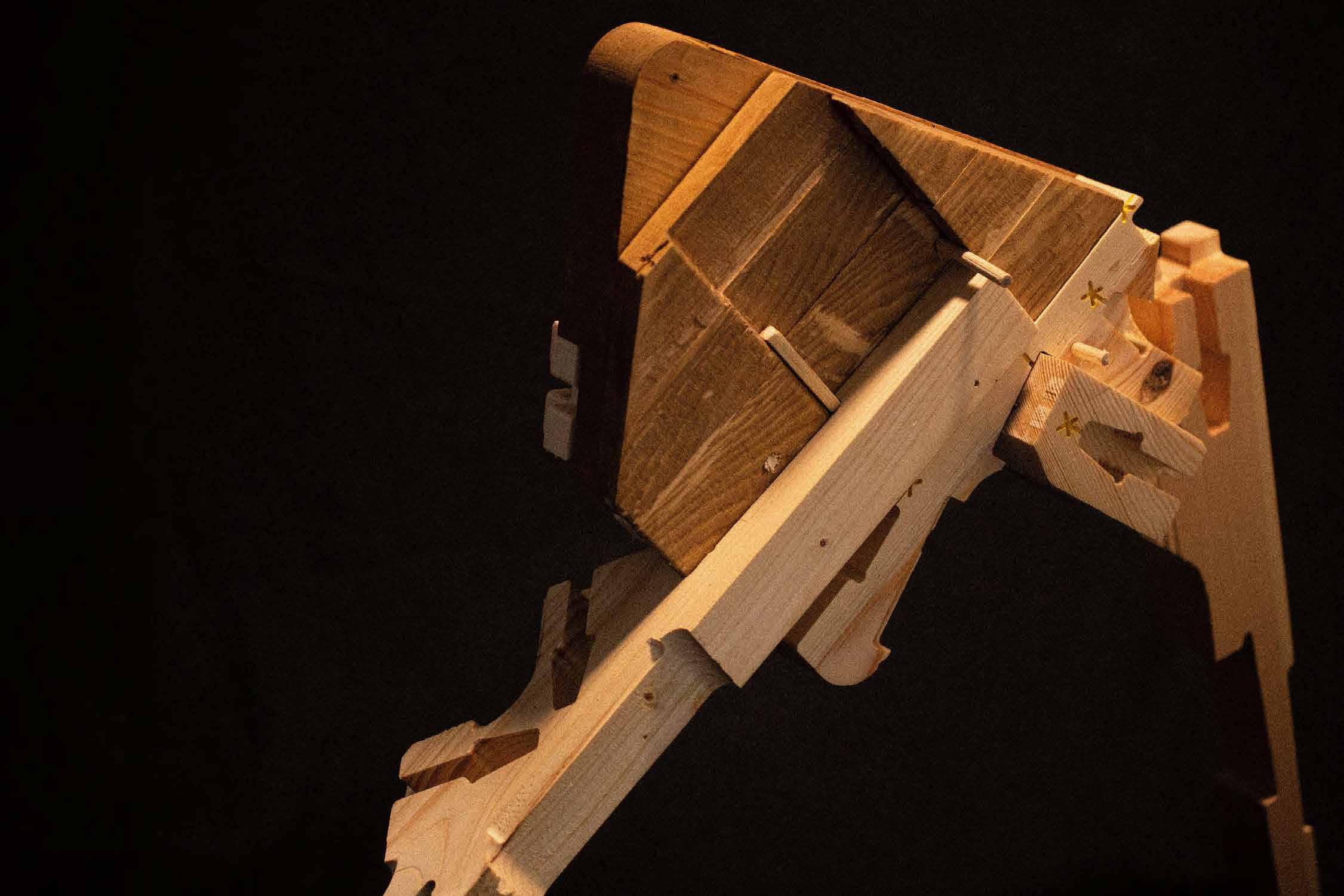

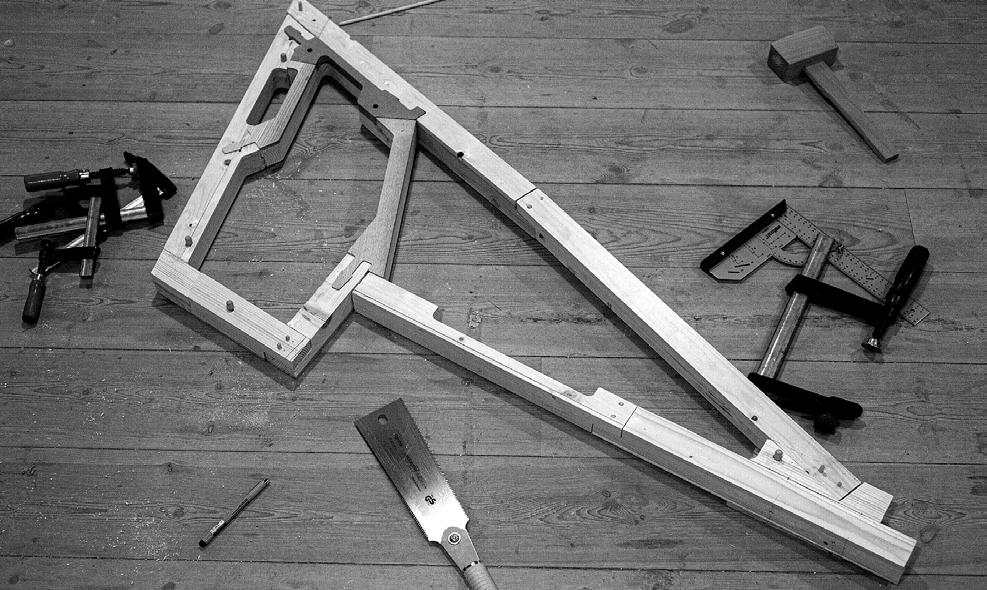

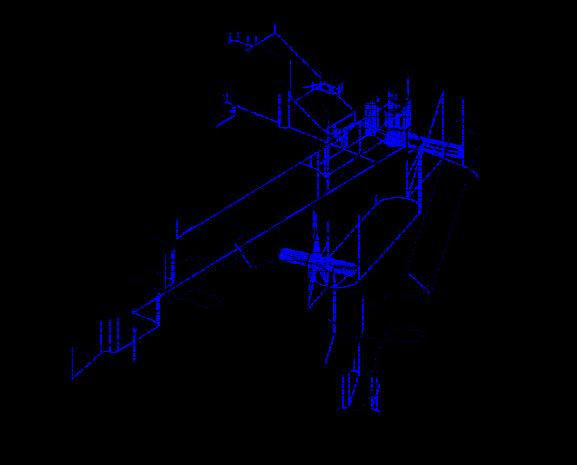

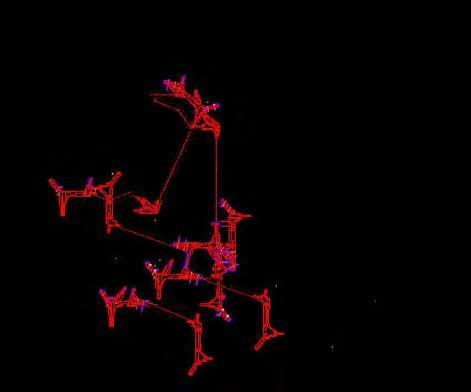

6.3. Aggregation of parts
66
67
68
69

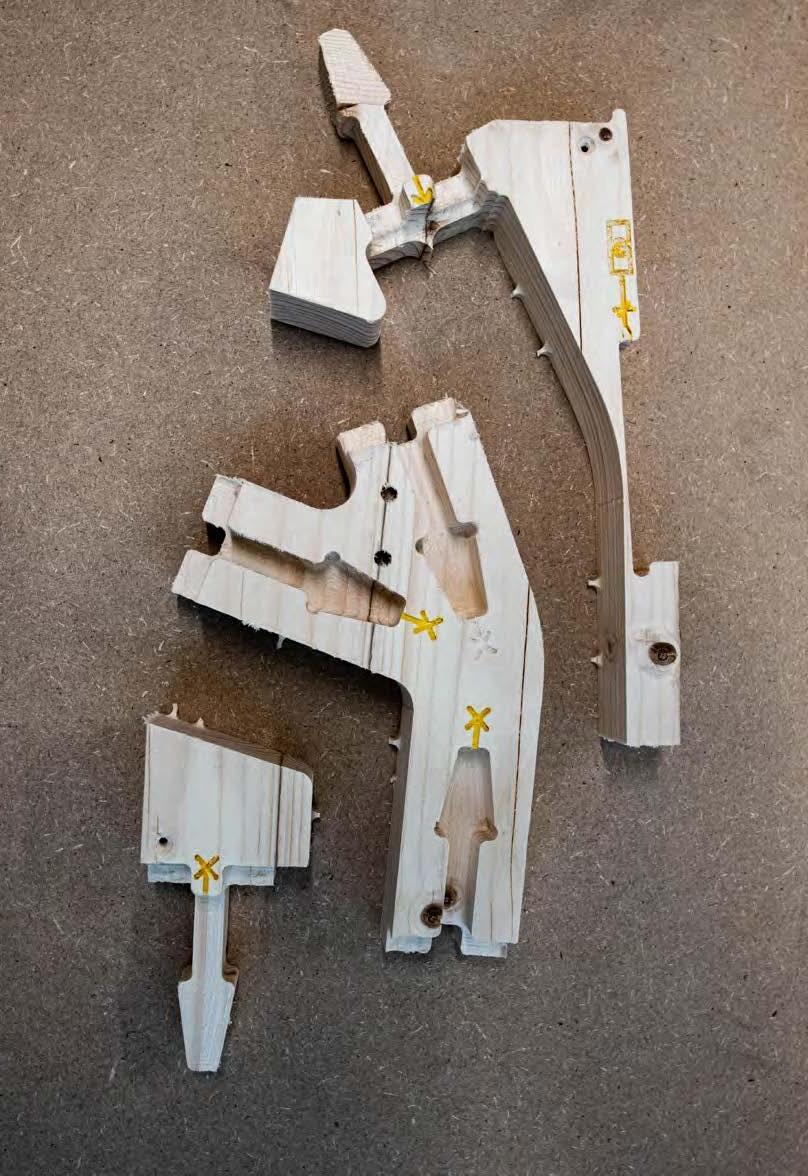

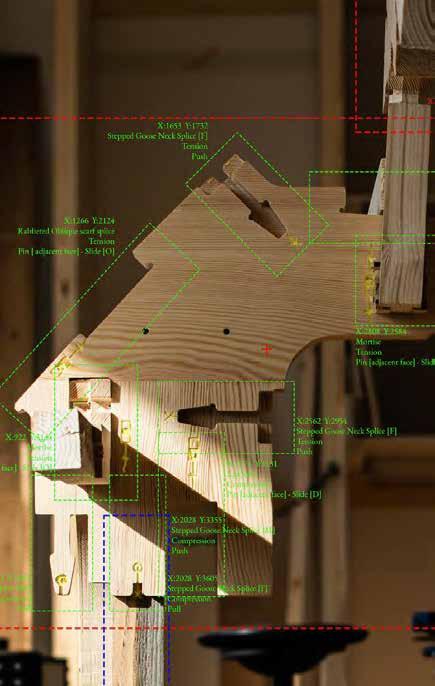

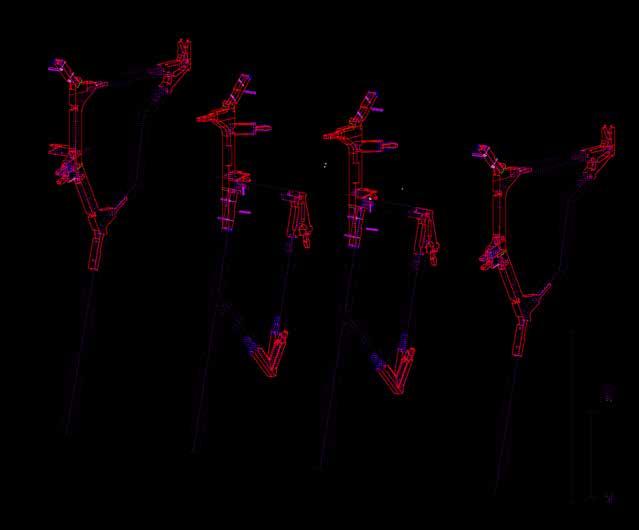

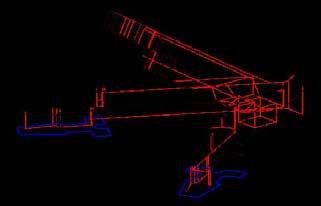

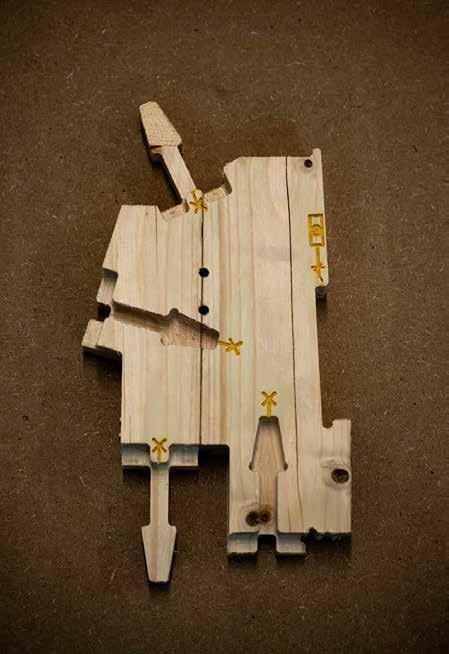

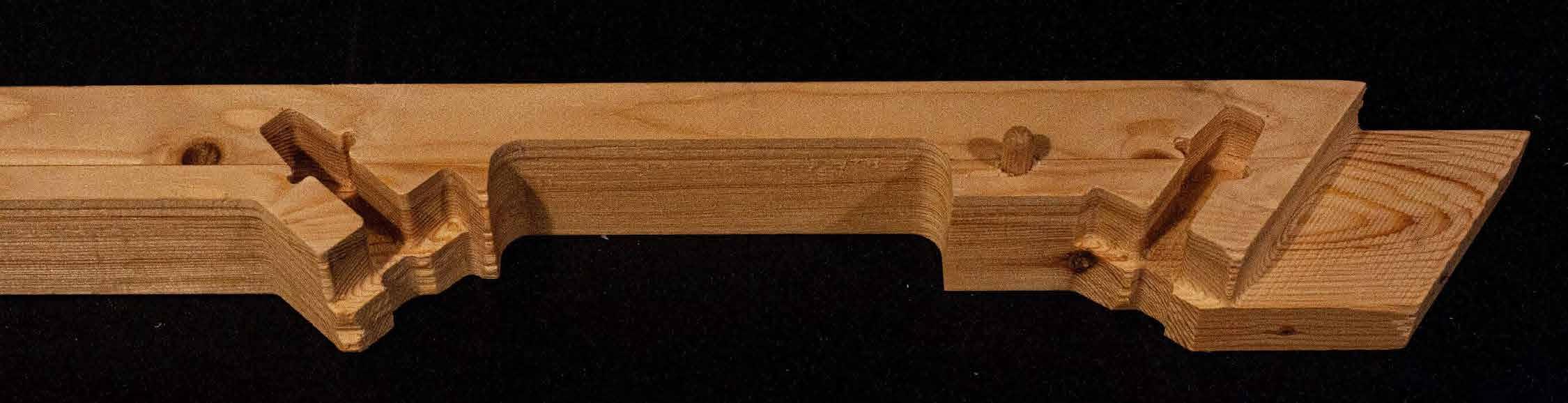

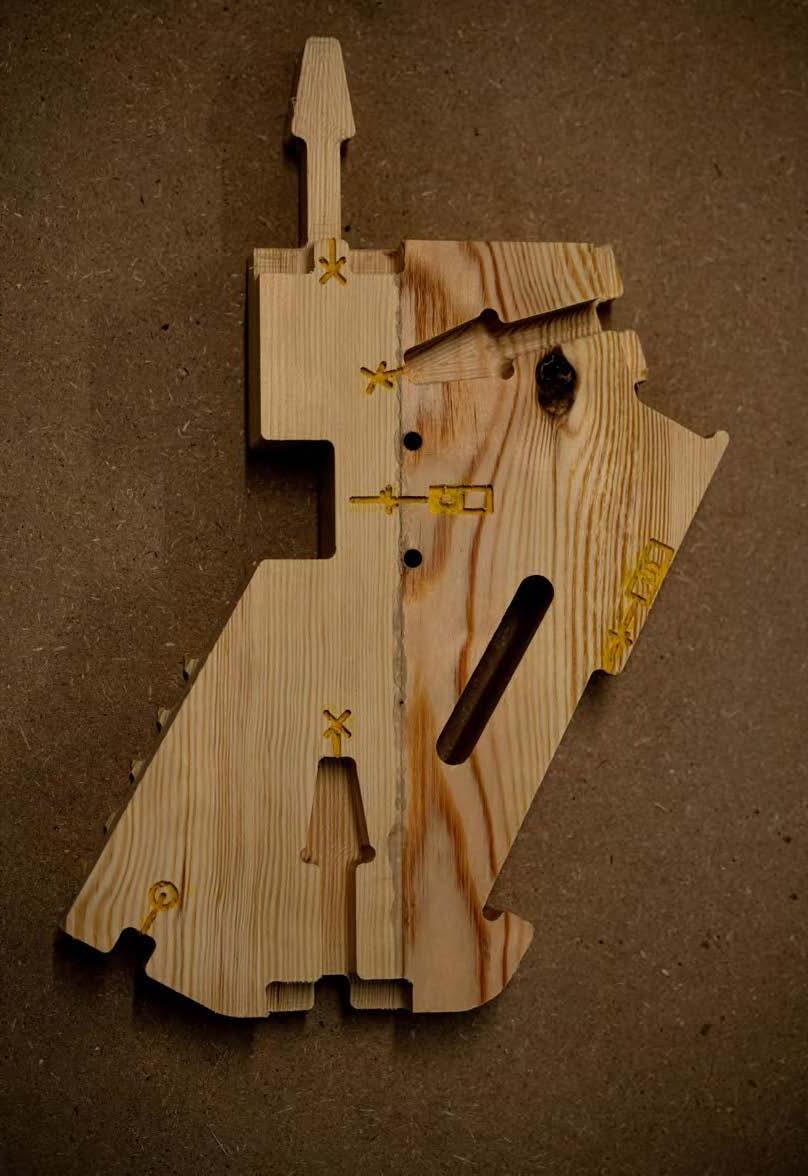

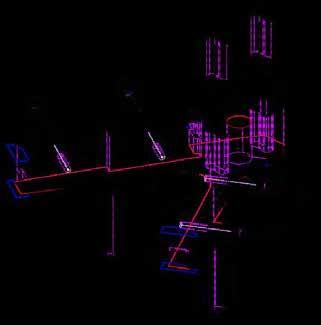

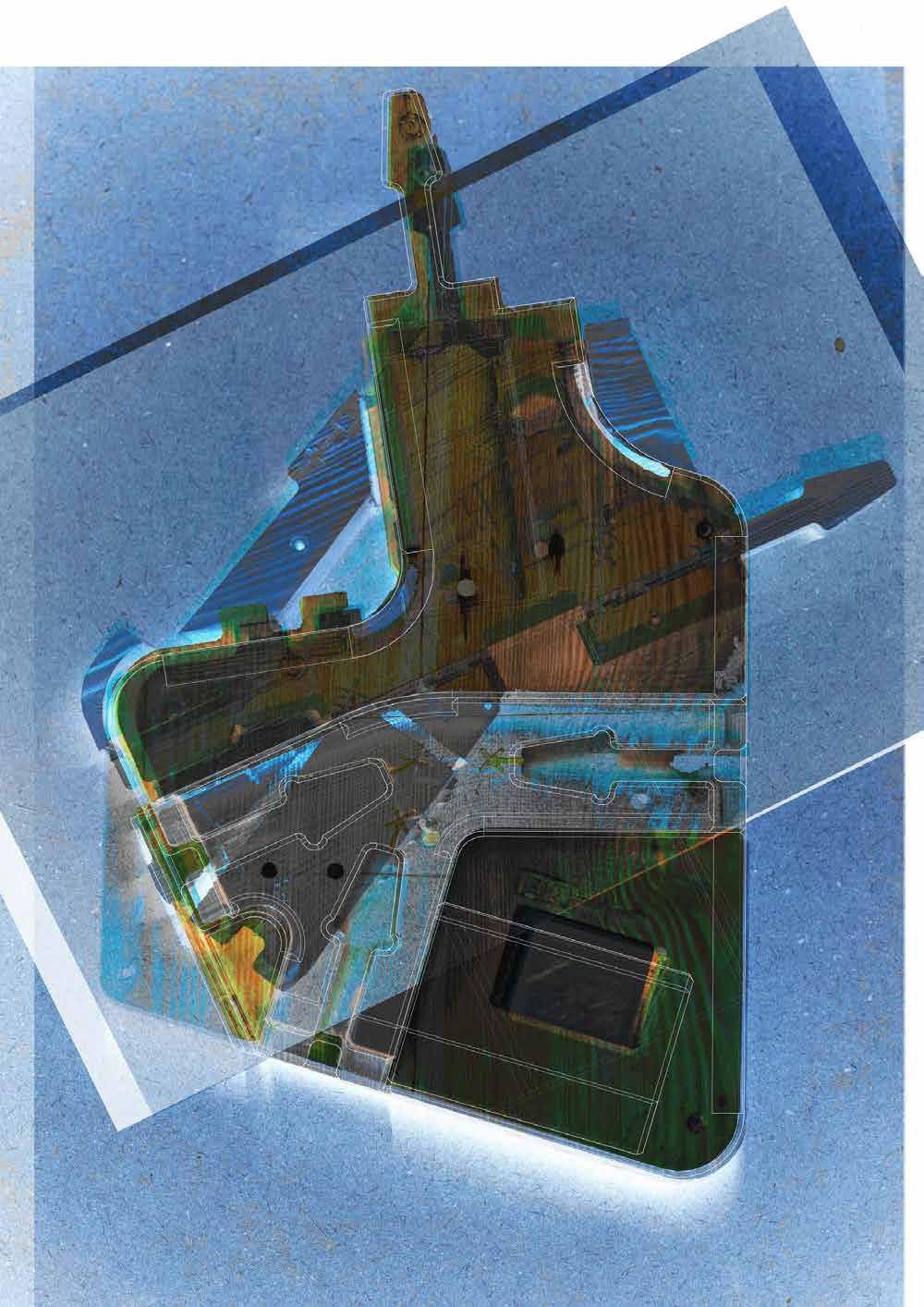

An overlay of the history of all the joints the make up this element 70

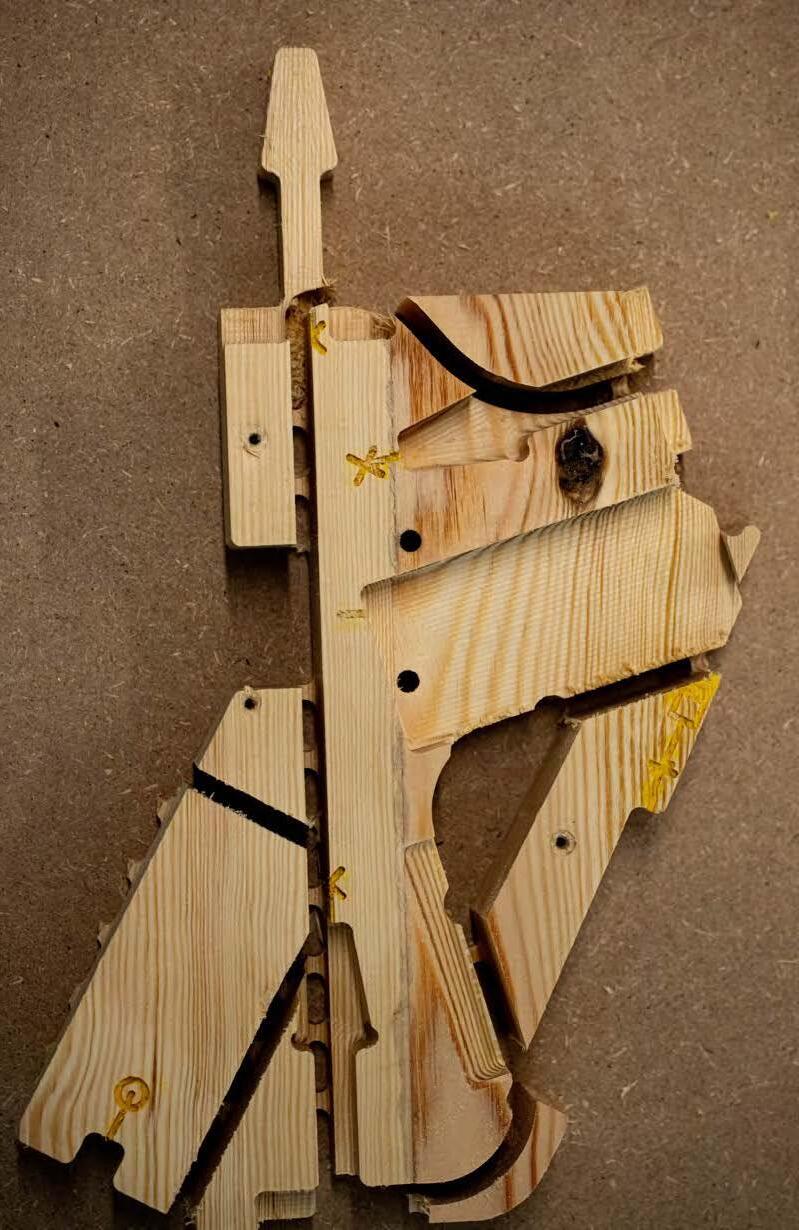

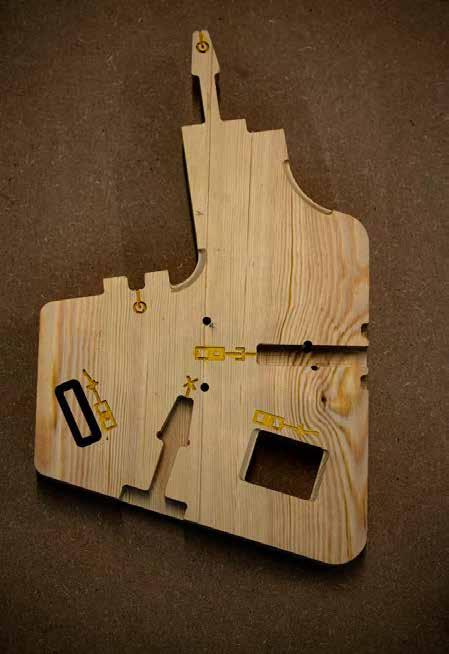

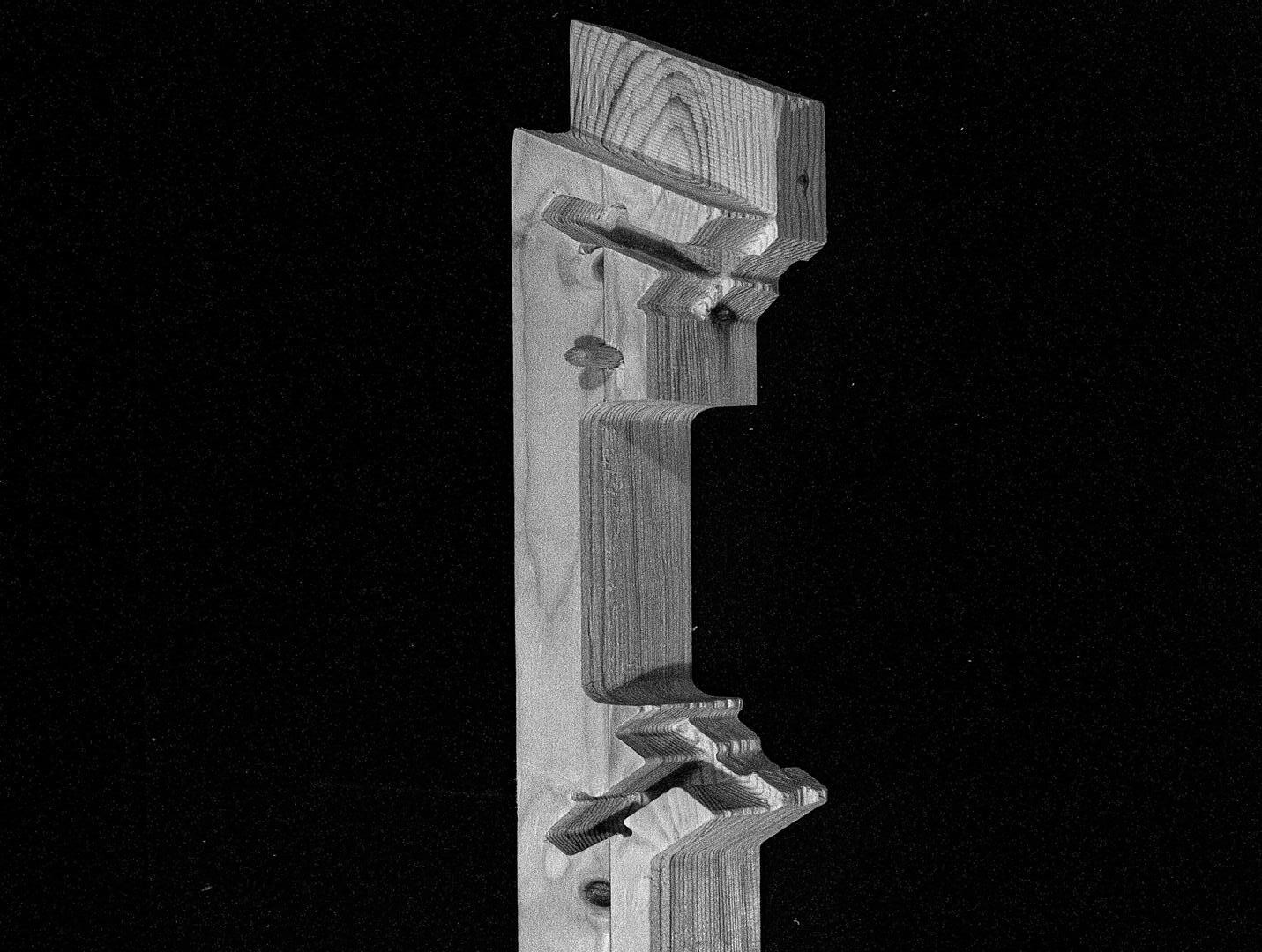

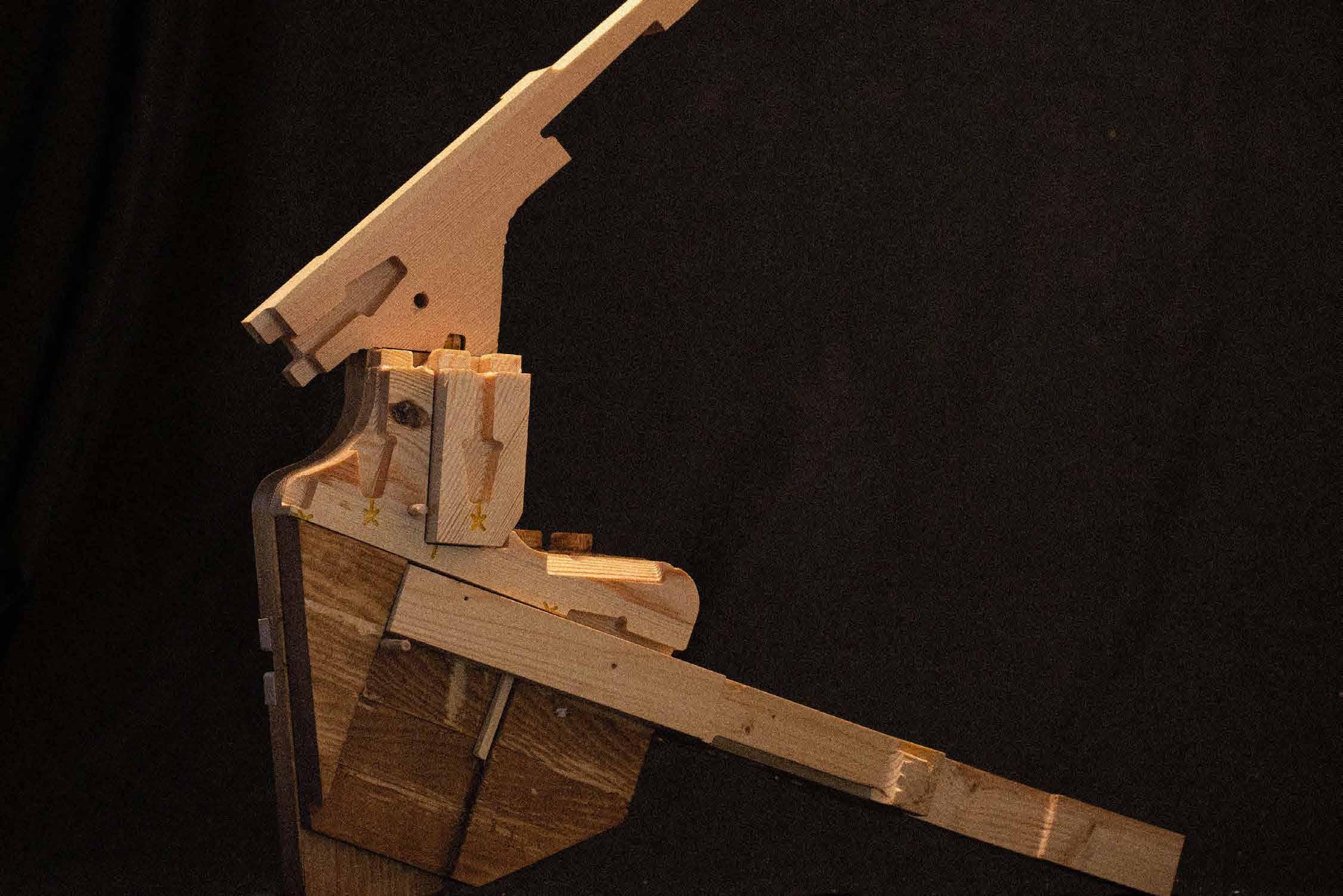

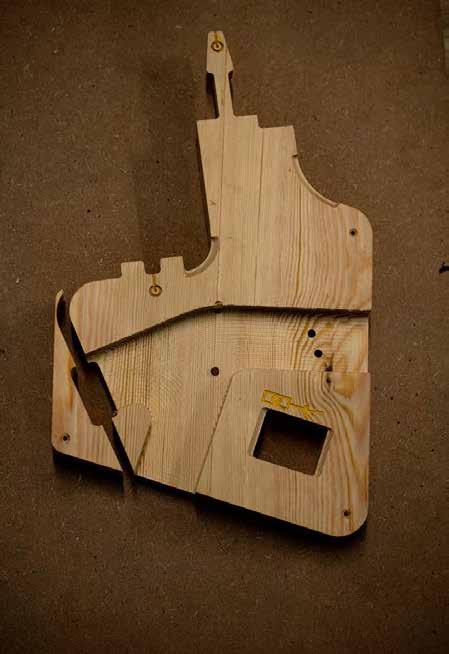

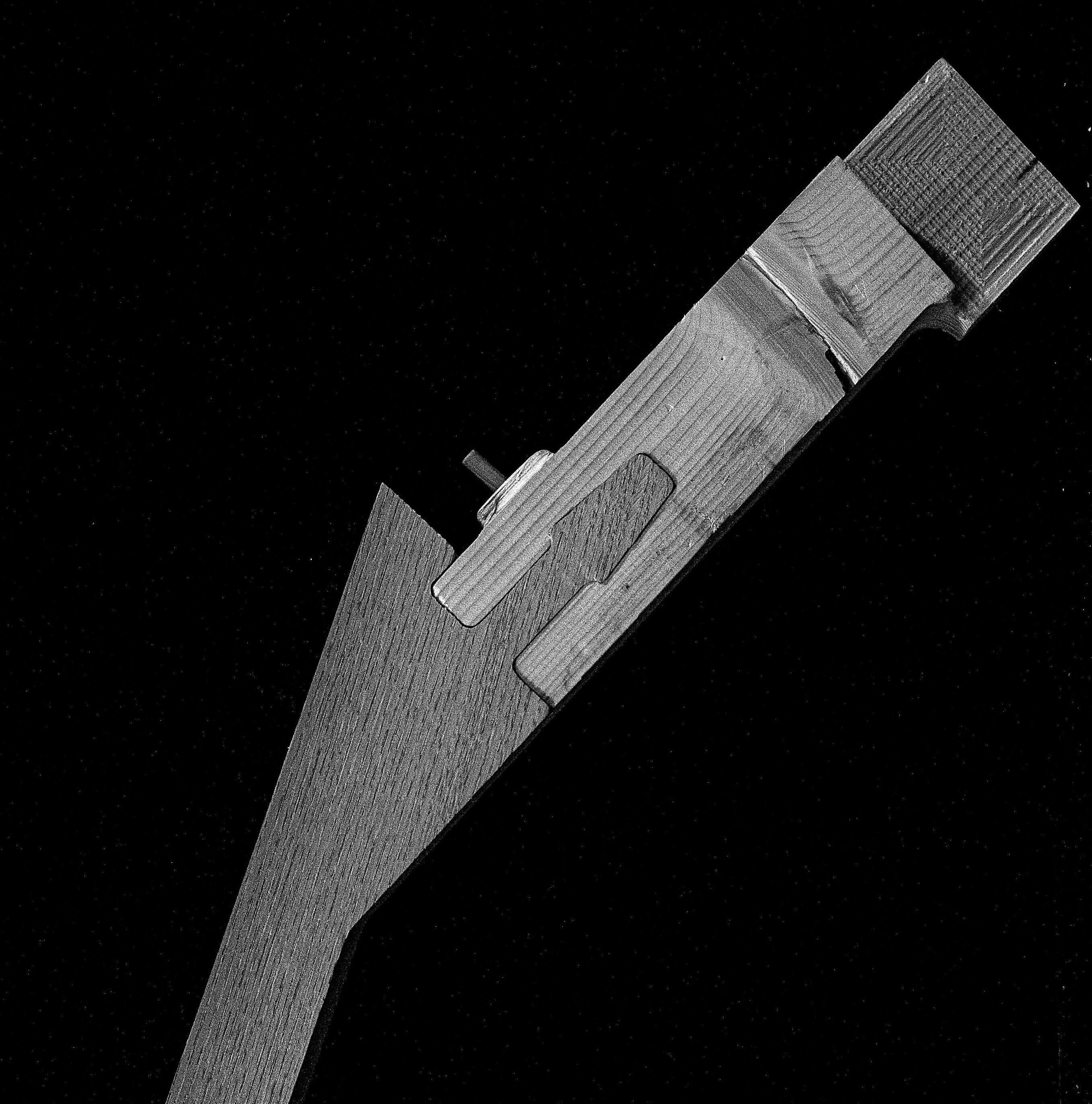

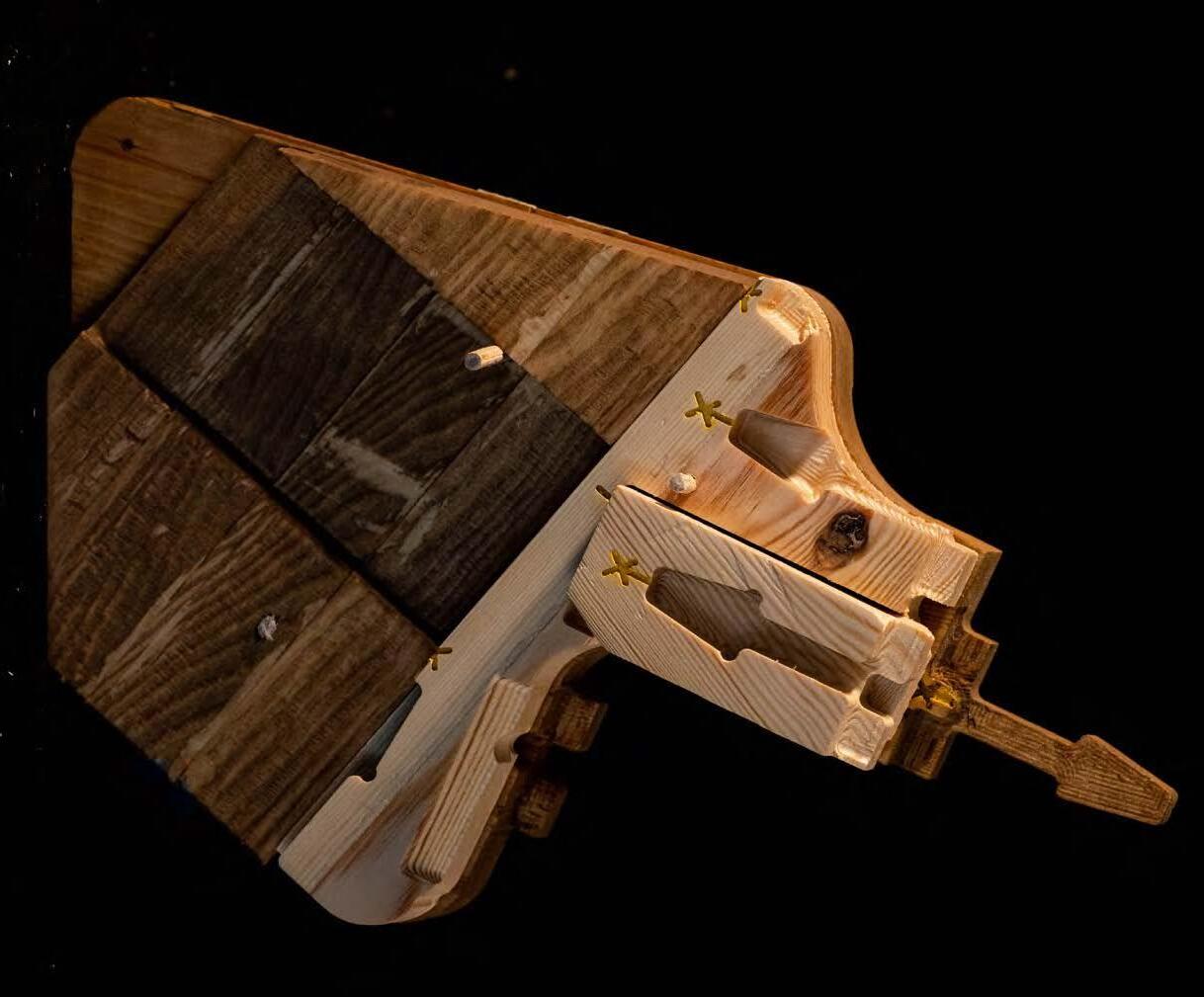

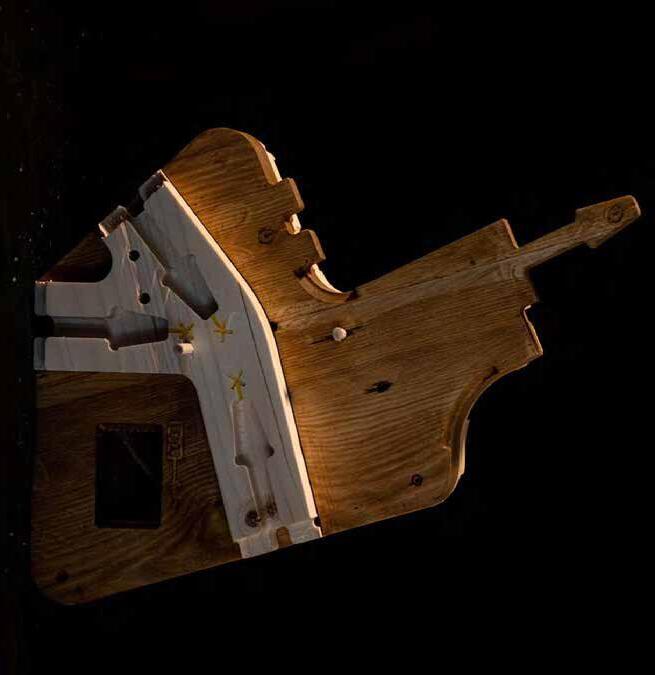

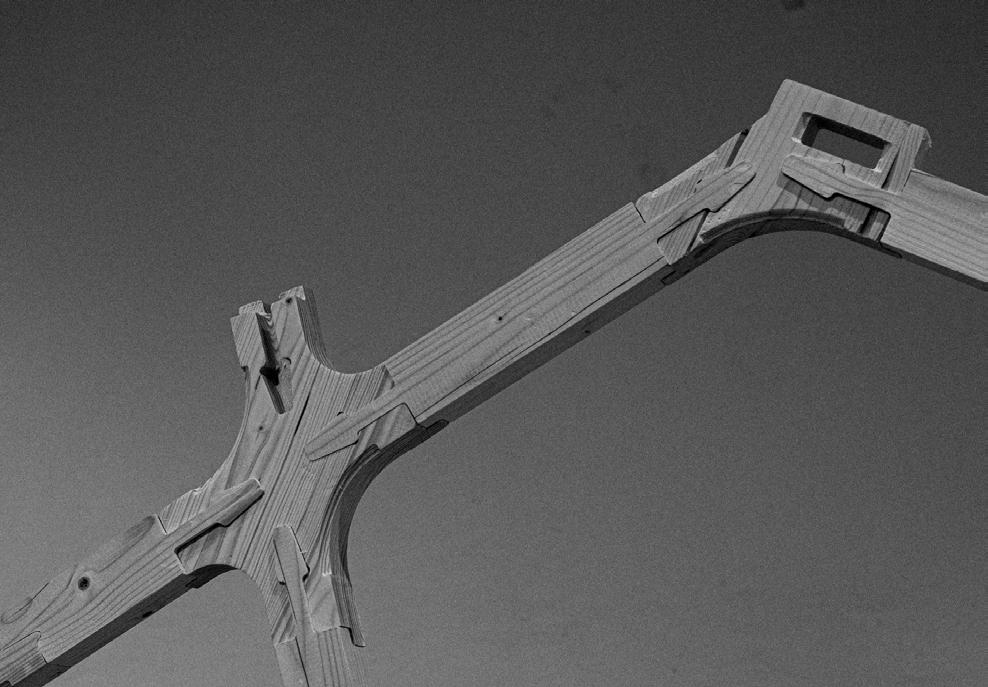

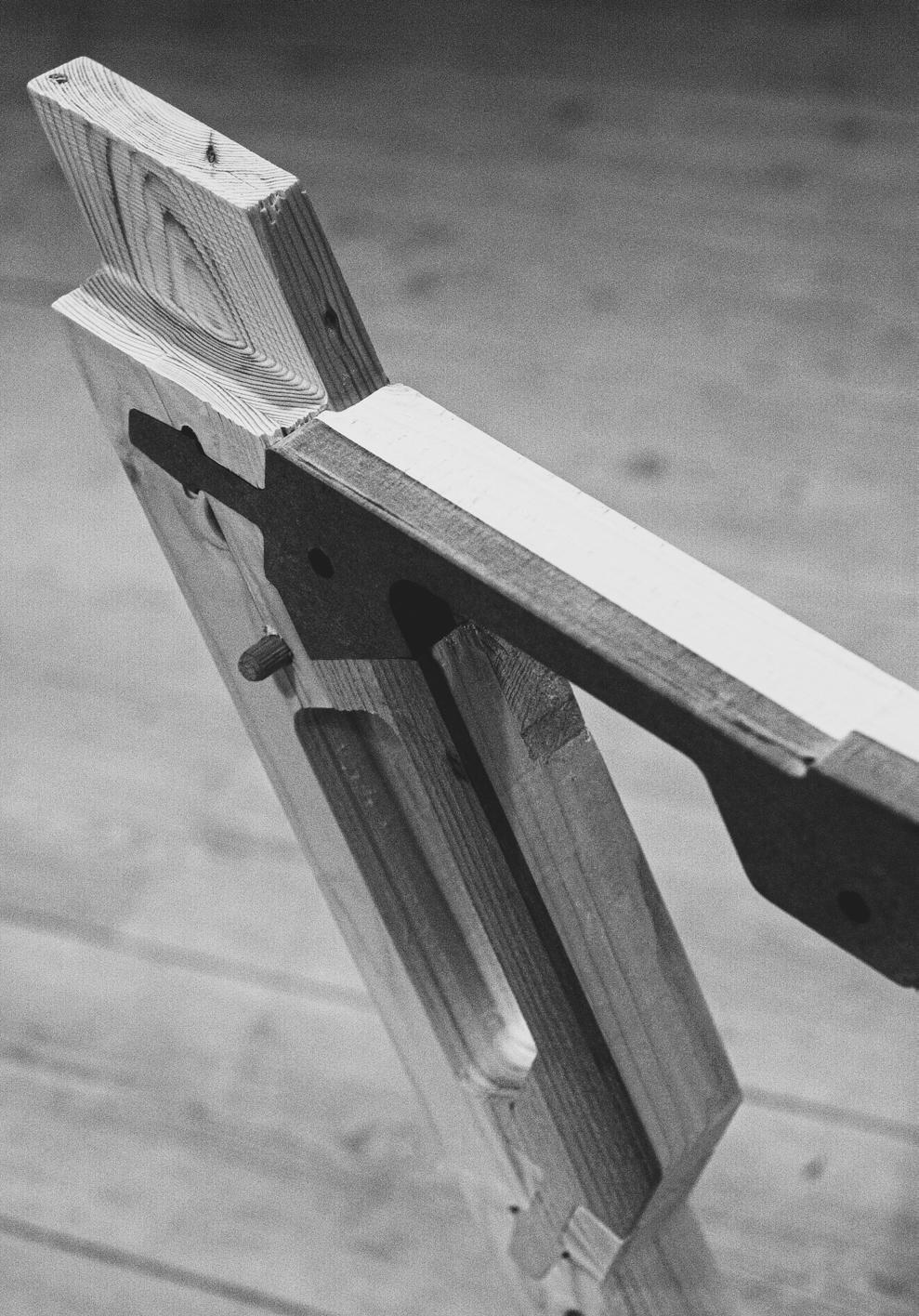

An element with artefacts of its previous function. 71

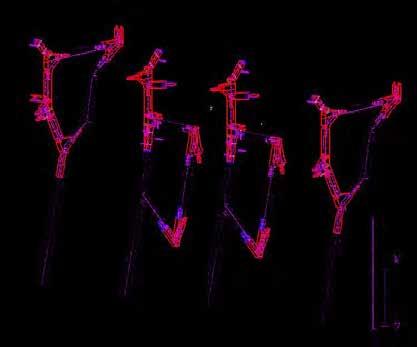

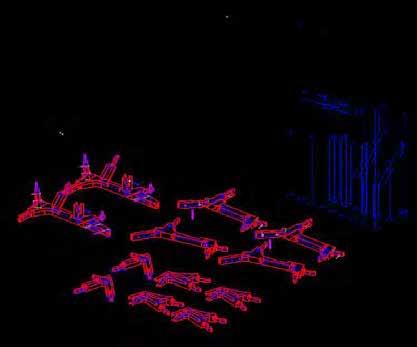

6.3. Aggregation of parts
72
73

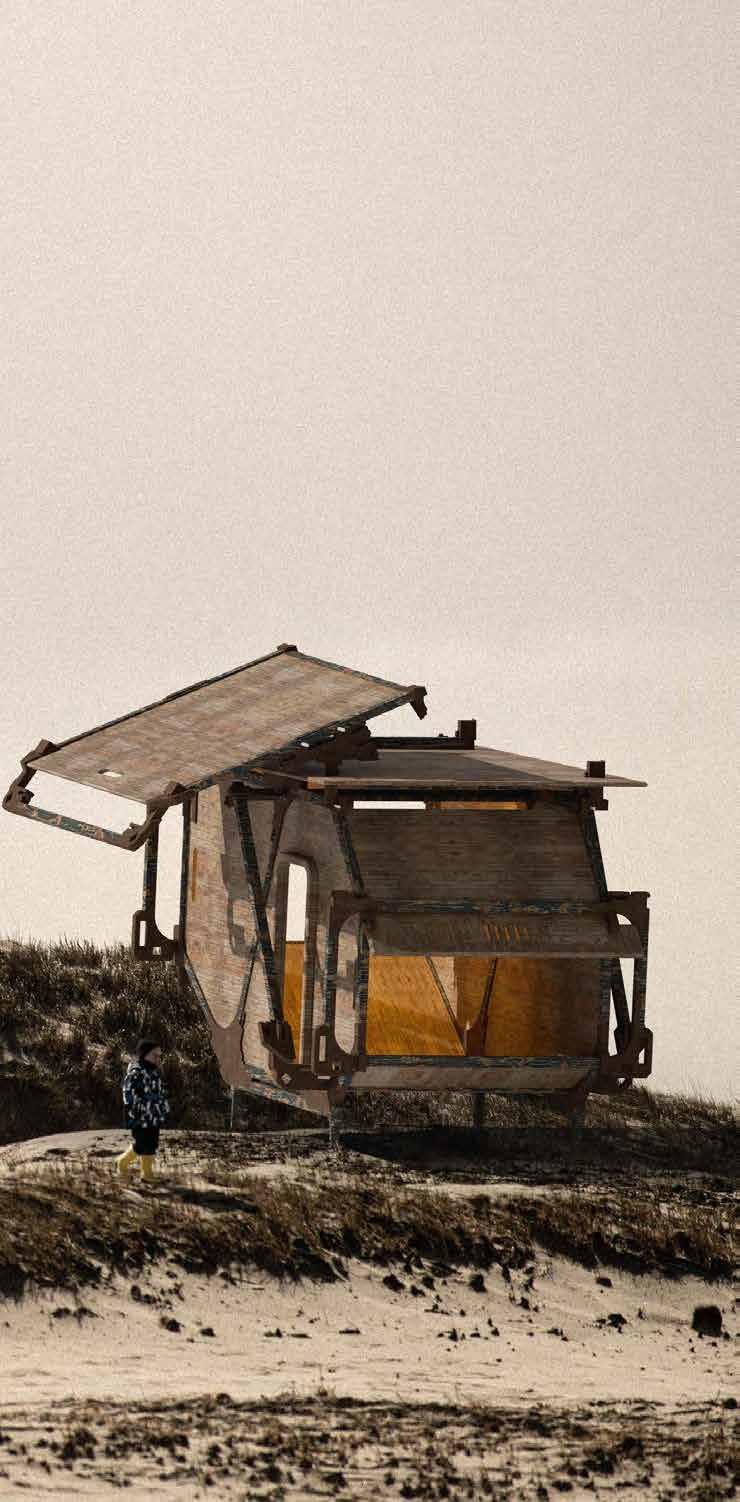

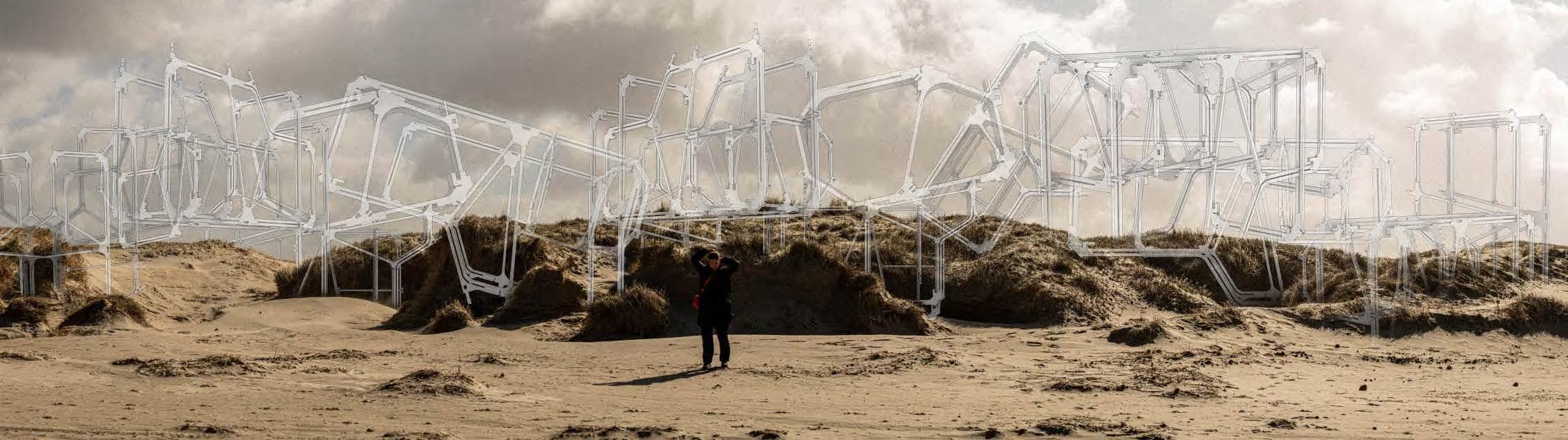

7. Case study / Speculation
76
77
7. Case study / Speculation
2021
2031
2041
2051

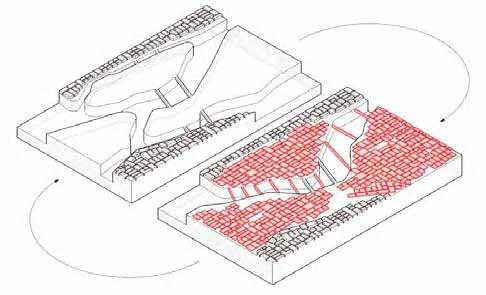

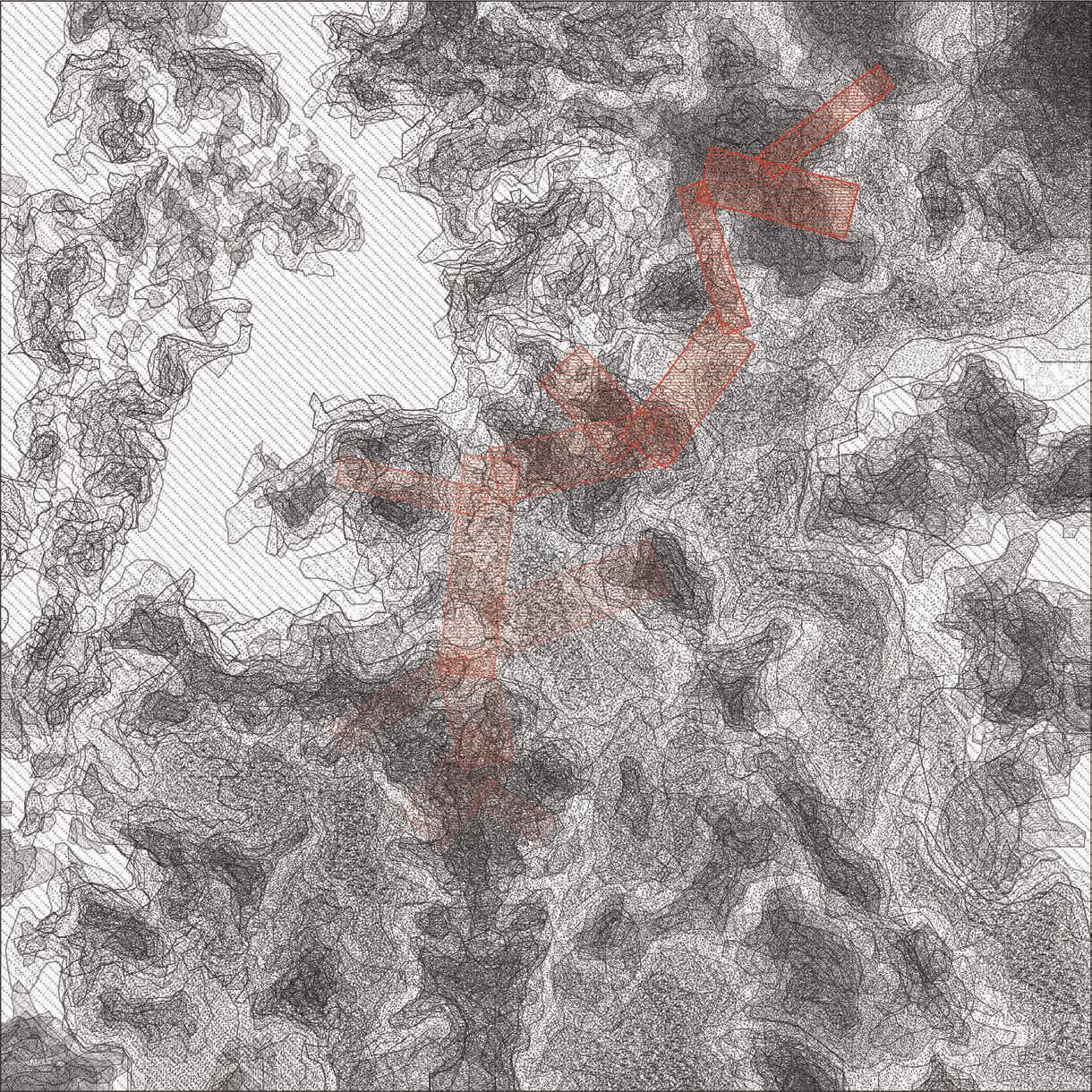

Overlay of contours and building foot print from 2021 to 2061.
78
2061
79
7. Case study / Speculation
80
81

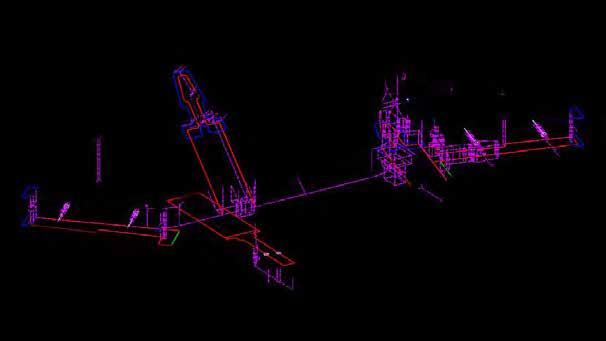

7. Case study / Speculation 7237 1412
250
858
906
5575
84°
88°
88°
1796
595
1537
108°
R750
R750
R1500
R1500
1500
750
1500
750
688
3000
750
3000
3572 6688
100
1122
563
80 m
R750
R1500
R750
1772
2275
R1500
150
1070
R1906

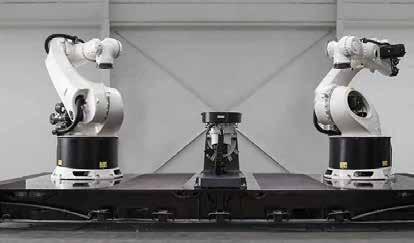

University of Stuttgart - flexible robotic timber construction platform, TIM,
80 m
82
83
84
85
7. Case study / Speculation
32
28
30
29
30
32 22
25
29
45 44
42 46 23
28
4741
31
48
43
19
18
44
42
34
15
12
2019
3
0
33 37
39
7 1
8
1312
9
11 6 2
6
7
4 3
5
8
86
13
34 40
36
5 0
21
20
2118
1110 2
26
35 38
40
39
25
27
15 14
14
43
1
27
37
38
10
36
48 26 24
41
33
16
17
24
46 35
47
31
1623
1722
45
9
87
4
9. Conclusion How can [adaptive digital processes] [prolong the life cycle] of timber structures through designing for [multiple stages of reconfiguration]? This thesis explores these cyclic processes of timber structures at the scale of materials, components and structures. It establishes a potential solution for extending the life cycle of buildings by giving timber elements multiple functions over time. This thesis also highlights and overcome some of the challenges of designing for disassembly with adaptive digital processes through the use of digital tools and current build technologies.
[adaptive digital processes]
[prolong the life cycle]
88
[multiple stages of reconfiguration]
89
10. Limitations and f urther studies Limitations: (1) While this thesis only explored the use of a 3 axis CNC machine, this method can be expanded to use more advanced tools. This would enable the fabrication of more intricate joints and non planar elements. (2) Although this thesis focuses only the timber frame structure, designing architecture that can be disassembled involves planning for all components used during construction. (3) The joints designed in this thesis are designed through the iterative process of the physical prototypes. When applied to a larger scale, proper structural analysis needs to be done in order to determine the specifications
joints needed.
of the
Further studies: (1) Further studies can explore the use of different types wood for specific functions. This could potentially increase the longevity of each joint. However extra care needs to be taken when gluing hard and soft wood. Deeper material behavior understanding of how the joints degrade over time. Being able to predict the decay of elements would help with both the designing of parts and maximizing its potential life span. (2)
(3) Further studies could evaluate how many times an element is re-machined before the energy cost out weighs producing a new component.
90
