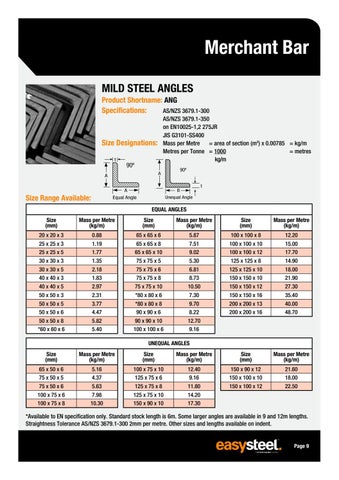

Merchant Bar MILD STEEL ANGLES Product Shortname: ANG Specifications: AS/NZS 3679.1-300

AS/NZS 3679.1-350 on EN10025-1,2 275JR JIS G3101-SS400 Size Designations: Mass per Metre = area of section (m2) x 0.00785 = kg/m Metres per Tonne = 1000 = metres kg/m

Size Range Available: EQUAL ANGLES Size (mm)

Mass per Metre (kg/m)

Size (mm)

Mass per Metre (kg/m)

Size (mm)

Mass per Metre (kg/m)

20 x 20 x 3 25 x 25 x 3 25 x 25 x 5 30 x 30 x 3 30 x 30 x 5 40 x 40 x 3 40 x 40 x 5 50 x 50 x 3 50 x 50 x 5 50 x 50 x 6 50 x 50 x 8 *60 x 60 x 6

0.88 1.19 1.77 1.35 2.18 1.83 2.97 2.31 3.77 4.47 5.82 5.40

65 x 65 x 6 65 x 65 x 8 65 x 65 x 10 75 x 75 x 5 75 x 75 x 6 75 x 75 x 8 75 x 75 x 10 *80 x 80 x 6 *80 x 80 x 8 90 x 90 x 6 90 x 90 x 10 100 x 100 x 6

5.87 7.51 9.02 5.30 6.81 8.73 10.50 7.30 9.70 8.22 12.70 9.16

100 x 100 x 8 100 x 100 x 10 100 x 100 x 12 125 x 125 x 8 125 x 125 x 10 150 x 150 x 10 150 x 150 x 12 150 x 150 x 16 200 x 200 x 13 200 x 200 x 16

12.20 15.00 17.70 14.90 18.00 21.90 27.30 35.40 40.00 48.70

Size (mm)

Mass per Metre (kg/m)

Size (mm)

Mass per Metre (kg/m)

Size (mm)

Mass per Metre (kg/m)

65 x 50 x 6 75 x 50 x 5 75 x 50 x 6 100 x 75 x 6 100 x 75 x 8

5.16 4.37 5.63 7.98 10.30

100 x 75 x 10 125 x 75 x 6 125 x 75 x 8 125 x 75 x 10 150 x 90 x 10

12.40 9.16 11.80 14.20 17.30

150 x 90 x 12 150 x 100 x 10 150 x 100 x 12

21.60 18.00 22.50

UNEQUAL ANGLES

*Available to EN specification only. Standard stock length is 6m. Some larger angles are available in 9 and 12m lengths. Straightness Tolerance AS/NZS 3679.1-300 2mm per metre. Other sizes and lengths available on indent.
