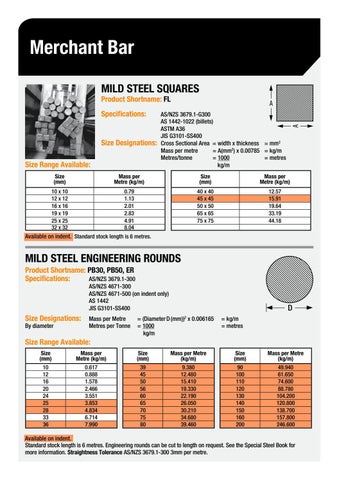

Merchant Bar MILD STEEL SQUARES Product Shortname: FL Specifications:
Size Size Range Available:
AS/NZS 3679.1-G300 AS 1442-1022 (billets) ASTM A36 JIS G3101-SS400 Designations: Cross Sectional Area = width x thickness = mm2 Mass per metre = A(mm2) x 0.00785 = kg/m Metres/tonne = 1000 = metres kg/m
Size (mm)
Mass per Metre (kg/m)
Size (mm)
Mass per Metre (kg/m)
10 x 10 12 x 12 16 x 16 19 x 19 25 x 25 32 x 32
0.79 1.13 2.01 2.83 4.91 8.04
40 x 40 45 x 45 50 x 50 65 x 65 75 x 75
12.57 15.91 19.64 33.19 44.18
Available on indent. Standard stock length is 6 metres.
MILD STEEL ENGINEERING ROUNDS Product Shortname: P B30, PB50, ER AS/NZS 3679.1-300 Specifications:
AS/NZS 4671-300 AS/NZS 4671-500 (on indent only) AS 1442 JIS G3101-SS400
D
Size Designations:
Mass per Metre = (Diameter D (mm))2 x 0.006165 = kg/m By diameter Metres per Tonne = 1000 = metres kg/m
Size Range Available: Size (mm) 10 12 16 20 24 25 28 33 36
Mass per Metre (kg/m) 0.617 0.888 1.578 2.466 3.551 3.853 4.834 6.714 7.990
Size (mm) 39 45 50 56 60 65 70 75 80
Mass per Metre (kg/m) 9.380 12.480 15.410 19.330 22.190 26.050 30.210 34.680 39.460
Size (mm) 90 100 110 120 130 140 150 160 200
Mass per Metre (kg/m) 49.940 61.650 74.600 88.780 104.200 120.800 138.700 157.800 246.600
Available on indent. Standard stock length is 6 metres. Engineering rounds can be cut to length on request. See the Special Steel Book for more information. Straightness Tolerance AS/NZS 3679.1-300 3mm per metre.
