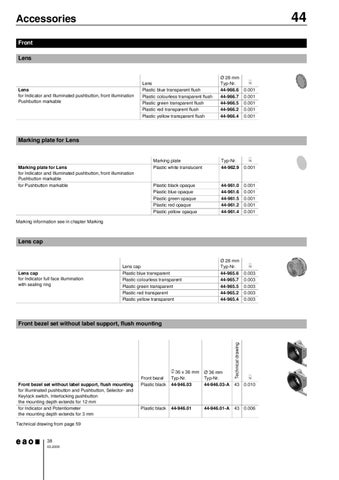

44
Accessories Front Lens Continuation see next page
Lens for Indicator and Illuminated pushbutton, front illumination Pushbutton markable
Lens Plastic blue transparent flush Plastic colourless transparent flush Plastic green transparent flush Plastic red transparent flush Plastic yellow transparent flush
Ø 28 mm Typ-Nr. 44-966.6 44-966.7 44-966.5 44-966.2 44-966.4
0.001 0.001 0.001 0.001 0.001
Marking plate Plastic white translucent
Typ-Nr. 44-962.9
0.001
Plastic black opaque Plastic blue opaque Plastic green opaque Plastic red opaque Plastic yellow opaque
44-961.0 44-961.6 44-961.5 44-961.2 44-961.4
0.001 0.001 0.001 0.001 0.001
Ø 28 mm Typ-Nr. 44-965.6 44-965.7 44-965.5 44-965.2 44-965.4
0.003 0.003 0.003 0.003 0.003
e
Marking plate for Lens Continuation see next page
Marking plate for Lens for Indicator and Illuminated pushbutton, front illumination Pushbutton markable for Pushbutton markable
e
Marking information see in chapter Marking
Lens cap Continuation see next page
Lens cap for Indicator full face illumination with sealing ring
Lens cap Plastic blue transparent Plastic colourless transparent Plastic green transparent Plastic red transparent Plastic yellow transparent
e
Front bezel set without label support, flush mounting
Front bezel set without label support, flush mounting for Illuminated pushbutton and Pushbutton, Selector- and Keylock switch, Interlocking pushbutton the mounting depth extends for 12 mm for Indicator and Potentiometer the mounting depth extends for 3 mm Technical drawing from page 59
38 03.2009
Front bezel Plastic black
b 36 x 36 mm Typ-Nr. 44-946.03
Ø 36 mm Typ-Nr. 44-946.03-A
Technical drawing
Continuation see next page
e
43
0.010
Plastic black
44-946.01
44-946.01-A
43
0.006
