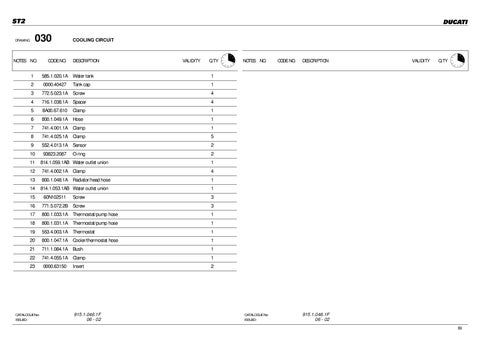

030
DRAWING
NOTES NO.
CODE NO.
COOLING CIRCUIT
DESCRIPTION
VALIDITY
Q.TY
1
585.1.020.1A
Water tank
1
2
0000.40427
Tank cap
1
3
772.5.023.1A
Screw
4
4
716.1.038.1A
Spacer
4
5
8A00.67.610
Clamp
1
6
800.1.049.1A
Hose
1
7
741.4.001.1A
Clamp
1
8
741.4.025.1A
Clamp
5
9
552.4.013.1A
Sensor
2
10
93823.2087
O-ring
2
11
814.1.059.1AB Water outlet union
1
12
741.4.002.1A
Clamp
4
13
800.1.048.1A
Radiator/head hose
1
14
814.1.053.1AB Water outlet union 60N102511
Screw
3
16
771.5.072.2B
Screw
3
17
800.1.033.1A
Thermostat/pump hose
1
18
800.1.031.1A
Thermostat/pump hose
1
19
553.4.003.1A
Thermostat
1
20
800.1.047.1A
Cooler/thermostat hose
1
21
711.1.084.1A
Bush
1
22
741.4.055.1A
Clamp
1
23
0000.63150
Insert
2
915.1.046.1F 06 - 02
CODE NO.
DESCRIPTION
VALIDITY
Q.TY
1
15
CATALOGUE No: ISSUED:
NOTES NO.
CATALOGUE No: ISSUED:
