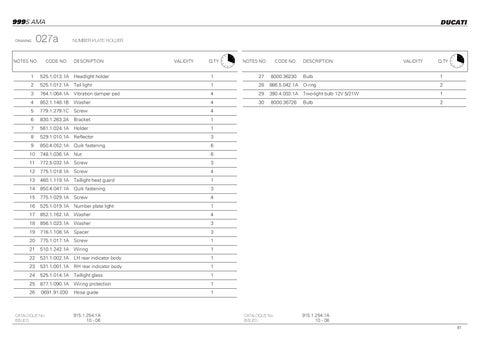

DUCATI DRAWING
027a
NOTES NO.
CODE NO.
NUMBER PLATE HOLDER
DESCRIPTION
1
525.1.013.1A
Headlight holder
2
525.1.012.1A
3
764.1.064.1A
4
VALIDITY
Q.TY
NOTES NO.
CODE NO.
DESCRIPTION
Q.TY
1
27
8000.36230
Tail light
1
28
886.5.042.1A
O-ring
2
Vibration damper pad
4
29
390.4.003.1A
Two-light bulb 12V 5/21W
1
852.1.148.1B
Washer
4
30
8000.36726
Bulb
2
5
779.1.279.1C
Screw
4
6
830.1.263.2A
Bracket
1
7
561.1.024.1A
Holder
1
8
529.1.010.1A
Reflector
3
9
850.4.052.1A
Quik fastening
6
10
748.1.036.1A
Nut
6
11
772.5.032.1A
Screw
3
12
775.1.018.1A
Screw
4
13
460.1.119.1A
Taillight heat guard
1
14
850.4.047.1A
Quik fastening
3
15
775.1.029.1A
Screw
4
16
525.1.019.1A
Number plate light
1
17
852.1.162.1A
Washer
4
18
856.1.023.1A
Washer
3
19
716.1.108.1A
Spacer
3
20
775.1.017.1A
Screw
1
21
510.1.242.1A
Wiring
1
22
531.1.002.1A
LH rear indicator body
1
23
531.1.001.1A
RH rear indicator body
1
24
525.1.014.1A
Taillight glass
1
25
877.1.090.1A
Wiring protection
1
26
0691.91.030
Hose guide
1
CATALOGUE No: ISSUED:
915.1.254.1A 10 - 06
CATALOGUE No: ISSUED:
Bulb
VALIDITY
1
915.1.254.1A 10 - 06 81
