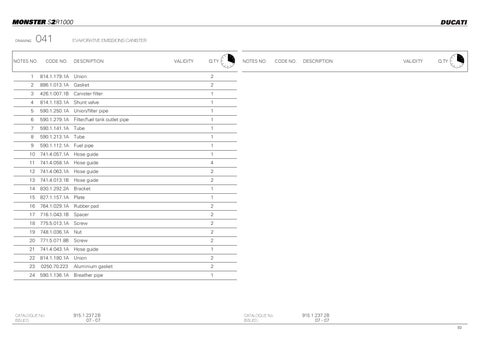

DUCATI DRAWING

041

NOTES NO.

CODE NO.

EVAPORATIVE EMISSIONS CANISTER

DESCRIPTION

VALIDITY

Q.TY

1

814.1.179.1A

Union

2

2

886.1.013.1A

Gasket

2

3

426.1.007.1B

Canister filter

1

4

814.1.183.1A

Shunt valve

1

5

590.1.250.1A

Union/filter pipe

1

6

590.1.279.1A

Filter/fuel tank outlet pipe

1

7

590.1.141.1A

Tube

1

8

590.1.213.1A

Tube

1

9

590.1.112.1A

Fuel pipe

1

10

741.4.057.1A

Hose guide

1

11

741.4.058.1A

Hose guide

4

12

741.4.063.1A

Hose guide

2

13

741.4.013.1B

Hose guide

2

14

830.1.292.2A

Bracket

1

15

827.1.157.1A

Plate

1

16

764.1.029.1A

Rubber pad

2

17

716.1.043.1B

Spacer

2

18

775.5.013.1A

Screw

2

19

748.1.036.1A

Nut

2

20

771.5.071.8B

Screw

2

21

741.4.043.1A

Hose guide

1

22

814.1.180.1A

Union

2

23

0250.70.223

Aluminium gasket

2

24

590.1.136.1A

Breather pipe

1
