Page 133

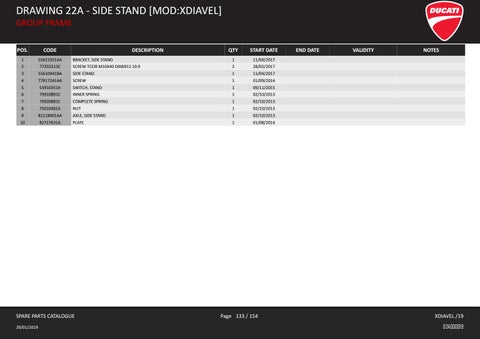

DRAWING 22A - SIDE STAND [MOD:XDIAVEL] GROUP FRAME POS.

CODE

1

55621051AA

2

77355213C

3

DESCRIPTION

QTY

START DATE

BRACKET, SIDE STAND

1

11/04/2017

SCREW TCEIR M10X40 DIN6912 10.9

2

28/02/2017

55610941BA

SIDE STAND

1

11/04/2017

4

77917241AA

SCREW

1

01/09/2014

5

53910351A

SWITCH, STAND

1

09/11/2015

6

79910891C

INNER SPRING

1

02/10/2013

7

79920881C

COMPLETE SPRING

1

02/10/2013

8

75010481A

NUT

1

02/10/2013

9

82118401AA

AXLE, SIDE STAND

1

02/10/2013

10

82717631A

PLATE

1

01/08/2014

SPARE PARTS CATALOGUE 29/01/2019

Page 133 / 154

END DATE

VALIDITY

NOTES

XDIAVEL /19 D24000019
