Page 131

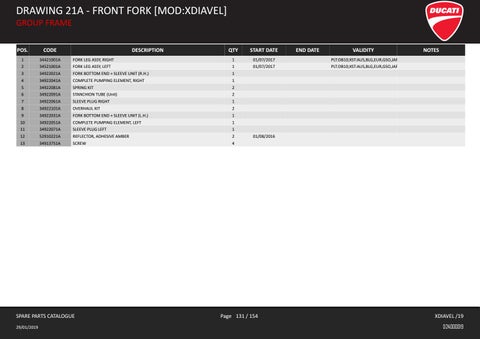

DRAWING 21A - FRONT FORK [MOD:XDIAVEL] GROUP FRAME POS.

CODE

1

34421001A

2

34521001A

3

DESCRIPTION

QTY

START DATE

FORK LEG ASSY, RIGHT

1

01/07/2017

PLT:DB10;XST:AUS,BLG,EUR,GSO,JAP,ROK,TWN

FORK LEG ASSY, LEFT

1

01/07/2017

PLT:DB10;XST:AUS,BLG,EUR,GSO,JAP,ROK,TWN

34922021A

FORK BOTTOM END + SLEEVE UNIT (R.H.)

1

4

34922041A

COMPLETE PUMPING ELEMENT, RIGHT

1

5

34922081A

SPRING KIT

2

6

34922091A

STANCHION TUBE (Unit)

2

7

34922061A

SLEEVE PLUG RIGHT

1

8

34922101A

OVERHAUL KIT

2

9

34922031A

FORK BOTTOM END + SLEEVE UNIT (L.H.)

1

10

34922051A

COMPLETE PUMPING ELEMENT, LEFT

1

11

34922071A

SLEEVE PLUG LEFT

1

12

52910221A

REFLECTOR, ADHESIVE AMBER

2

13

34913751A

SCREW

4

SPARE PARTS CATALOGUE 29/01/2019

END DATE

VALIDITY

NOTES

01/08/2016

Page 131 / 154

XDIAVEL /19 D24000019
