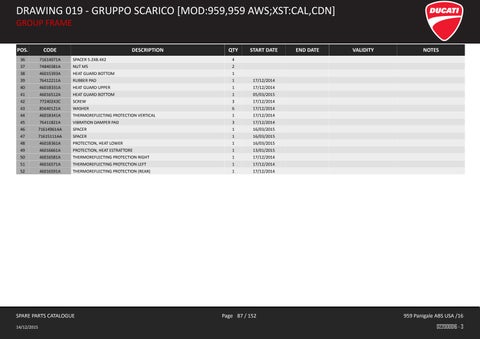

DRAWING 019 - GRUPPO SCARICO [MOD:959,959 AWS;XST:CAL,CDN] GROUP FRAME POS.
CODE
DESCRIPTION
36
71614071A
SPACER 5.2X8.4X2
4
37
74840381A
NUT M5
2
38
46015393A
HEAT GUARD BOTTOM
1
39
76412211A
RUBBER PAD
1
17/12/2014
40
4601B331A
HEAT GUARD UPPER
1
17/12/2014
41
46016512A
HEAT GUARD BOTTOM
1
05/03/2015
42
77240243C
SCREW
3
17/12/2014
43
85640121A
WASHER
6
17/12/2014
44
4601B341A
THERMOREFLECTING PROTECTION VERTICAL
1
17/12/2014
45
76411821A
VIBRATION DAMPER PAD
3
17/12/2014
46
71614961AA
SPACER
1
16/03/2015
47
71615111AA
SPACER
1
16/03/2015
48
4601B361A
PROTECTION, HEAT LOWER
1
16/03/2015
49
46016661A
PROTECTION, HEAT ESTRATTORE
1
13/01/2015
50
46016581A
THERMOREFLECTING PROTECTION RIGHT
1
17/12/2014
51
46016571A
THERMOREFLECTING PROTECTION LEFT
1
17/12/2014
52
46016591A
THERMOREFLECTING PROTECTION (REAR)
1
17/12/2014
SPARE PARTS CATALOGUE 14/12/2015
QTY
START DATE
Page 87 / 152
END DATE
VALIDITY
NOTES
959 Panigale ABS USA /16 D22000016 - 3
