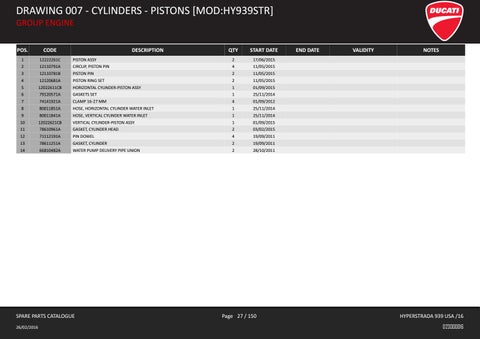

Page 27

DRAWING 007 - CYLINDERS - PISTONS [MOD:HY939STR] GROUP ENGINE POS.

CODE

DESCRIPTION

QTY

START DATE

1

12222261C

PISTON ASSY

2

17/06/2015

2

12110791A

CIRCLIP, PISTON PIN

4

11/05/2015

3

12110781B

PISTON PIN

2

11/05/2015

4

12120681A

PISTON RING SET

2

11/05/2015

5

12022611CB

HORIZONTAL CYLINDER-PISTON ASSY

1

01/09/2015

6

79120571A

GASKETS SET

1

25/11/2014

7

74141921A

CLAMP 16-27 MM

4

01/09/2012

8

80011851A

HOSE, HORIZONTAL CYLINDER WATER INLET

1

25/11/2014

9

80011841A

HOSE, VERTICAL CYLINDER WATER INLET

1

25/11/2014

10

12022621CB

VERTICAL CYLINDER-PISTON ASSY

1

01/09/2015

11

78610961A

GASKET, CYLINDER HEAD

2

03/02/2015

12

71112191A

PIN DOWEL

4

19/09/2011

13

78611251A

GASKET, CYLINDER

2

19/09/2011

14

66810482A

WATER PUMP DELIVERY PIPE UNION

2

28/10/2011

SPARE PARTS CATALOGUE 26/02/2016

Page 27 / 150

END DATE

VALIDITY

NOTES

HYPERSTRADA 939 USA /16 D23000016
