subwoofers

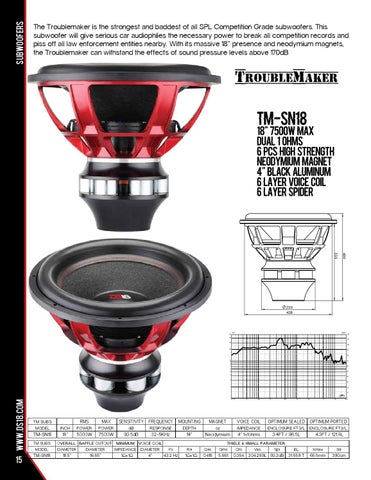

The Troublemaker is the strongest and baddest of all SPL Competition Grade subwoofers. This subwoofer will give serious car audiophiles the necessary power to break all competition records and piss off all law enforcement entities nearby. With its massive 18” presence and neodymium magnets, the Troublemaker can withstand the effects of sound pressure levels above 170dB
TM-SN18
18" 7500W MAX DUAL 1 OHMS 6 PCS HIGH STRENGTH NEODYMIUM MAGNET 4" BLACK ALUMINUM 6 LAYER VOICE COIL 6 LAYER SPIDER
400
355
220 428
50
Ohm
dBSPL
40
120 110
30 100 20
90 80
10 9 8 7
70 60
6 50
5 4
40
3
30
2
20
WWW.DS18.COM
10
15
1 20 Hz
50
1002
00
5001
K2
K5
K1
0 20K
0K
TM SUBS MODEL
INCH
RMS POWER
MAX POWER
SENSITIVITY dB
FREQUENCY RESPONSE
MOUNTING DEPTH
MAGNET oz
VOICE COIL IMPEDANCE
OPTIMUM SEALED ENCLOSURE FT3/L
OPTIMUM PORTED ENCLOSURE FT3/L
TM-SN18
18"
5000W
7500W
93.5dB
32-5KHz
14"
Neodymium
4" 1+1ohms
3.4FT / 96.5L
4.3FT / 121.8L
TM SUBS
OVERALL BAFFLE CUTOUT
MODEL
DIAMETER
DIAMETER
TM-SN18
18.5"
16.85"
MINIMUM VOICE COIL IMPEDANCE
1Ω+1Ω
THIELE & SMALL PARAMETER
DIAMETER
Fs
4"
43.2 Hz
Re
1Ω+1Ω
Qes
Qms
0.418
5.861
Qts
Vas
Spl
BL
0.354 304.289L 93.3dB 31.859 T
Xmax
Sd
65.5mm
390cm
