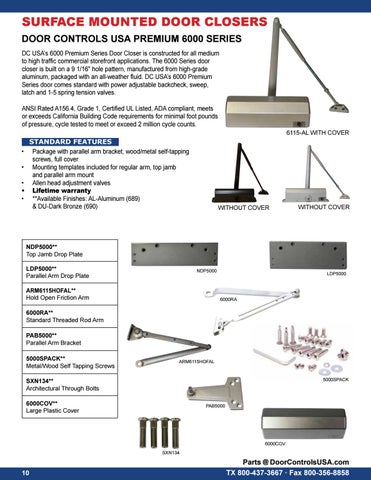

SURFACE MOUNTED DOOR CLOSERS DOOR CONTROLS USA PREMIUM 6000 SERIES DC USA’s 6000 Premium Series Door Closer is constructed for all medium to high traffic commercial storefront applications. The 6000 Series door closer is built on a 9 1/16" hole pattern, manufactured from high-grade aluminum, packaged with an all-weather fluid. DC USA’s 6000 Premium Series door comes standard with power adjustable backcheck, sweep, latch and 1-5 spring tension valves. ANSI Rated A156.4, Grade 1, Certified UL Listed, ADA compliant, meets or exceeds California Building Code requirements for minimal foot pounds of pressure, cycle tested to meet or exceed 2 million cycle counts. 6115-AL WITH COVER
• • • • •
STANDARD FEATURES Package with parallel arm bracket, wood/metal self-tapping screws, full cover Mounting templates included for regular arm, top jamb and parallel arm mount Allen head adjustment valves Lifetime warranty **Available Finishes: AL-Aluminum (689) & DU-Dark Bronze (690)
WITHOUT COVER
WITHOUT COVER
NDP5000** Top Jamb Drop Plate LDP5000** Parallel Arm Drop Plate
NDP5000
ARM6115HOFAL** Hold Open Friction Arm
LDP5000
6000RA
6000RA** Standard Threaded Rod Arm PAB5000** Parallel Arm Bracket 5000SPACK** Metal/Wood Self Tapping Screws
ARM6115HOFAL
5000SPACK
SXN134** Architectural Through Bolts 6000COV** Large Plastic Cover
PAB5000
6000COV SXN134
10
Parts @ DoorControlsUSA.com TX 800-437-3667 · Fax 800-356-8858
