Available, Reliable, Economical

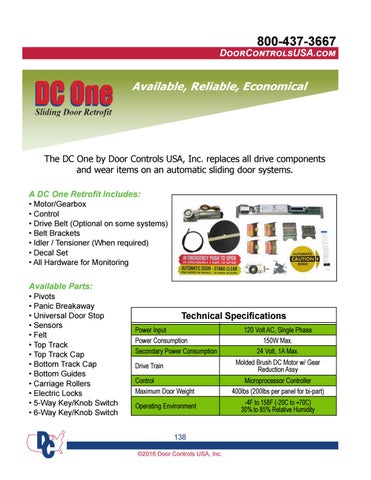

The DC One by Door Controls USA, Inc. replaces all drive components and wear items on an automatic sliding door systems. A DC One Retrofit Includes:
• Motor/Gearbox • Control • Drive Belt (Optional on some systems) • Belt Brackets • Idler / Tensioner (When required) • Decal Set • All Hardware for Monitoring
Available Parts:
• Pivots • Panic Breakaway • Universal Door Stop • Sensors • Felt • Top Track • Top Track Cap • Bottom Track Cap • Bottom Guides • Carriage Rollers • Electric Locks • 5-Way Key/Knob Switch • 6-Way Key/Knob Switch
Technical Specifications Power Input Power Consumption Secondary Power Consumption
120 Volt AC, Single Phase 150W Max. 24 Volt, 1A Max. Molded Brush DC Motor w/ Gear Reduction Assy
Drive Train Control Maximum Door Weight
Microprocessor Controller 400lbs (200lbs per panel for bi-part)
Operating Environment
-4F to 158F (-20C to +70C) 30% to 85% Relative Humidity
