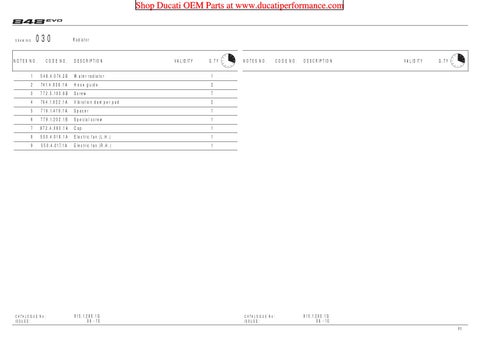

DRAWING
030
NOTES NO.
Radiator
CODE NO.
DESCRIPTION
1
548.4.074.2B
Water radiator
1
2
741.4.038.1A
Hose guide
2
3
772.5.103.8B
Screw
7
4
764.1.022.1A
Vibration damper pad
2
5
716.1.419.1A
Spacer
1
6
779.1.202.1B
Special screw
1
7
872.4.060.1A
Cap
1
8
550.4.018.1A
Electric fan (L.H.)
1
9
550.4.017.1A
Electric fan (R.H.)
1
CATALOGUE No: ISSUED:
915.1.280.1G 06 - 10
VALIDITY
Q.TY
NOTES NO.
CATALOGUE No: ISSUED:
CODE NO.
DESCRIPTION
VALIDITY
Q.TY
915.1.280.1G 06 - 10 85
