DORSODURO 3995 - Dorsoduro 1200 2010-2013
Group Code Description Service
Pos. 1 2 3 4 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
Code GU92660021 895836 896110 895354 895813 895355 895356 895357 AP8121170 896656 AP8150505 AP8150158 AP8150483 GU05128230 575268 896655 AP8152055 AP8150376 AP8201755 896703 896704 898251 851586 AP8152289 AP8150018 856914 AP8121455
26/06/2013
Chassis prefix: ZD4TV000, ZD4TV001, ZD4TVA00, ZD4TVA01, ZD4TVC00, Engine prefix:

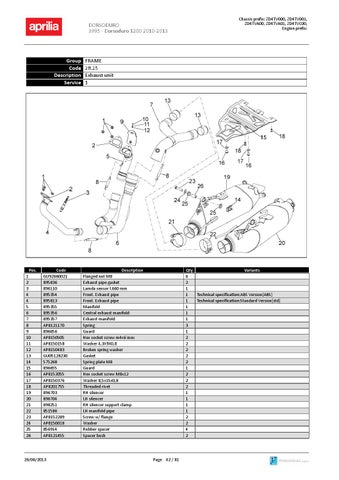

FRAME 28.25 Exhaust unit 1
Description Flanged nut M8 Exhaust pipe gasket Lamda sensor l.660 mm Front. Exhaust pipe Front. Exhaust pipe Manifold Central exhaust manifold Exhaust manifold Spring Guard Hex socket screw m4x6 inox Washer 4,3X9X0,8 Broken spring washer Gasket Spring plate M8 Guard Hex socket screw M8x12 Washer 8,5x15x0,8 Threaded rivet RH silencer LH silencer RH silencer support clamp LH manifold pipe Screw w/ flange Washer Rubber spacer Spacer bush
Qty Variants 6 2 1 1 Technical specification:ABS Version[ABS] 1 Technical specification:Standard Version[std] 1 1 1 3 1 2 2 2 2 2 1 2 2 2 1 1 1 1 2 2 4 2
Page 42 / 81
