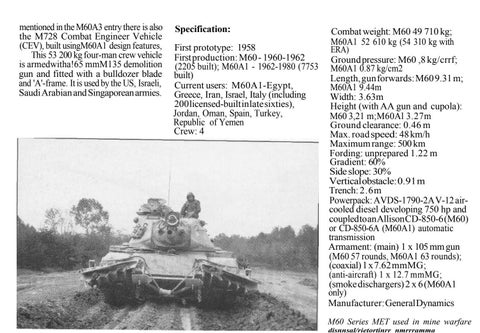

mentioned in the M60A3 entry there is also the M728 Combat Engineer Vehicle (CEV), built usingM60A1 design features, This 53 200 kg four-man crew vehicle is armedwitha!65 mmM135 demolition gun and fitted with a bulldozer blade and 'A'-frame. It is used by the US, Israeli, Saudi Arabian and Singaporean armies.
Specification: First prototype: 1958 First production: M60 - 1960-1962 (2205 built); M60A1 - 1962-1980 (7753 built) Current users: M60A1-Egypt, Greece, Iran, Israel, Italy (including 200 licensed-built in late sixties), Jordan, Oman, Spain, Turkey, Republic of Yemen Crew: 4
Combat weight: M60 49 710 kg; M60A1 52 610 kg (54 310 kg with ERA) Ground pressure: M60 ,8 kg/crrf; M60A1 0.87 kg/cm2 Length, gun forwards: M60 9.31 m; M60A1 9.44m Width: 3.63m Height (with AA gun and cupola): M60 3,21 m;M60Al 3.27m Ground clearance: 0.46 m Max. road speed: 48 km/h Maximum range: 500 km Fording: unprepared 1.22 m Gradient: 60% Side slope: 30% Vertical obstacle: 0.91 m Trench: 2.6m Powerpack: AVDS-1790-2A V-12 aircooled diesel developing 750 hp and coupled to an Allison CD-850-6 (M60) or CD-850-6A (M60A1) automatic transmission Armament: (main) 1 x 105 mm gun (M60 57 rounds, M60A1 63 rounds); (coaxial) 1 x 7.62 mmMG; (anti-aircraft) 1 x 12.7 mmMG; (smoke dischargers) 2 x 6 (M60A1 only) Manufacturer: General Dynamics M60 Series MET used in mine warfare disnnsal/rietortinrr nmrrramma
