KUNDE NR:
KUNDE:
R
David Super-Light A/S
FAX:
86898500 86898530
David Super-Light A/S EDB NR:
EMNE:
TEGN. NR:
Renault, Grindsted
GRUPPE:
Mikkel park
M
550 Alt. 625
390

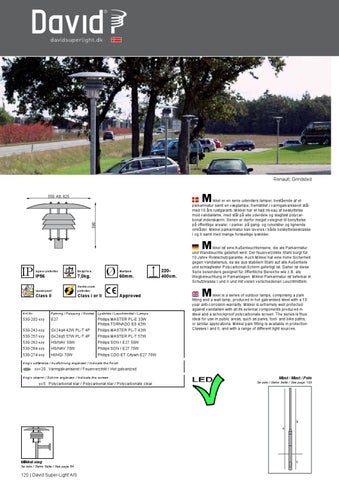

ikkel er en serie udendørs lamper, bestående af et parkarmatur samt en væglampe, fremstillet i varmgalvaniseret stål med 10 års rustgaranti. Mikkel har et højt niveau af beskyttelse mod vandalisme, med stål på alle yderdele og slagfast polycarbonat inderskærm. Serien er derfor meget velegnet til benyttelse på offentlige arealer; i parker, på gang- og cykelstier og lignende områder. Mikkel parkarmatur kan leveres i både beskyttelsesklasse I og II samt med mange forskellige lyskilder.
M
IP MÅL:
Ingress protection:
VÆRKTØJ:
1:4
UBENÆVNTE MÅL:
7,0kg. RÅMÅL:
Vandal proof:
MATERIALE:
mm
Ø
Weight min.:
IP56
KLIPPE/SKÆREMÅL:
Class II
ElectricDATO/SIGN: shock 05.08.2009 REV/SIGN: protection:
Mast/pole:
60mm.
CK
Class I or II
Approved
Art.Nr.
Fatning / Fassung / Socket Lyskilde / Leuchtmittel / Lamps
530-202-xxy
E27
Philips MASTER PL-E 33W Philips TORNADO ES 42W
530-242-xxy
Gx24q4 42W PL-T 4P
Philips MASTER PL-T 42W
530-257-xxy
Gx24q5 57W PL-T 4P
Philips MASTER PL-T 57W
530-262-xxy
HS/NAV 50W
Philips SON I E27 50W
530-264-xxy
HS/NAV 70W
Philips SON I E27 70W
530-274-xxy
HI/HQI 70W
Philips CDO-ET Citywh E27 70W
220400cm.
ikkel ist eine Außenleuchtenserie, die als Parkarmatur und Wandleuchte geliefert wird. Der feuerverzinkte Stahl bürgt für 10 Jahre Rostschutzgarantie. Auch Mikkel hat eine hohe Sicherheit gegen Vandalismus, da sie aus stabilem Stahl auf alle Außenteile und schlagfester Polycarbonat-Schirm gefertigt ist. Daher ist diese Serie besonders geeignet für öffentliche Bereiche wie z.B. als Wegbeleuchtung in Parkanlagen. Mikkel Parkarmatur ist lieferbar in Schutzklasse I und II und mit vielen verschiedenen Leuchtmitteln.
M
ikkel is a series of outdoor lamps, comprising a park fitting and a wall lamp, produced in hot galvanised steel with a 10 year anti-corrosion warranty. Mikkel is extremely well protected against vandalism with all its external components produced in steel and a schockproof polycarbonate screen. The series is thus ideal for use in public areas, such as parks, foot- and bike paths, or similar applications. Mikkel park fitting is available in protection Classes I and II, and with a range of different light sources.
Angiv udførelse / Ausführung ergänzen / Indicate the finish
xx=20 Varmgalvaniseret / Feuerverzinkt / Hot galvanized Angiv skærm / Schirm ergänzen / Indicate the screen
y=5 Polycarbonat klar / Polycarbonat klar / Polycarbonate clear
R
KUNDE NR:
KUNDE:
David Super-Light A/S
FAX:
86898500 86898530
David Super-Light A/S EDB NR:
EMNE:
TEGN. NR:
GRUPPE:
Mikkel væg
Mikkel væg
MÅL:
1:4
VÆRKTØJ:
RÅMÅL:
DATO/SIGN:
05.08.2009 CK
Se side / Siehe Seite / See page 54
UBENÆVNTE MÅL:
mm
MATERIALE:
KLIPPE/SKÆREMÅL:
REV/SIGN:
120 | David Super-Light A/S
Mast / Mast / Pole
Se side / Siehe Seite / See page 133
