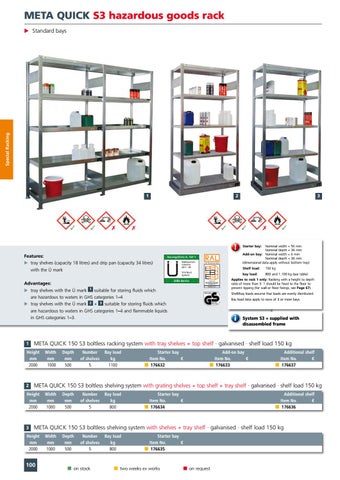

META QUICK S3 hazardous goods rack
Special Racking
Standard bays
1
✓
✓
✗
2
✗
✓
✓
! Features: tray shelves (capacity 18 litres) and drip pan (capacity 34 litres) with the Ü mark Advantages: tray shelves with the Ü mark
Nominal Nominal Add-on bay: Nominal Nominal (dimensional data apply
width + 56 mm depth + 36 mm width + 6 mm depth + 36 mm without bottom tray)
Shelf load:
150 kg
bay load:
800 and 1.100 kg (see table)
1
Shelf/bay loads assume that loads are evenly distributed. Bay load data apply to rows of 3 or more bays.
i
System S3 = supplied with disassembled frame
Width mm L1000
Depth mm 500
Number of shelves 5
Bay load kg 1100
Starter bay Item No. € 176632
Add-on bay Item No. € 176633
Additional shelf Item No. € 176637
META QUICK 150 S3 boltless shelving system with grating shelves + top shelf + tray shelf · galvanised · shelf load 150 kg
Height mm 2000
3
Starter bay:
✓
META QUICK 150 S3 boltless racking system with tray shelves + top shelf · galvanised · shelf load 150 kg
Height mm 2000
2
✗
Applies to rack 1 only: Racking with a height to depth ratio of more than 5: 1 should be fixed to the floor to prevent tipping (for wall or floor fixings, see Page 67).
suitable for storing fluids which are hazardous to waters in GHS categories 1–4 tray shelves with the Ü mark 2 + 3 suitable for storing fluids which are hazardous to waters in GHS categories 1–4 and flammable liquids in GHS categories 1–3.
1
3
Width mm 1000
Depth mm 500
Number of shelves 5
Bay load kg 800
Starter bay Item No. € 176634
Additional shelf Item No. € 176636
META QUICK 150 S3 boltless shelving system with shelves + tray shelf · galvanised · shelf load 150 kg
Height mm 2000
100
Width mm 1000
Depth mm 500
Number of shelves 5
on stock
Bay load kg 800
Starter bay Item No. € 176635
two weeks ex works
on request
