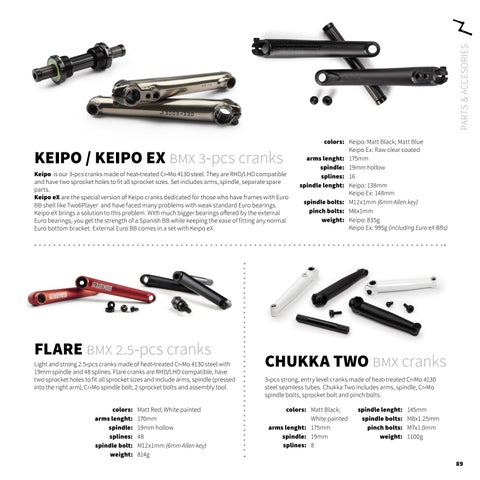

Dartmoor 2017 catalog - final edition

Page 89

PARTS & ACCESORIES

KEIPO / KEIPO EX bmx 3-pcs cranks

Keipo is our 3-pcs cranks made of heat-treated Cr-Mo 4130 steel. They are RHD/LHD compatible and have two sprocket holes to fit all sprocket sizes. Set includes arms, spindle, separate spare parts. Keipo eX are the special version of Keipo cranks dedicated for those who have frames with Euro BB shell like Two6Player and have faced many problems with weak standard Euro bearings. Keipo eX brings a solution to this problem. With much bigger bearings offered by the external Euro bearings, you get the strength of a Spanish BB while keeping the ease of fitting any normal Euro bottom bracket. External Euro BB comes in a set with Keipo eX.

FLARE bmx 2.5-pcs cranks

Light and strong 2.5-pcs cranks made of heat-treated Cr-Mo 4130 steel with 19mm spindle and 48 splines. Flare cranks are RHD/LHD compatible, have two sprocket holes to fit all sprocket sizes and include arms, spindle (pressed into the right arm), Cr-Mo spindle bolt, 2 sprocket bolts and assembly tool. colors: arms lenght: spindle: splines: spindle bolt: weight:

Matt Red; White painted 170mm 19mm hollow 48 M12x1mm (6mm Allen key) 814g

colors: Keipo: Matt Black; Matt Blue Keipo Ex: Raw clear coated arms lenght: 175mm spindle: 19mm hollow splines: 16 spindle lenght: Keipo: 138mm Keipo Ex: 148mm spindle bolts: M12x1mm (6mm Allen key) pinch bolts: M6x1mm weight: Keipo: 835g Keipo Ex: 995g (including Euro eX BBs)

CHUKKA TWO bmx cranks 3-pcs strong, entry level cranks made of heat-treated Cr-Mo 4130 steel seamless tubes. Chukka Two includes arms, spindle, Cr-Mo spindle bolts, sprocket bolt and pinch bolts. colors: Matt Black; White painted arms lenght: 175mm spindle: 19mm splines: 8

spindle lenght: spindle bolts: pinch bolts: weight:

145mm M8x1.25mm M7x1.0mm 1100g

89
