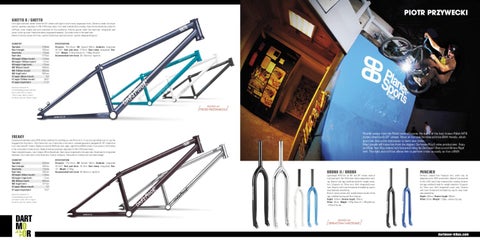

PIOTR PRZYWECKI GHETTO II / GHETTO
Ultra light technical street frame for 24” wheels and rigid or short travel suspension forks. Ghetto is made of multiple butted, seamless Japanese Cr-Mo 4130 steel tubes. Fully heat treated after welding. Hydroformed chainstay tubes for stiffness, lower weight and more clearance for the crankarms. Internal gusset under the head tube. Integrated seat clamp in the top tube. Head tube takes integrated headsets. Gyro tabs holes in the head tube. Ghetto II version comes with new, custom butted top tube and smaller, custom designed dropouts.
GEOMETRY Top tube: 546mm Rear triangle: 360mm Head tube: 110mm Seat tube: 270mm BB height (80mm travel): +24mm BB height (100mm travel): +31mm BB height (rigid fork): +12mm WB (80mm travel): 988mm WB (100mm travel): 995mm WB (rigid fork): 960mm HT angle (80mm travel): 70° HT angle (100mm travel): 68.5° HT angle (rigid fork): 71 .5°
SPECIFICATION Dropouts: 135x10mm; BB: Spanish 68mm; Headsets: integrated 45°x45°; Seat post diam.: 27.2mm. Seat clamp: integrated; Size: 10.6”. Weight: 2.04kg (Ghetto II), 1.98kg (Ghetto). Recommended fork travel: 60-100mm or rigid fork.
Geometry calculated for the RS Pike/Argyle type forks with: 80mm travel (471mm height) 100mm travel (491mm height) and Bronx rigid fork (430mm height)
Piotrek comes from the Polish town of Leszno. He is one of the best known Polish MTB street riders with 24” wheels. Most of the time he rides with his BMX friends, which gives him that extra motivation to learn new tricks. Most people will know him from the biggest Dartmoor/RyyS video productions: Enjoy and Ride Your Way where he’s featured riding his Dartmoor Ghetto with Bronx Rigid fork. This light and stiff set allows him to perform tricks as easily as if on a BMX.
FREAKY
Uncompromised heavy duty MTB street machine for anything you can throw at it. If you are a grinding lover or you like big gaps from the stairs - this frame is for you. Freaky has a very short, compact geometry designed for 24” wheels but it will also take 26” wheels. Ready to use with BMX rear hub, pegs, rigid fork and BMX cranks. If you want it with brakes it has removable U-brake pivots. Made of butted, seamless Japanese Cr-Mo 4130 steel tubes. Heat treated dropouts, rear triangle, BB and head tube. Seat clamp integrated in the seat tube. Head tube for integrated headsets. Gyro tabs holes in the head tube. Custom dropouts. Removable U-brake pivots and cable hanger. GEOMETRY Top tube: 555mm Rear triangle: 365mm Head tube: 115mm Seat tube: 255mm BB height (80mm travel): +19mm BB height (rigid fork): +5mm WB (80mm travel): 985mm WB (rigid fork): 971mm HT angle (80mm travel): 70° HT angle (rigid fork): 72.5° Geometry calculated for the RS Pike/Argyle type forks: with 80mm travel (471mm height) and Bronx rigid fork (430mm height)
SPECIFICATION Dropouts: 110x14mm; BB: Spanish 68mm; Headsets: integrated 45°x45°; Seat post diam.: 25.4mm. Seat clamp: integrated; Size: 10”. Weight: 2.48kg. Recommended fork travel: 60-80mm or rigid fork.
BRONX II / BRONX
Lightweight MTB fork for 26” and 24” wheels made of triple butted Cr-Mo 4130 steel. Heat treated after welding. Steerer and legs machined inside for weight reduction. Dropouts for 10mm axle. With integrated crown race. Steerer with inner thread and threaded top cap for easy headsets assembling. Bronx II version comes with molded bottom section of the legs, modified butting and 5mm dropout. Height: 430mm. Steerer length: 180mm. Offset: 25mm. Weight: 1.07kg (Bronx II), 1.02kg (Bronx) - without top cap.
PUNCHER
Perfectly shaped fixie freestyle fork, which may be adapted also for MTB street bikes. Made of triple butted Cr-Mo 4130 steel heat treated after welding. Steerer and legs machined inside for weight reduction. Dropouts for 10mm axle. With integrated crown race. Steerer with inner thread and threaded top cap for easy headsets assembling. Height: 420mm. Steerer length: 190mm. Offset: 30mm. Weight: 1.03kg - without top cap.
