Dartmoor 2016 catalog - final edition

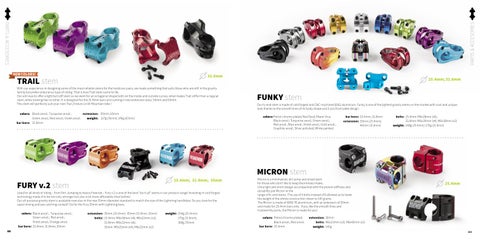

Page 45

PARTS & ACCESORIES

PARTS & ACCESORIES NEW COLORS!

31.8mm

TRAIL stem

With our experience in designing some of the most reliable stems for the hardcore users, we made something that suits those who are still in the gravity family but prefer endurance type of riding. That is how Trail stem came to life. Our aim was to offer a light but stiff stem so we went for an octagonal shape both on the inside and outside curves, what makes Trail stiffer than a regular stem, while looking like no other. It is designed for the 31.8mm bars and coming in two extension sizes: 50mm and 65mm. This stem will perfectly suit your next Trail, Enduro or All Mountain bike ! colors: Black anod.; Turquoise anod.; extension: 50mm; 65mm Green anod.; Red anod.; Violet anod. weight: 127g (50mm); 146g (65mm) bar bore: 31.8mm

Used for all kinds of riding – from Dirt Jumping to heavy Freeride – Fury v.2 is one of the best “do it all” stems in our product range! Investing in cold forged technology made it to be not only stronger but also a lot more affordable than before! Our all-purpose gravity stem is available now also in the new 35mm diameter standard to match the size of the Lightning handlebar. Do you look for the super strong and eye catching cockpit? Go for the Fury 35mm with Lightning bars. colors: Black anod.; Turquoise anod.; Green anod.; Red anod.; Violet anod.; Orange anod. bar bore: 25.4mm; 31.8mm; 35mm 88

extension: 35mm (25.4mm); 45mm (31.8mm, 35mm) bolts: 25.4mm: M6x18mm (x4); M6x22mm (x2); 31.8mm: M6x22mm (x6); 35mm: M5x25mm (x4); M6x22mm (x2)

FUNKY stem

Our hi-end stem is made of cold forged and CNC machined 6061 aluminium. Funky is one of the lightest gravity stems on the market with cool and unique look thanks to the smooth lines of its body shape and 2-pcs front plate design. colors: Petrol chrome plated; Red Devil; Miami Vice; Black anod.; Turquoise anod.; Green anod.; Red anod.; Blue anod.; Violet anod.; Gold anod.; Graphite anod.; Silver polished; White painted

25.4mm;  31.8mm;  35mm

FURY v.2 stem

25.4mm; 31.8mm

weight: 154g (25.4mm); 175g (31.8mm); 168g (35mm)

bar bore: 25.4mm; 31.8mm extension: 35mm (25.4mm); 40mm (31.8mm)

bolts: 25.4mm: M6x18mm (x6); 31.8mm: M6x20mm (x4); M6x18mm (x2) weight: 148g (25.4mm); 170g (31.8mm)

MICRON stem

Micron is a minimalistic dirt jump and street stem for those who don’t like to keep their knees intake. Ultra light and short design accompanied with the proven stiffness and durability put Micron in the range of hi-end stems. The use of 4 bolts instead of 6 allowed us to lower the weight of the whole construction down to 145 grams. The Micron is made of 6066-T6 aluminium, with an extension of 30mm and made for 25.4mm bars only. If you like the smooth lines and trustworthy parts, the Micron is made for you! colors: Petrol chrome plated; Black anod.; Red anod. bar bore: 25.4mm

25.4mm

extension: 30mm bolts: M6x22mm (x2); M6x42mm (x2) weight: 145g 89
