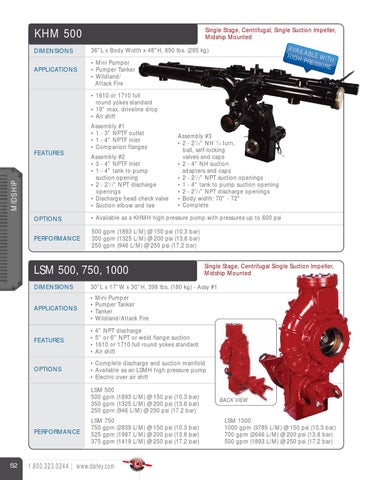

Single Stage, Centrifugal, Single Suction Impeller, Midship Mounted
KHM 500 DIMENSIONS APPLICATIONS
AVAI LA HIGH BLE WIT H PRES SURE
36"L x Body Width x 48"H, 650 lbs. (295 kg) • Mini Pumper • Pumper Tanker • Wildland/ Attack Fire • 1610 or 1710 full round yokes standard • 19" max. driveline drop • Air shift
MIDSHIP
FEATURES
Assembly #1 • 1 - 3" NPTF outlet • 1 - 4" NPTF inlet • Companion flanges Assembly #2 • 3 - 4" NPTF inlet • 1 - 4" tank to pump suction opening • 2 - 21/2" NPT discharge openings • Discharge head check valve • Suction elbow and tee
Assembly #3 • 2 - 21/2" NH 1/4 turn, ball, self-locking valves and caps • 2 - 4" NH suction adapters and caps • 2 - 21/2" NPT suction openings • 1 - 4" tank to pump suction opening • 2 - 21/2" NPT discharge openings • Body width: 70" - 72" • Complete
OPTIONS
• Available as a KHMH high pressure pump with pressures up to 600 psi
PERFORMANCE
500 gpm (1893 L/M) @ 150 psi (10.3 bar) 350 gpm (1325 L/M) @ 200 psi (13.8 bar) 250 gpm (946 L/M) @ 250 psi (17.2 bar)
LSM 500, 750, 1000 DIMENSIONS
30"L x 17"W x 30"H, 398 lbs. (180 kg) - Assy #1
APPLICATIONS
• Mini Pumper • Pumper Tanker • Tanker • Wildland/Attack Fire
FEATURES
• 4" NPT discharge • 5" or 6" NPT or weld flange suction • 1610 or 1710 full round yokes standard • Air shift
OPTIONS
• Complete discharge and suction manifold • Available as an LSMH high pressure pump • Electric over air shift LSM 500 500 gpm (1893 L/M) @ 150 psi (10.3 bar) 350 gpm (1325 L/M) @ 200 psi (13.8 bar) 250 gpm (946 L/M) @ 250 psi (17.2 bar)
PERFORMANCE
52
Single Stage, Centrifugal Single Suction Impeller, Midship Mounted
LSM 750 750 gpm (2839 L/M) @ 150 psi (10.3 bar) 525 gpm (1987 L/M) @ 200 psi (13.8 bar) 375 gpm (1419 L/M) @ 250 psi (17.2 bar)
1.800.323.0244 | www.darley.com
BACK VIEW
LSM 1000 1000 gpm (3785 L/M) @ 150 psi (10.3 bar) 700 gpm (2646 L/M) @ 200 psi (13.8 bar) 500 gpm (1893 L/M) @ 250 psi (17.2 bar)
