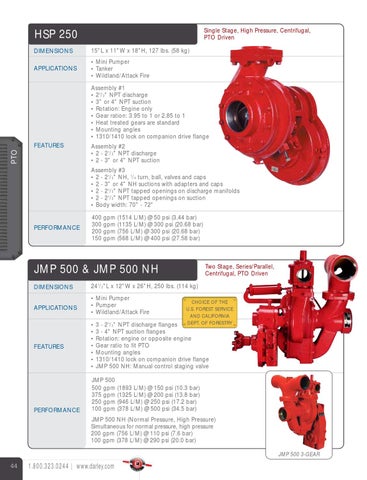

Single Stage, High Pressure, Centrifugal, PTO Driven
HSP 250 DIMENSIONS
15"L x 11"W x 18"H, 127 lbs. (58 kg)
APPLICATIONS
• Mini Pumper • Tanker • Wildland/Attack Fire Assembly #1 • 21/2" NPT discharge • 3" or 4" NPT suction • Rotation: Engine only • Gear ration: 3.95 to 1 or 2.85 to 1 • Heat treated gears are standard • Mounting angles • 1310/1410 lock on companion drive flange
PTO
FEATURES
Assembly #2 • 2 - 21/2" NPT discharge • 2 - 3" or 4" NPT suction Assembly #3 • 2 - 21/2" NH, 1/4 turn, ball, valves and caps • 2 - 3" or 4" NH suctions with adapters and caps • 2 - 21/2" NPT tapped openings on discharge manifolds • 2 - 21/2" NPT tapped openings on suction • Body width: 70" - 72"
PERFORMANCE
400 gpm (1514 L/M) @ 50 psi (3.44 bar) 300 gpm (1135 L/M) @ 300 psi (20.68 bar) 200 gpm (756 L/M) @ 300 psi (20.68 bar) 150 gpm (568 L/M) @ 400 psi (27.58 bar)
Two Stage, Series/Parallel, Centrifugal, PTO Driven
JMP 500 & JMP 500 NH DIMENSIONS
241/2"L x 12"W x 26"H, 250 lbs. (114 kg)
APPLICATIONS
• Mini Pumper • Pumper • Wildland/Attack Fire
FEATURES
• 3 - 21/2" NPT discharge flanges • 3 - 4" NPT suction flanges • Rotation: engine or opposite engine • Gear ratio to fit PTO • Mounting angles • 1310/1410 lock on companion drive flange • JMP 500 NH: Manual control staging valve
PERFORMANCE
CHOICE OF THE U.S. FOREST SERVICE AND CALIFORNIA DEPT. OF FORESTRY
JMP 500 500 gpm (1893 L/M) @ 150 psi (10.3 bar) 375 gpm (1325 L/M) @ 200 psi (13.8 bar) 250 gpm (946 L/M) @ 250 psi (17.2 bar) 100 gpm (378 L/M) @ 500 psi (34.5 bar) JMP 500 NH (Normal Pressure, High Pressure) Simultaneous for normal pressure, high pressure 200 gpm (756 L/M) @ 110 psi (7.6 bar) 100 gpm (378 L/M) @ 290 psi (20.0 bar) JMP 500 3-GEAR
