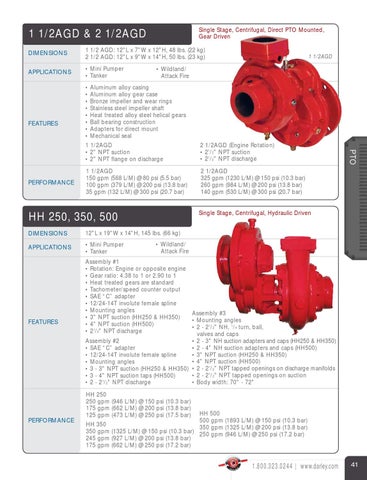

Single Stage, Centrifugal, Direct PTO Mounted, Gear Driven
1 1/2AGD & 2 1/2AGD DIMENSIONS
1 1/2 AGD: 12"L x 7"W x 12"H, 48 lbs. (22 kg) 2 1/2 AGD: 12"L x 9"W x 14"H, 50 lbs. (23 kg)
APPLICATIONS
• Mini Pumper • Tanker
FEATURES
• Wildland/ Attack Fire
• Aluminum alloy casing • Aluminum alloy gear case • Bronze impeller and wear rings • Stainless steel impeller shaft • Heat treated alloy steel helical gears • Ball bearing construction • Adapters for direct mount • Mechanical seal 1 1/2AGD • 2" NPT suction • 2" NPT flange on discharge
2 1/2AGD (Engine Rotation) • 21/2" NPT suction • 21/2" NPT discharge
1 1/2AGD 150 gpm (568 L/M) @ 80 psi (5.5 bar) 100 gpm (379 L/M) @ 200 psi (13.8 bar) 35 gpm (132 L/M) @ 300 psi (20.7 bar)
2 1/2AGD 325 gpm (1230 L/M) @ 150 psi (10.3 bar) 260 gpm (984 L/M) @ 200 psi (13.8 bar) 140 gpm (530 L/M) @ 300 psi (20.7 bar)
Single Stage, Centrifugal, Hydraulic Driven
HH 250, 350, 500 DIMENSIONS
12"L x 19"W x 14"H, 145 lbs. (66 kg)
APPLICATIONS
• Mini Pumper • Tanker
FEATURES
PERFORMANCE
PTO
PERFORMANCE
1 1/2AGD
• Wildland/ Attack Fire
Assembly #1 • Rotation: Engine or opposite engine • Gear ratio: 4.38 to 1 or 2.90 to 1 • Heat treated gears are standard • Tachometer/speed counter output • SAE “C” adapter • 12/24-14T involute female spline • Mounting angles • 3" NPT suction (HH250 & HH350) • 4" NPT suction (HH500) • 21/2" NPT discharge
Assembly #3 • Mounting angles • 2 - 21/2" NH, 1/4 turn, ball, valves and caps • 2 - 3" NH suction adapters and caps (HH250 & HH350) Assembly #2 • 2 - 4" NH suction adapters and caps (HH500) • SAE “C” adapter • 3" NPT suction (HH250 & HH350) • 12/24-14T involute female spline • 4" NPT suction (HH500) • Mounting angles • 3 - 3" NPT suction (HH250 & HH350) • 2 - 21/2" NPT tapped openings on discharge manifolds • 2 - 21/2" NPT tapped openings on suction • 3 - 4" NPT suction taps (HH500) • Body width: 70" - 72" • 2 - 21/2" NPT discharge HH 250 250 gpm (946 L/M) @ 150 psi (10.3 bar) 175 gpm (662 L/M) @ 200 psi (13.8 bar) 125 gpm (473 L/M) @ 250 psi (17.5 bar)
HH 500 500 gpm (1893 L/M) @ 150 psi (10.3 bar) HH 350 350 gpm (1325 L/M) @ 200 psi (13.8 bar) 350 gpm (1325 L/M) @ 150 psi (10.3 bar) 250 gpm (946 L/M) @ 250 psi (17.2 bar) 245 gpm (927 L/M) @ 200 psi (13.8 bar) 175 gpm (662 L/M) @ 250 psi (17.2 bar)
