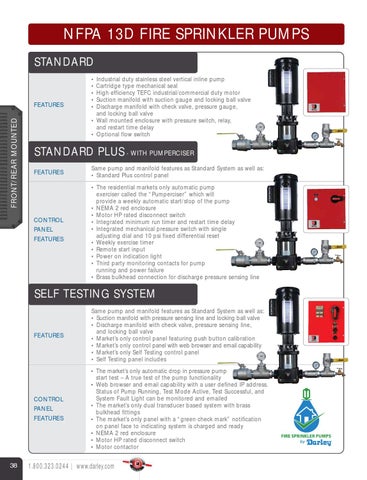

NFPA 13D FIRE SPRINKLER PUMPS STANDARD
FRONT/REAR MOUNTED
FEATURES
• Industrial duty stainless steel vertical inline pump • Cartridge type mechanical seal • High efficiency TEFC industrial/commercial duty motor • Suction manifold with suction gauge and locking ball valve • Discharge manifold with check valve, pressure gauge, and locking ball valve • Wall mounted enclosure with pressure switch, relay, and restart time delay • Optional flow switch
STANDARD PLUS - WITH PUMPERCISER FEATURES
Same pump and manifold features as Standard System as well as: • Standard Plus control panel
CONTROL PANEL FEATURES
• The residential markets only automatic pump exerciser called the “Pumperciser” which will provide a weekly automatic start/stop of the pump • NEMA 2 red enclosure • Motor HP rated disconnect switch • Integrated minimum run timer and restart time delay • Integrated mechanical pressure switch with single adjusting dial and 10 psi fixed differential reset • Weekly exercise timer • Remote start input • Power on indication light • Third party monitoring contacts for pump running and power failure • Brass bulkhead connection for discharge pressure sensing line
SELF TESTING SYSTEM
38
FEATURES
Same pump and manifold features as Standard System as well as: • Suction manifold with pressure sensing line and locking ball valve • Discharge manifold with check valve, pressure sensing line, and locking ball valve • Market’s only control panel featuring push button calibration • Market’s only control panel with web browser and email capability • Market’s only Self Testing control panel • Self Testing panel includes
CONTROL PANEL FEATURES
• The market’s only automatic drop in pressure pump start test – A true test of the pump functionality • Web browser and email capability with a user defined IP address. Status of Pump Running, Test Mode Active, Test Successful, and System Fault Light can be monitored and emailed • The market’s only dual transducer based system with brass bulkhead fittings • The market’s only panel with a “green check mark” notification on panel face to indicating system is charged and ready • NEMA 2 red enclosure • Motor HP rated disconnect switch • Motor contactor
