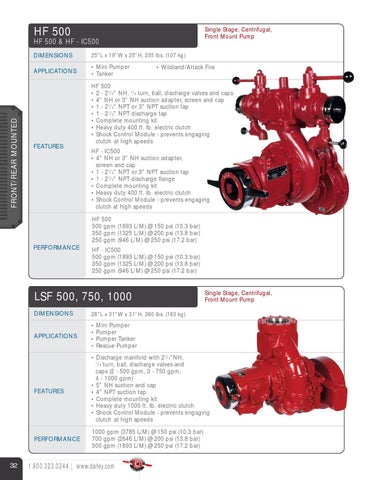

HF 500
Single Stage, Centrifugal, Front Mount Pump
FRONT/REAR MOUNTED
HF 500 & HF - IC500 DIMENSIONS
25"L x 19"W x 25"H, 235 lbs. (107 kg)
APPLICATIONS
• Mini Pumper • Tanker
FEATURES
• Wildland/Attack Fire
HF 500 • 2 - 21/2" NH, 1/4 turn, ball, discharge valves and caps • 4" NH or 3" NH suction adapter, screen and cap • 1 - 21/2" NPT or 3" NPT suction tap • 1 - 21/2" NPT discharge tap • Complete mounting kit • Heavy duty 400 ft. lb. electric clutch • Shock Control Module - prevents engaging clutch at high speeds HF - IC500 • 4" NH or 3" NH suction adapter, screen and cap • 1 - 21/2" NPT or 3" NPT suction tap • 1 - 21/2" NPT discharge flange • Complete mounting kit • Heavy duty 400 ft. lb. electric clutch • Shock Control Module - prevents engaging clutch at high speeds HF 500 500 gpm (1893 L/M) @ 150 psi (10.3 bar) 350 gpm (1325 L/M) @ 200 psi (13.8 bar) 250 gpm (946 L/M) @ 250 psi (17.2 bar)
PERFORMANCE
HF - IC500 500 gpm (1893 L/M) @ 150 psi (10.3 bar) 350 gpm (1325 L/M) @ 200 psi (13.8 bar) 250 gpm (946 L/M) @ 250 psi (17.2 bar)
LSF 500, 750, 1000
32
Single Stage, Centrifugal, Front Mount Pump
DIMENSIONS
28"L x 31"W x 31"H, 360 lbs. (163 kg)
APPLICATIONS
• Mini Pumper • Pumper • Pumper Tanker • Rescue Pumper
FEATURES
• Discharge manifold with 21/2"NH, 1 /4 turn, ball, discharge valves and caps (2 - 500 gpm, 3 - 750 gpm, 4 - 1000 gpm) • 5" NH suction and cap • 4" NPT suction tap • Complete mounting kit • Heavy duty 1000 ft. lb. electric clutch • Shock Control Module - prevents engaging clutch at high speeds
PERFORMANCE
1000 gpm (3785 L/M) @ 150 psi (10.3 bar) 700 gpm (2646 L/M) @ 200 psi (13.8 bar) 500 gpm (1893 L/M) @ 250 psi (17.2 bar)
