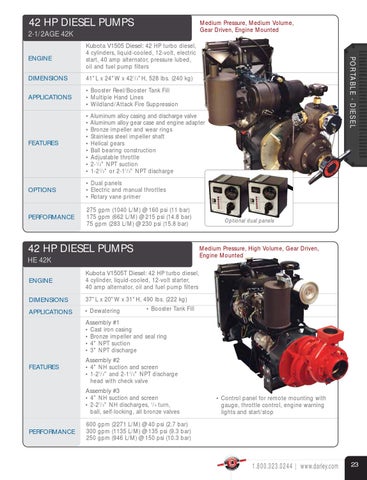

42 HP DIESEL PUMPS
Medium Pressure, Medium Volume, Gear Driven, Engine Mounted
2-1/2AGE 42K
DIMENSIONS
41"L x 24"W x 421/2"H, 528 lbs. (240 kg)
APPLICATIONS
• Booster Reel/Booster Tank Fill • Multiple Hand Lines • Wildland/Attack Fire Suppression
FEATURES
• Aluminum alloy casing and discharge valve • Aluminum alloy gear case and engine adapter • Bronze impeller and wear rings • Stainless steel impeller shaft • Helical gears • Ball bearing construction • Adjustable throttle • 2-1/2" NPT suction • 1-21/2" or 2-11/2" NPT discharge
OPTIONS
• Dual panels • Electric and manual throttles • Rotary vane primer
PERFORMANCE
275 gpm (1040 L/M) @ 160 psi (11 bar) 175 gpm (662 L/M) @ 215 psi (14.8 bar) 75 gpm (283 L/M) @ 230 psi (15.8 bar)
42 HP DIESEL PUMPS
PORTABLE - DIESEL
ENGINE
Kubota V1505 Diesel: 42 HP turbo diesel, 4 cylinders, liquid-cooled, 12-volt, electric start, 40 amp alternator, pressure lubed, oil and fuel pump filters
Optional dual panels
Medium Pressure, High Volume, Gear Driven, Engine Mounted
HE 42K ENGINE
Kubota V1505T Diesel: 42 HP turbo diesel, 4 cylinder, liquid-cooled, 12-volt starter, 40 amp alternator, oil and fuel pump filters
DIMENSIONS
37"L x 20"W x 31"H, 490 lbs. (222 kg)
APPLICATIONS
• Dewatering
• Booster Tank Fill
Assembly #1 • Cast iron casing • Bronze impeller and seal ring • 4" NPT suction • 3" NPT discharge
FEATURES
Assembly #2 • 4" NH suction and screen • 1-21/2" and 2-11/2" NPT discharge head with check valve Assembly #3 • 4" NH suction and screen • 2-21/2" NH discharges, 1/4 turn, ball, self-locking, all bronze valves
PERFORMANCE
• Control panel for remote mounting with gauge, throttle control, engine warning lights and start/stop
600 gpm (2271 L/M) @ 40 psi (2.7 bar) 300 gpm (1135 L/M) @ 135 psi (9.3 bar) 250 gpm (946 L/M) @ 150 psi (10.3 bar)
